Add base support for converting catalogs that include multiple languages #47

ethan-kusters · 2021-12-01T03:22:27Z

Bug/issue #, if applicable: rdar://84169407

Summary

Adds base support for converting DocC Catalogs that include multiple languages by expanding symbol semantic models to hold language-specific variants.

This builds on previous work landed in:

Dependencies

None.

Testing

Build documentation for the included test bundle at Tests/SwiftDocCTests/Test\ Bundles/MixedLanguageFramework.docc and confirm that output is expected.

Steps:

export DOCC_HTML_DIR=/path/to/recent/swift-docc-render-artifact

From the root of this repository:

swift run docc preview Tests/SwiftDocCTests/Test\ Bundles/MixedLanguageFramework.docc \
    --enable-experimental-objective-c-support \
    --index

Confirm that mixed-language content renders as expected.

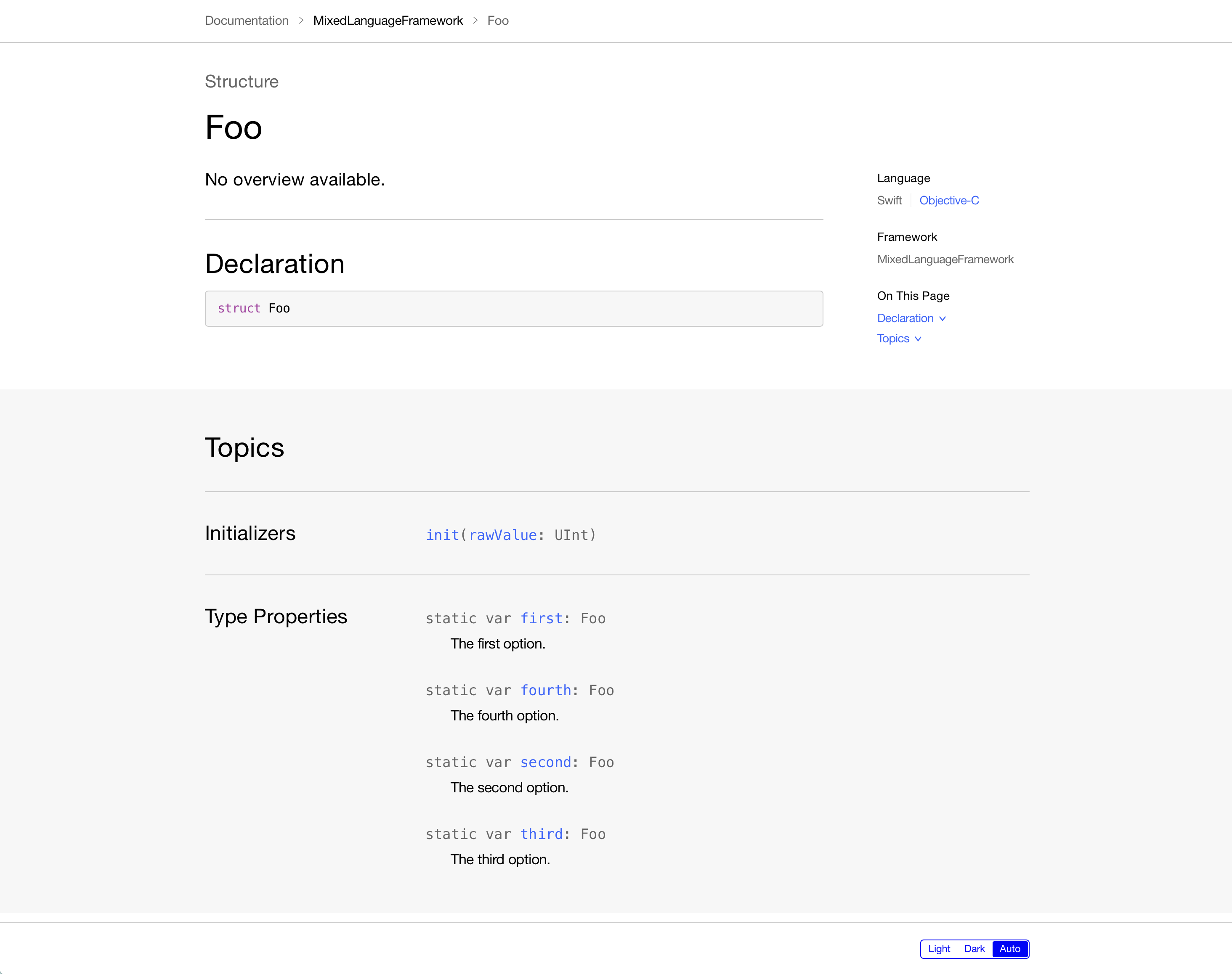

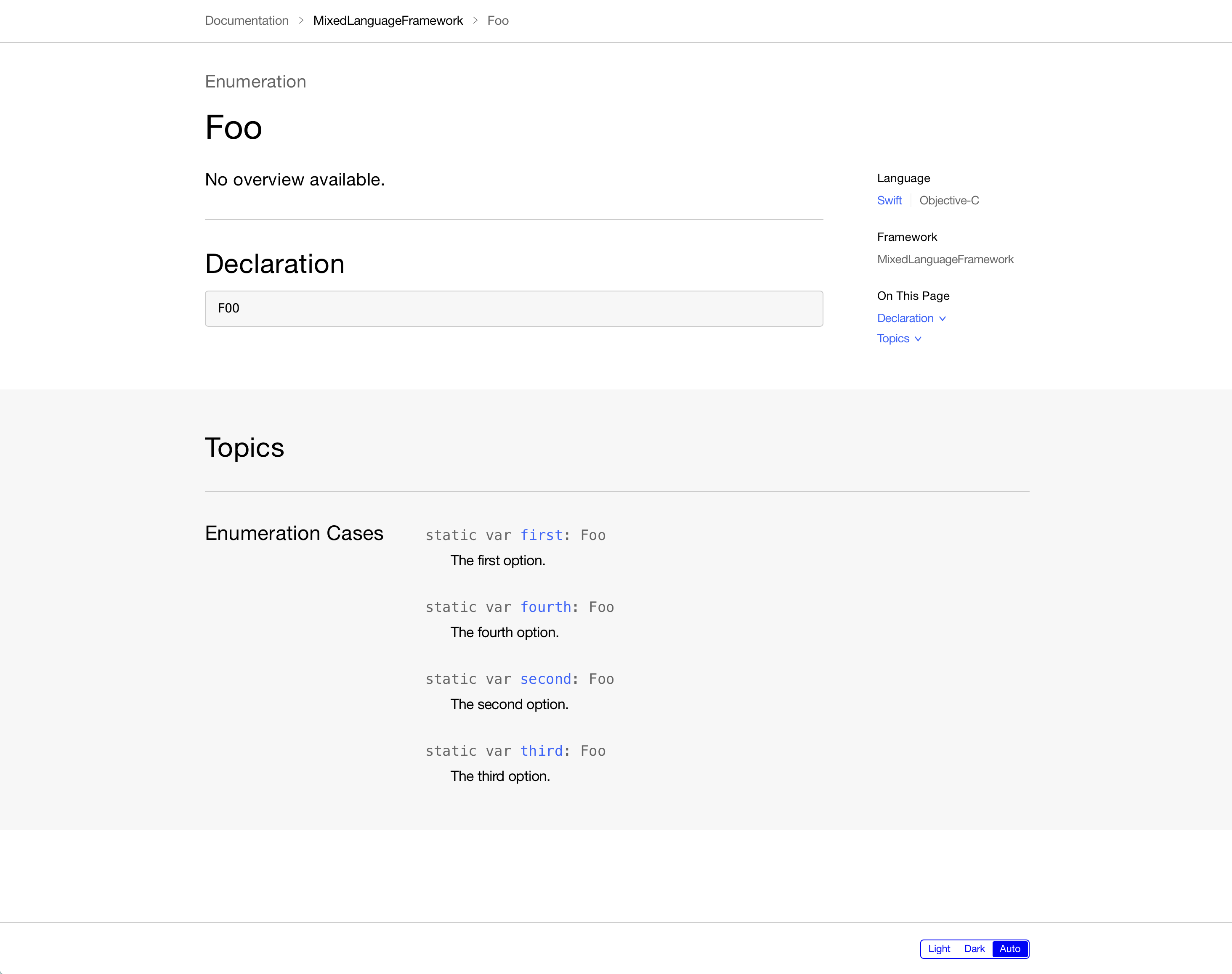

Swift	Objective-C

Checklist

Make sure you check off the following items. If they cannot be completed, provide a reason.

Added tests
Ran the ./bin/test script and it succeeded
Updated documentation if necessary

ethan-kusters · 2021-12-03T00:14:51Z

@swift-ci please test

franklinsch

This is looking great! Appreciate the refactoring along the way and testing!

franklinsch · 2021-12-03T11:58:48Z

Sources/SwiftDocC/Converter/TopicRenderReferenceEncoder.swift

                    } else {
-                        value = try! encoder.encode(CodableRenderReference.init(reference))
-                        referenceCache.sync({ $0[cacheKeyWithConformance] = value })
+                        encoderUserInfoVariantOverrides.values.removeAll()


Not sure I follow this, why do we need to clear this property?

Ah right- so we only want the variant overrides that are collected while encoding that single reference. Since the cache contains the reference and the overrides for that reference.

But this is definitely confusing- I'll add a comment.

Addressed here: 5ef11e1.

Thanks!

franklinsch · 2021-12-03T12:02:04Z

Sources/SwiftDocC/Indexing/Navigator/NavigatorIndex.swift

+
+            // We only want to check for an objective-c variant
+            // if we're currently indexing a swift variant.
+            guard language == .swift else {


Is this guard needed? In what cases do we have render nodes that have Objective-C variants that we don't want to index?

It is... I'd definitely be open to suggestions for how to improve this but otherwise we end up in an infinite loop since an objective-c symbol has an objective-c variant.

franklinsch · 2021-12-03T12:03:11Z

Sources/SwiftDocC/Infrastructure/DocumentationContext.swift

-                    return directive
-                }
-                diagnosticEngine.emit(Problem(diagnostic: Diagnostic(source: found.source, severity: .warning, range: directive?.range, identifier: "org.swift.docc.DeprecationSummaryForAvailableSymbol", summary: "\(symbol.absolutePath.singleQuoted) isn't unconditionally deprecated"), possibleSolutions: []))
+        let symbol = updatedNode.symbol


Should we be using the unifiedSymbol here instead?

Addressed here: e03f383.

Thanks!

franklinsch · 2021-12-03T12:04:22Z

Sources/SwiftDocC/Infrastructure/DocumentationContext.swift

+                let moduleInterfaceLanguages: Set<SourceLanguage>
+                if FeatureFlags.current.isExperimentalObjectiveCSupportEnabled {
+                    // Infer the module's interface languages from the interface
+                    // languages of the first symbol in the symbol graph.


Is this comment accurate? Also, do we have a ticket we can link to for SymbolKit to provide an API that gives this information?

You're right- that's out-of-date. I've updated it and linked a ticket.

Resolved here: beb3a14.

franklinsch · 2021-12-03T12:06:03Z

Sources/SwiftDocC/Infrastructure/Symbol Graph/SymbolReference.swift

    ///
    /// - Parameters:
    ///   - pathComponents: The relative path components from the module or framework to the symbol.
    ///   - interfaceLanguage: The source language of the symbol.


This needs updating

Thanks!

Addressed here: 5c8b48d.

franklinsch · 2021-12-03T12:31:08Z

Sources/SwiftDocC/Semantics/Symbol/Symbol.swift

    }
+
+    /// Returns the primary symbol to use as documentation source.
+    var documentedSymbol: SymbolGraph.Symbol? {


This API seems a bit odd to me. If it's the doc comment we're interested in, should the API not just return the doc comment rather than the whole symbol?

Generally this was just what caused the least code churn. But I think this API makes sense long-term as well. There are cases when we need all the metadata that comes with a symbol, but specifically the documented one.

For example, we might want to attach a diagnostic to the documented version of a symbol and needs it source location.

franklinsch · 2021-12-03T12:33:06Z

... Bundles/MixedLanguageFramework.docc/symbol-graphs/clang/MixedLanguageFramework.symbols.json

+      "minor" : 5,
+      "patch" : 3
+    },
+    "generator" : "SymbolKit"


Nit: this should probably be clang

franklinsch · 2021-12-03T12:34:50Z

Tests/SwiftDocCTests/Utility/ExperimentalObjectiveCTestCase.swift

+
+/// A test case that enables the experimental Objective-C support feature flag
+/// before running.
+class ExperimentalObjectiveCTestCase: XCTestCase {


franklinsch · 2021-12-03T12:35:51Z

Tests/SwiftDocCTests/Utility/ExperimentalObjectiveCTestCase.swift

+/// before running.
+class ExperimentalObjectiveCTestCase: XCTestCase {
+    override func setUp() {
+        enableFeatureFlag(\.isExperimentalObjectiveCSupportEnabled)


We should generally call super.setUp() here in case the base class has some set up behavior (although I doubt XCTestCase does)

Good call- 92935cb.

franklinsch · 2021-12-03T12:36:42Z

... Bundles/MixedLanguageFramework.docc/symbol-graphs/clang/MixedLanguageFramework.symbols.json

+      "minor" : 5,
+      "patch" : 3
+    },
+    "generator" : "SymbolKit"


ethan-kusters · 2021-12-03T20:02:25Z

@swift-ci please test

ethan-kusters · 2021-12-08T23:45:20Z

We were initially seeing a significant performance regression in this PR but @franklinsch and I have found some other areas of the codebase that could be optimized to negate the regression.

We're now seeing a significant performance improvement of around 20%.

TestFramework-5.json
+-----------------------------------------------------------------------------------------------------+
| Metric                                   | Change     | Before               | After                |
+-----------------------------------------------------------------------------------------------------+
| Compiled output size (MB)                | no change  | 57.37                | 57.37                |
| Duration for 'bundle-registration' (sec) | -21.40%    | 3.89                 | 3.06                 |
| Duration for 'convert-action' (sec)      | -17.24%    | 4.96                 | 4.11                 |
| Peak memory footprint (MB)               | -8.39%     | 221.56               | 202.97               |
| Topic Anchor Checksum                    | no change  | 65d4ff3050cd1106a21b | 65d4ff3050cd1106a21b |
| Topic Graph Checksum                     | no change  | 0a64c740a2ed5a246836 | 0a64c740a2ed5a246836 |
+------------------------------------------------------------------------------------------


TestFramework-10.json
+-----------------------------------------------------------------------------------------------------+
| Metric                                   | Change     | Before               | After                |
+-----------------------------------------------------------------------------------------------------+
| Compiled output size (MB)                | no change  | 114.71               | 114.71               |
| Duration for 'bundle-registration' (sec) | -21.25%    | 7.81                 | 6.15                 |
| Duration for 'convert-action' (sec)      | -16.63%    | 9.96                 | 8.30                 |
| Peak memory footprint (MB)               | -8.02%     | 385.14               | 354.24               |
| Topic Anchor Checksum                    | no change  | c8f03d4e81da8e3b6d7f | c8f03d4e81da8e3b6d7f |
| Topic Graph Checksum                     | no change  | edce22bce4f8de475a5e | edce22bce4f8de475a5e |
+-----------------------------------------------------------------------------------------------------+

TestFramework-25.json
+-----------------------------------------------------------------------------------------------------+
| Metric                                   | Change     | Before               | After                |
+-----------------------------------------------------------------------------------------------------+
| Compiled output size (MB)                | no change  | 287.64               | 287.64               |
| Duration for 'bundle-registration' (sec) | -20.37%    | 19.81                | 15.77                |
| Duration for 'convert-action' (sec)      | -17.11%    | 25.92                | 21.48                |
| Peak memory footprint (MB)               | -4.52%     | 880.44               | 840.62               |
| Topic Anchor Checksum                    | no change  | 9a675b9ad6d69f8b7f0c | 9a675b9ad6d69f8b7f0c |
| Topic Graph Checksum                     | no change  | 665713509084b5131a37 | 665713509084b5131a37 |
+-----------------------------------------------------------------------------------------------------+

TestFramework-50.json
+-----------------------------------------------------------------------------------------------------+
| Metric                                   | Change     | Before               | After                |
+-----------------------------------------------------------------------------------------------------+
| Compiled output size (MB)                | no change  | 579.70               | 579.70               |
| Duration for 'bundle-registration' (sec) | -21.23%    | 39.75                | 31.31                |
| Duration for 'convert-action' (sec)      | -16.78%    | 51.46                | 42.82                |
| Peak memory footprint (MB)               | -7.88%     | 1678.05              | 1545.80              |
| Topic Anchor Checksum                    | no change  | 08d0a84bec913460905f | 08d0a84bec913460905f |
| Topic Graph Checksum                     | no change  | 74d25c4f1ee185ad5676 | 74d25c4f1ee185ad5676 |
+-----------------------------------------------------------------------------------------------------+

The majority of this benefit comes from implementing copy-on-write semantics for the ResolvedTopicReference type: 9d4106b.

Lazy initialization of the expensive URL property within ResolvedTopicReference added another slight performance gain: 3f1b105

ethan-kusters · 2021-12-08T23:46:11Z

@swift-ci please test

franklinsch

This looks great! I think we should reconsider making ResolvedTopicReference immutable though, and split out further changes in a separate PR.

franklinsch · 2021-12-09T11:09:39Z

Sources/SwiftDocC/Model/Identifier.swift

    /// The identifier of the bundle that owns this documentation topic.
    public var bundleIdentifier: String {
-        didSet { updateURL() }
+        return _storage.bundleIdentifier


What performance gain do we get by making this type immutable? Thinking about this more, I prefer the flexibility of keeping this type mutable. It allows for clients to easily mutate properties of this type without calling the initializer and configure all the properties again. If making it immutable provides a significant performance gain, I think we should look at alternatives to improve performance in the future. What do you think?

Also, as it stands, this type is not copy-on-write, because it cannot be written to.

Thinking about this more, I prefer the flexibility of keeping this type mutable. It allows for clients to easily mutate properties of this type without calling the initializer and configure all the properties again.

I think this is a good point and in general I agree. However, because ResolvedTopicReference is effectively a wrapper around URL I think it's important to expose a similar API to URL and, thus, communicate with clients that doing something like adding a path component is an expensive operation.

Prior to this, we exposed the pathComponents property directly and then monitored it to recalculate the URL when it was modified. This is likely surprising to clients who would not expect the direct modification of an array of strings to be an expensive operation. Limiting clients to using the addingPathComponent(_:) style api communicates better what's actually happening here.

I've added further documentation to ResolvedTopicReference in a commit here (5c78d85) to clarify this.

That's a great argument. The fact that it's a wrapper around URL, it makes sense to convey similar characteristics to URL, which includes immutability. The alternative here would've been to keep it mutable and document the properties that incur a performance cost when written to, but I do prefer the immutable approach now. Thanks for adding the doc comment!

franklinsch · 2021-12-09T11:16:13Z

Sources/SwiftDocC/Model/Identifier.swift

    }

    public init(bundleIdentifier: String, path: String, fragment: String? = nil, sourceLanguages: Set<SourceLanguage>) {
+        self.init(


Beyond the copy-on-write change, which by itself provides a net gain in performance, I would suggest keeping the changes in this type to separate PR to manage risk (e.g., if we need to revert this PR for whatever reason, the additional improvements would not be reverted).

This is a good point. I've rebased the commits in this PR to 5 isolated commits and will plan on a rebase and merge instead of a squash so that we can revert individual parts of this PR if necessary.

Adds base support for converting DocC Catalogs that include multiple languages by expanding symbol semantic models to hold language-specific variants. Resolves rdar://84169407 Co-authored-by: Franklin Schrans <[email protected]>

We add ResolvedTopicReferences to the cache when initializing a new reference so we don't need these additional calls.

Co-authored-by: Franklin Schrans <[email protected]>

We don't always use the URL property on a resolvedtopicreference and its expensive to compute, so it makes sense to make this a lazy initialization.

Because `urlReadablePath` was always call in the topic reference's initializer, when adding and removing path components, we were performing duplicate work. This adds a new private initializer that skips the `urlReadablePath` call when we know we already have an escaped path.

ethan-kusters · 2021-12-09T18:20:37Z

@swift-ci please test
