[SPARK-25566][SPARK-25567][WEBUI][SQL]Support pagination for SQL tab to avoid OOM #22645

shahidki31 · 2018-10-05T17:45:11Z

What changes were proposed in this pull request?

Currently SQL tab in the WEBUI doesn't support pagination. Because of that following issues are happening.

For large number of executions, SQL page is throwing OOM exception (around 40,000)
For large number of executions, loading SQL page is taking time.
Difficult to analyse the execution table for large number of execution.
[Note: spark.sql.ui.retainedExecutions = 50000]

All the tabs, Jobs, Stages etc. supports pagination. So, to make it consistent with other tabs
SQL tab also should support pagination.

I have followed the similar flow of the pagination code in the Jobs and Stages page for SQL page.
Also, this patch doesn't make any behavior change for the SQL tab except the pagination support.

How was this patch tested?

bin/spark-shell --conf spark.sql.ui.retainedExecutions=50000
Run 50,000 sql queries.
Before this PR

After this PR

Loading of the page is faster, and OOM issue doesn't happen.

[Spark Job History] SQL UI Page does not support Pagination

shahidki31 · 2018-10-05T18:22:43Z

cc @vanzin @srowen @cloud-fan @dongjoon-hyun . Kindly review the PR.

shahidki31 · 2018-10-06T04:17:44Z

Test step to reproduce OOM without the PR.

bin/spark-shell --conf spark.sql.ui.retainedExecutions=50000
for (i <- 0 until 50000) {
val df = Seq(
(1, 1),
(2, 2)
).toDF()
df.collect()

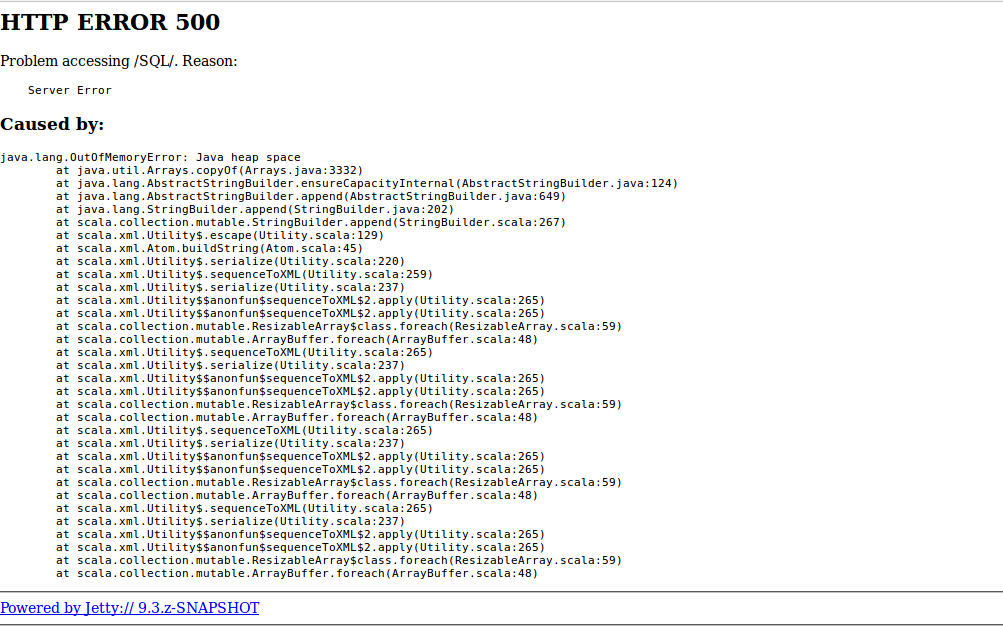

Without the PR:

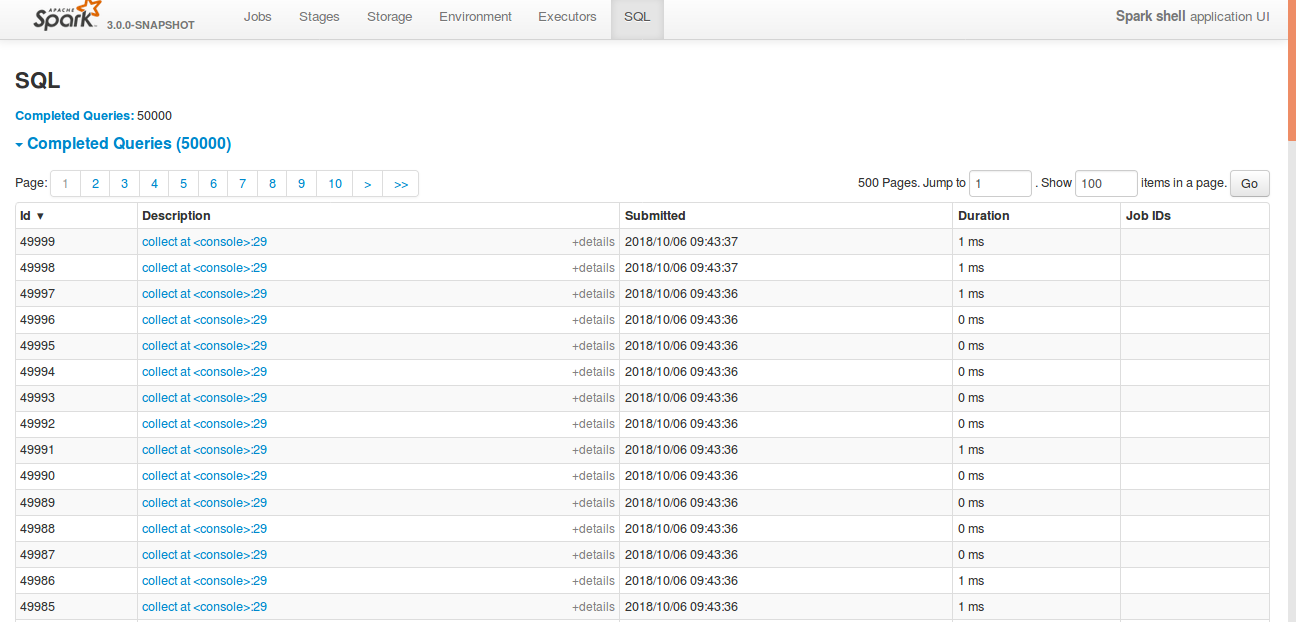

After fix:

core/src/main/scala/org/apache/spark/ui/PagedTable.scala

… with intercept with L1 regularization 1 min 10 sec

srowen · 2018-10-06T17:06:35Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

 import org.apache.spark.JobExecutionStatus
 import org.apache.spark.internal.Logging
-import org.apache.spark.ui.{UIUtils, WebUIPage}
+import org.apache.spark.ui._


Nit: can we avoid wildcard imports? we usually avoid them unless there are a very large number of classes to import

Yes. done. Thanks

srowen · 2018-10-06T17:08:04Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

+    val executionPrevPageSize = Option(parameterExecutionPrevPageSize).map(_.toInt).
+      getOrElse(executionPageSize)
+
+    val page: Int = {


Trivial nit: you don't need the type here or an extra block

Done. Thanks

srowen · 2018-10-06T17:14:04Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Can this be private? and how about using interpolation for the whole thing?

Done. Thanks

srowen · 2018-10-06T17:14:22Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Here and below, how about interpolation consistently?

Done. Thanks

srowen · 2018-10-06T17:15:13Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

This might be worth using case expressions to clarify what _3 and _1 are.

Thanks. Done.

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

srowen · 2018-10-06T17:16:57Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Nit: pull this onto previous line? the indent is odd, at least

Done. Thanks.

srowen · 2018-10-06T17:17:06Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

I believe this shouldn't be indented more

Yes. I have used a different scalastyle and checkstyle xml in IJ it seems.

srowen · 2018-10-06T17:18:12Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Same, here and around here do you really want to filter first instead of flatMap?

Thanks. I have modified using filter

shahidki31 · 2018-10-06T20:03:07Z

Thank you @srowen for the review. I have addressed the comments.

srowen · 2018-10-06T20:29:17Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

This might be a good place to wrap these to line up the elements in the Seq, one one each line (?) to make it easier to read its contents. They all seem to have an empty string as the second element? can it be removed or did I overlook something? Also you don't need the type here.

Yes. I have modified based on your suggestions. Thanks.

srowen · 2018-10-06T20:29:26Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Nit: pull this onto previous line

Done. Thanks

srowen · 2018-10-06T20:29:37Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

Nit: space after if. Really, maybe just use require

Done. used require. Thanks

srowen · 2018-10-06T20:30:24Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

.map { case (title, _, _) => title }?

Updated. Thanks.

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

shahidki31 · 2018-10-06T22:05:51Z

Thank you @srowen , I have modified the code based on your suggestions.

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

shahidki31 · 2018-10-08T18:26:44Z

Hi @srowen , There is one behavior change this PR introduces, which is correct. Sorting Job Ids in the previous versions of spark was not proper. After the PR the sorting is proper.

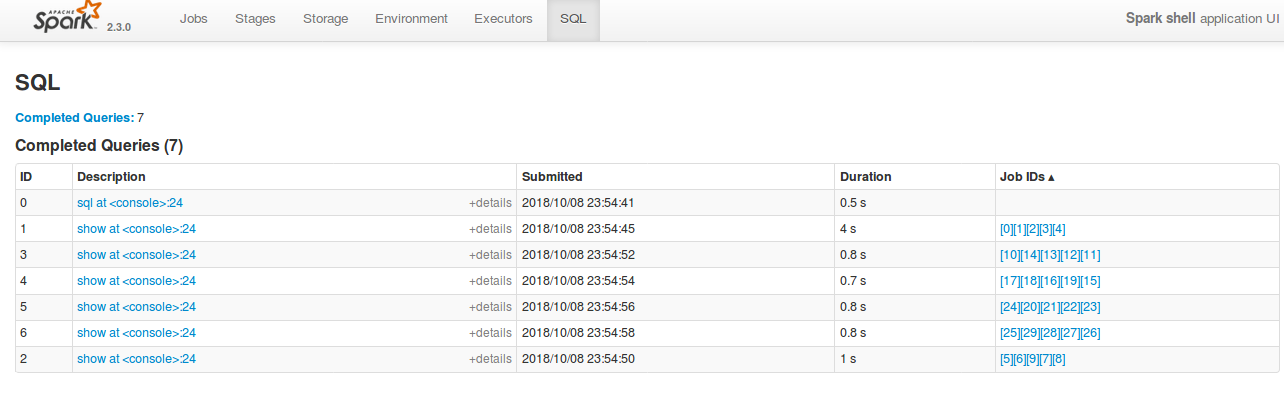

Previous versions of spark:

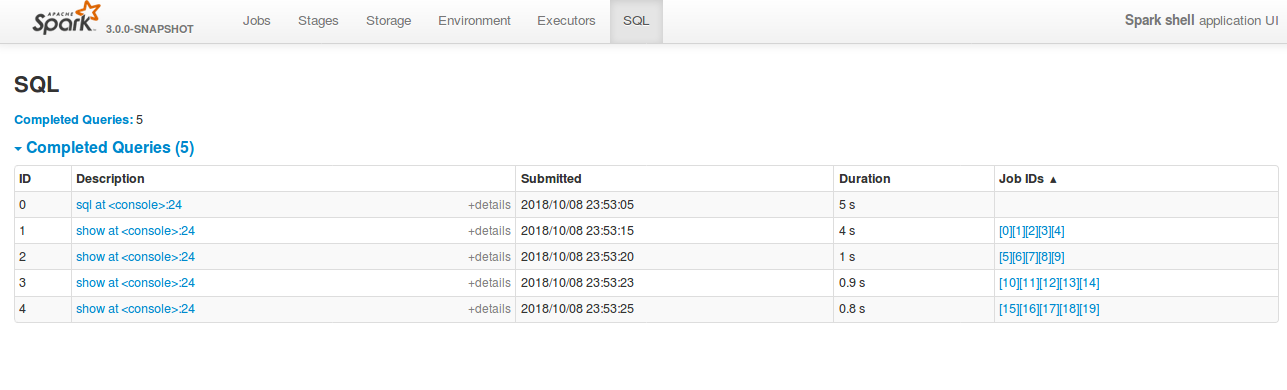

After the PR:

I have updated the code accordingly.

felixcheung · 2018-10-09T06:12:37Z

ok to test

SparkQA · 2018-10-09T06:14:52Z

Test build #97144 has finished for PR 22645 at commit e6af675.

This patch fails Scala style tests.
This patch merges cleanly.
This patch adds no public classes.

felixcheung · 2018-10-09T06:20:59Z

@shahidki31 ^^

shahidki31 · 2018-10-09T06:46:16Z

Hi @felixcheung , I will update the code

shahidki31 · 2018-10-09T07:33:05Z

@felixcheung I build locally, Now scalastyle issue is not happening. kindly re-trigger the PR builder.

SparkQA · 2018-10-09T10:50:02Z

Test build #97146 has finished for PR 22645 at commit 2b5a724.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

shahidki31 · 2018-10-09T11:35:59Z

@felixcheung It is a random failure. Could you please re-trigger the test. Thanks
Please refer:
https://issues.apache.org/jira/browse/SPARK-23622

SparkQA · 2018-10-09T18:39:57Z

Test build #4361 has finished for PR 22645 at commit 2b5a724.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

srowen · 2018-10-12T17:37:50Z

Merged to master

shahidki31 · 2018-10-12T17:55:37Z

Thanks a lot @srowen

cloud-fan · 2018-10-13T05:53:29Z

I found the UI patches are very hard to review, because we embed HTML/Javascript in Scala code. Is there a plan to rewrite the Spark UI with some modern frontend frameworks?

shahidki31 · 2018-10-13T06:49:21Z

Hi @cloud-fan , Since other webui pages like jobs, stages, tasks etc. embed the javascript code in scala code, that is why I followed the same. It would be great if we rewrite the spark UI with some modern front end frameworks.

Also, after this PR, loading time of the SQL page improved significantly. earlier loading 55,000 queries sql page took ~4.34 mins from the history server, but after the PR took only ~4 sec.
