[SPARK-15373][WEB UI] Spark UI should show consistent timezones. #13158

dongjoon-hyun · 2016-05-18T00:30:38Z

What changes were proposed in this pull request?

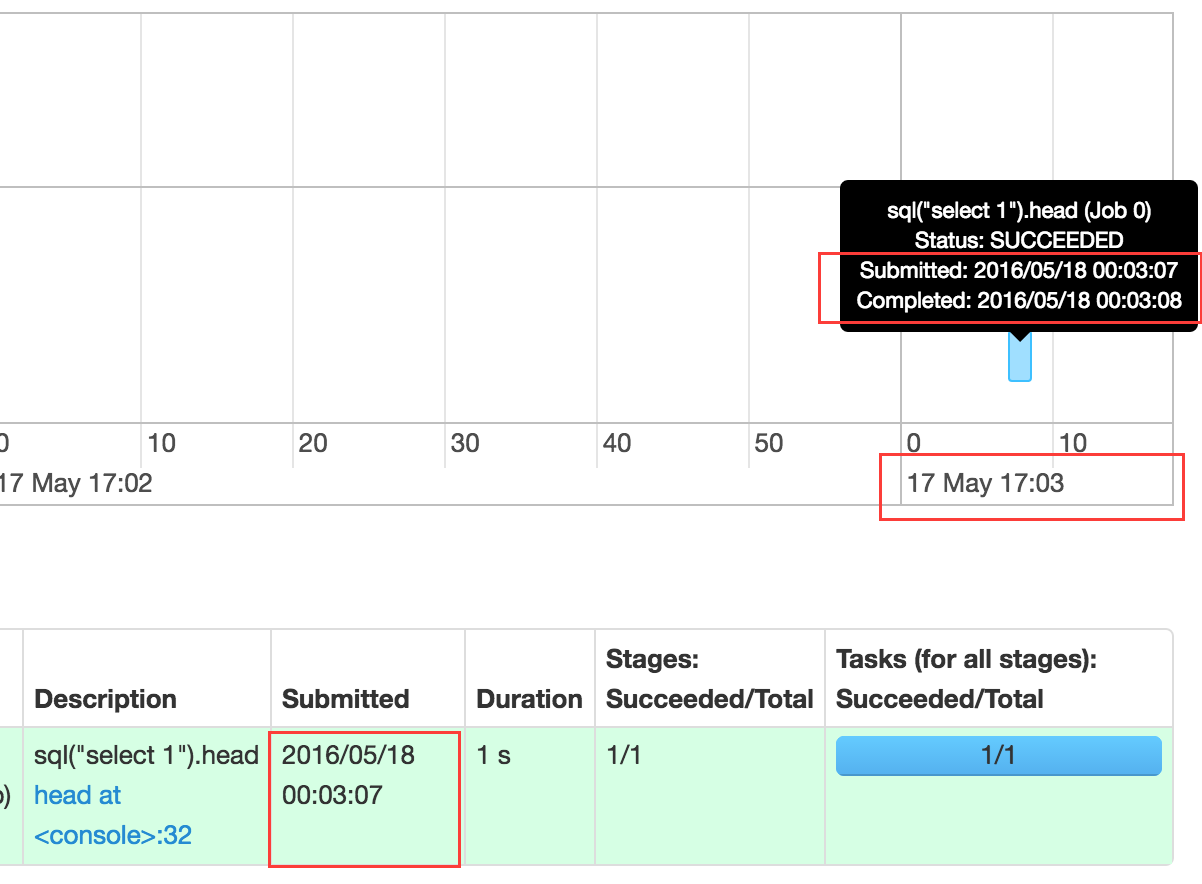

Currently, SparkUI shows two timezones in a single page when the timezone of browser is different from the server JVM timezone. The following is an example on Databricks CE which uses 'Etc/UTC' timezone.

The time of submitted column of list and pop-up description shows 2016/05/18 00:03:07
The time of timeline chart shows 2016/05/17 17:03:07.

This PR fixes the timeline chart to use the same timezone by the followings.

Upgrade vis from 3.9.0(2015-01-16) to 4.16.1(2016-04-18)
Override moment of vis to get offset
Update AllJobsPage, JobPage, and StagePage.

How was this patch tested?

Manual. Run the following command and see the Spark UI's event timelines.

$ SPARK_SUBMIT_OPTS="-Dscala.usejavacp=true -Duser.timezone=Etc/UTC" bin/spark-submit --class org.apache.spark.repl.Main
...
scala> sql("select 1").head

dongjoon-hyun · 2016-05-18T00:32:03Z

cc @davies

SparkQA · 2016-05-18T02:28:12Z

Test build #58729 has finished for PR 13158 at commit d1bdb32.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

davies · 2016-05-18T05:51:19Z

cc @andrewor14 @zsxwing

srowen · 2016-05-18T08:53:19Z

core/src/main/scala/org/apache/spark/ui/jobs/AllJobsPage.scala

I think this is what TimeZone.getDefault does, and it takes care of a few other details

Thank you for review, @srowen . I'll replace that.

dongjoon-hyun · 2016-05-18T09:47:31Z

@srowen . I updated the PR to use TimeZone.getDefault(). Thank you again.

srowen · 2016-05-18T09:49:54Z

core/src/main/scala/org/apache/spark/ui/jobs/AllJobsPage.scala

How about getRawOffset here? I think that's what you are looking for?

Ur, I think you might miss my previous comment about this . Or, did I really miss something?

Since getRawOffset does not consider Daylight Saving Time, I needed to use the above.

For example, the second one is correct.

scala> java.util.TimeZone.getTimeZone("America/New_York").getRawOffset() res0: Int = -18000000 scala> java.util.TimeZone.getTimeZone("America/New_York").getOffset(System.currentTimeMillis) res1: Int = -14400000

Oh I did miss that yet. THis LGTM

nit: could you add a new method for this line in UIUtils and reuse it?

Sure. That would be great. I'll refactor them like this.

def getTimeZoneOffset() : Int = TimeZone.getDefault().getOffset(System.currentTimeMillis()) / 1000 / 60

SparkQA · 2016-05-18T11:36:32Z

Test build #58767 has finished for PR 13158 at commit 38525b3.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

dongjoon-hyun · 2016-05-18T16:05:21Z

retest this please

SparkQA · 2016-05-18T17:45:41Z

Test build #58789 has finished for PR 13158 at commit 38525b3.

This patch fails PySpark unit tests.
This patch merges cleanly.
This patch adds no public classes.

dongjoon-hyun · 2016-05-18T17:48:36Z

retest this please

zsxwing · 2016-05-18T17:50:07Z

@dongjoon-hyun could you revert the changes to the file permission?

dongjoon-hyun · 2016-05-18T17:51:21Z

Oh, did I do that? Sorry, but which file did I do that?

dongjoon-hyun · 2016-05-18T17:53:40Z

I see. The js files. I'll fix them. Thank you.

zsxwing · 2016-05-18T17:59:48Z

@dongjoon-hyun looks pretty good. Let me try locally.

dongjoon-hyun · 2016-05-18T18:03:31Z

Oh, wait a moment. I'm testing on refactored method. I'll update the PR very soon again.

dongjoon-hyun · 2016-05-18T18:06:38Z

I'm done. You can test locally now with the up-to-date code.
Thank you for review and local testing, @zsxwing !

zsxwing · 2016-05-18T18:13:52Z

LGTM pending tests

SparkQA · 2016-05-18T19:46:01Z

Test build #58800 has finished for PR 13158 at commit 38525b3.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2016-05-18T19:51:57Z

Test build #58804 has finished for PR 13158 at commit 206171a.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2016-05-18T20:14:15Z

Test build #58801 has finished for PR 13158 at commit e170041.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2016-05-18T20:25:14Z

Test build #58803 has finished for PR 13158 at commit 0fa7d5b.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2016-05-18T22:07:08Z

Test build #2993 has finished for PR 13158 at commit 206171a.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

dongjoon-hyun · 2016-05-18T22:10:48Z

Hi, @zsxwing .
Finally, it passes the Jenkins test. :)

srowen · 2016-05-18T22:20:30Z

Merged to master/2.0

## What changes were proposed in this pull request? Currently, SparkUI shows two timezones in a single page when the timezone of browser is different from the server JVM timezone. The following is an example on Databricks CE which uses 'Etc/UTC' timezone. - The time of `submitted` column of list and pop-up description shows `2016/05/18 00:03:07` - The time of `timeline chart` shows `2016/05/17 17:03:07`. ![Different Timezone](https://issues.apache.org/jira/secure/attachment/12804553/12804553_timezone.png) This PR fixes the **timeline chart** to use the same timezone by the followings. - Upgrade `vis` from 3.9.0(2015-01-16) to 4.16.1(2016-04-18) - Override `moment` of `vis` to get `offset` - Update `AllJobsPage`, `JobPage`, and `StagePage`. ## How was this patch tested? Manual. Run the following command and see the Spark UI's event timelines. ``` $ SPARK_SUBMIT_OPTS="-Dscala.usejavacp=true -Duser.timezone=Etc/UTC" bin/spark-submit --class org.apache.spark.repl.Main ... scala> sql("select 1").head ``` Author: Dongjoon Hyun <[email protected]> Closes #13158 from dongjoon-hyun/SPARK-15373. (cherry picked from commit cc6a47d) Signed-off-by: Sean Owen <[email protected]>

dongjoon-hyun · 2016-05-18T22:22:20Z

Oh, thank you, @srowen !

## What changes were proposed in this pull request? SPARK-15373 (#13158) updated the version of vis.js to 4.16.1. As of 4.0.0, some class was renamed like 'timeline to vis-timeline' but that ticket didn't care and now style is broken. In this PR, I've restored the style by modifying `timeline-view.css` and `timeline-view.js`. ## How was this patch tested? manual tests. (If this patch involves UI changes, please attach a screenshot; otherwise, remove this) * Before <img width="1258" alt="2016-09-01 1 38 31" src="https://cloud.githubusercontent.com/assets/4736016/18141311/fddf1bac-6ff3-11e6-935f-28b389073b39.png"> * After <img width="1256" alt="2016-09-01 3 30 19" src="https://cloud.githubusercontent.com/assets/4736016/18141394/49af65dc-6ff4-11e6-8640-70e20300f3c3.png"> Author: Kousuke Saruta <[email protected]> Closes #14900 from sarutak/SPARK-17342. (cherry picked from commit 2ab8dbd) Signed-off-by: Sean Owen <[email protected]>

## What changes were proposed in this pull request? SPARK-15373 (apache#13158) updated the version of vis.js to 4.16.1. As of 4.0.0, some class was renamed like 'timeline to vis-timeline' but that ticket didn't care and now style is broken. In this PR, I've restored the style by modifying `timeline-view.css` and `timeline-view.js`. ## How was this patch tested? manual tests. (If this patch involves UI changes, please attach a screenshot; otherwise, remove this) * Before <img width="1258" alt="2016-09-01 1 38 31" src="https://cloud.githubusercontent.com/assets/4736016/18141311/fddf1bac-6ff3-11e6-935f-28b389073b39.png"> * After <img width="1256" alt="2016-09-01 3 30 19" src="https://cloud.githubusercontent.com/assets/4736016/18141394/49af65dc-6ff4-11e6-8640-70e20300f3c3.png"> Author: Kousuke Saruta <[email protected]> Closes apache#14900 from sarutak/SPARK-17342.
