[RFC] doc: replace breathe with Sphinx-Doxygen bridge

[gmarull]

This PR adds a new extension that converts Sphinx C domain roles (e.g., :c:func:`zephyr_api_call` ) to links to Doxygen pages.

The end goal is to use Doxygen and not breathe to render APIs. There are a few reasons to do that:

• Doxygen is faster to render API docs (hard to measure “how faster” as not all API are part of Sphinx today).
• As of today, not all APIs are rendered using breathe, creating a sort of incomplete documentation
• Doxygen renders everything automatically, there is no need to explicitly enable groups
• Doxygen docs look & feel is now more in line with Zephyr docs

Sphinx should still be the central place for documentation: GSG, usage guidelines, examples, tutorials, etc. These are the type of docs where rich content is important and where Sphinx is clearly better than Doxygen.

Note: The extension is a proof of concept, so it may have issues (e.g., PDF not supported yet, does not support incremental builds properly, etc.).

Live PoC: https://teslabs.github.io/zephyr-doctest/

[nashif]

the million dollar question is how long does it take to build the documentation with this change? :)

[gmarull]

the million dollar question is how long does it take to build the documentation with this change? :)

Some quick numbers from CI, I've taken a couple of random PRs:

This PR:

So, the gain seems to be about ~25% for HTML, ~50% for PDF. PDF goes down to 879 pages from 1905.

[henrikbrixandersen]

I like the idea of separating the two, but I don't think we should do it based on the time it takes to build the documentation. We should change it if this is a better way of presenting the Zephyr documentation.

Personally I've always been a bit puzzled as to why we provide both "inline API" documentation and the stand-alone Doxygen documentation.

In my opinion, this really comes down to UX. Which is the better user experience?

[gmarull]

I like the idea of separating the two, but I don't think we should do it based on the time it takes to build the documentation. We should change it if this is a better way of presenting the Zephyr documentation.

Personally I've always been a bit puzzled as to why we provide both "inline API" documentation and the stand-alone Doxygen documentation.

In my opinion, this really comes down to UX. Which is the better user experience?

I agree, even though build time is a UX parameter IMO. Kconfig is probably a better example where build time leads to a bad UX.

[nashif]

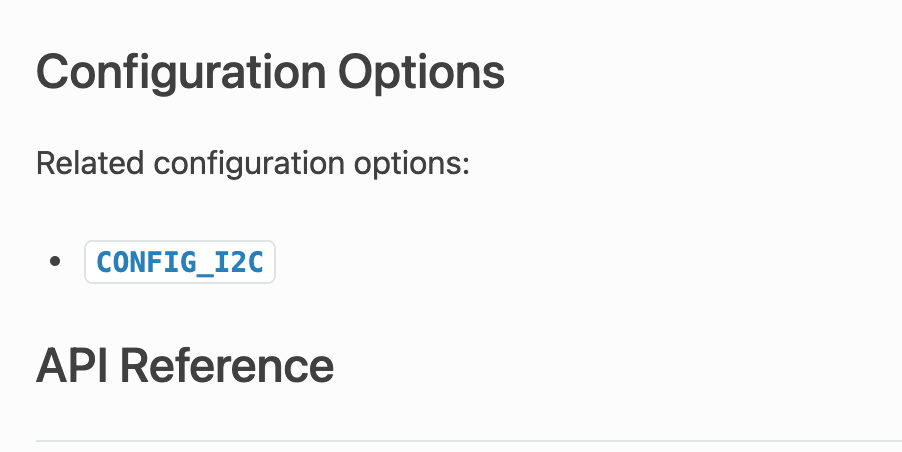

We need a link for each subsystem under the API Reference section:

[nashif]

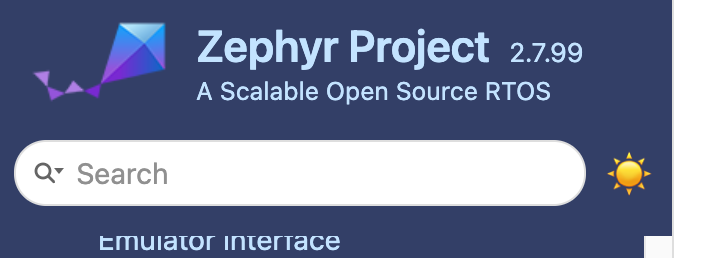

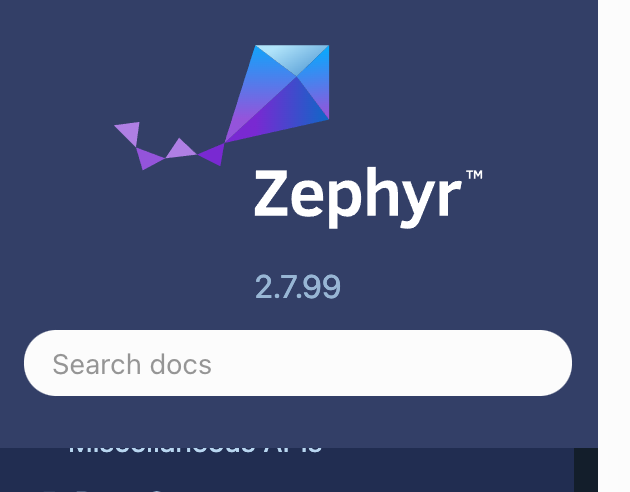

is there a way to have the same left sidebar colors and layout on both API and RSR documentation?

[nashif]

vs

[nashif]

dev-meeting: stick with current approach and look into optimizing kconfig rendering.

[mbolivar-nordic]

dev-meeting: stick with current approach and look into optimizing kconfig rendering.

So this will be closed, then? It's not handling the DT API reference correctly, so I want to know if I need to leave detailed comments or if this is no longer relevant.

[gmarull]

dev-meeting: stick with current approach and look into optimizing kconfig rendering.

So this will be closed, then? It's not handling the DT API reference correctly, so I want to know if I need to leave detailed comments or if this is no longer relevant.

I imagine DT does not work because it uses :c:func: for macros instead of :c:macro:. I think for now we should focus on improving Doxygen structure first (and Kconfig performance problems). My feeling is that we'll likely need to revisit this in the future, I don't think breathe will improve anytime soon (I wish I was wrong, though). Not only that, but I see Doxygen as a superior option to render API docs, specially now that they look better with the theme.

[mbolivar-nordic]

On Wed, Nov 10 2021, Gerard Marull-Paretas wrote: > > dev-meeting: stick with current approach and look into optimizing kconfig rendering. > > So this will be closed, then? It's not handling the DT API reference correctly, so I want to know if I need to leave detailed comments or if this is no longer relevant. I imagine DT does not work because it uses `:c:func:` for macros instead of `:c:macro:`.

No, I am referring to doc/reference/devicetree/api.rst. This uses doxygengroup extensively and the macros are no longer rendering in the output.

I think for now we should focus on improving Doxygen structure first (and Kconfig performance problems). My feeling is that we'll likely need to revisit this in the future, I don't think breathe will improve anytime soon (I wish I was wrong, though). Not only that, but I see Doxygen as a superior option to render API docs, specially now that they look better with the theme.

That's fine, but we need to make sure the existing API docs are still OK and don't silently drop expected content, right?

[gmarull]

No, I am referring to doc/reference/devicetree/api.rst. This uses doxygengroup extensively and the macros are no longer rendering in the output.

This was the idea, to stop using breathe to render API docs. I just dropped all breathe directives for testing.

That's fine, but we need to make sure the existing API docs are still OK and don't silently drop expected content, right?

Doxygen renders everything breathe can render. In case of Zephyr, Doxygen contains more stuff, since all APIs are rendered without the need to manually specify which groups should appear.

[mbolivar-nordic]

On Thu, Nov 11 2021, Gerard Marull-Paretas wrote: > No, I am referring to doc/reference/devicetree/api.rst. This uses doxygengroup extensively and the macros are no longer rendering in the output. This was the idea, to stop using breathe to render API docs. I just dropped all breathe directives for testing.

Right, all I'm saying is that my docs were broken with the draft as-is, and the reason why is not related to :c:func: vs :c:macro:, but because I use breathe directives carefully on groups that I maintain by hand. I just want to make sure I don't need to do any more review for now, because what I understand from @nashif is that you're not pursuing this in the short term -- right?
