attribute of xml file schema inferred as either array or not

[minnieshi]

I am using version 1.5.3 to ingest xml files to kafka

maybe it is a quetion instead of an issue.

This is related to but different than the issues #74
The fix for the above issue, starts to read the attributes of the XML file, but the resulting inferred sechema* can be different when the attribute has only 1 elelement versus when the attribute has more than 1 elements.

Now the situation is, I have 2 xml files, you can see the inferred schema (hence the payload format) is different from the resulting message.

I do not know whether i can force the attribute to be array.

Below is the content of file1

<?xml version="1.0" encoding="UTF-8"?>
<data>
    <field1>field1Value</field1>
    <field2>
        <value attributeWantToBefield="attribute1Value">27</value>
    </field2>
    <field4>2020-08-01T18:00:00</field4>
</data>

below is the content of file 2

<?xml version="1.0" encoding="UTF-8"?>
<data>
    <field1>field1Value</field1>
    <field2>
        <value attributeWantToBefield="attribute1Value">25</value>
        <value attributeWantToBefield="attribute2Value">77</value>
    </field2>
    <field4>1919-08-02T18:02:00</field4>
</data>

from the attached files, you can see

Issue: The payload part is different in 'format', this will make the parsing end json difficult.

payload file 1 (not array)

"payload": {
    "data": {
      "field1": "field1Value",
      "field2": {
        "value": {
          "attributeWantToBefield": "attribute1Value",
          "value": "27"
        }
      },
      "field4": "2020-08-01T18:00:00"
    }
  }

payload file 2 (array for the attribute part)

  "payload": {
    "data": {
      "field1": "field1Value",
      "field2": {
        "value": [
          {
            "attributeWantToBefield": "attribute1Value",
            "value": "25"
          },
          {
            "attributeWantToBefield": "attribute2Value",
            "value": "77"
          }
        ]
      },
      "field4": "1919-08-02T18:02:00"
    }
  }
}

Attached are message result (1 is the two xml files combined not formatted message, the tother 2 files are the formatted message )
result.formatted_fiel1.json.txt
result.formatted_file2.json.txt
result_to_reformat.json.txt

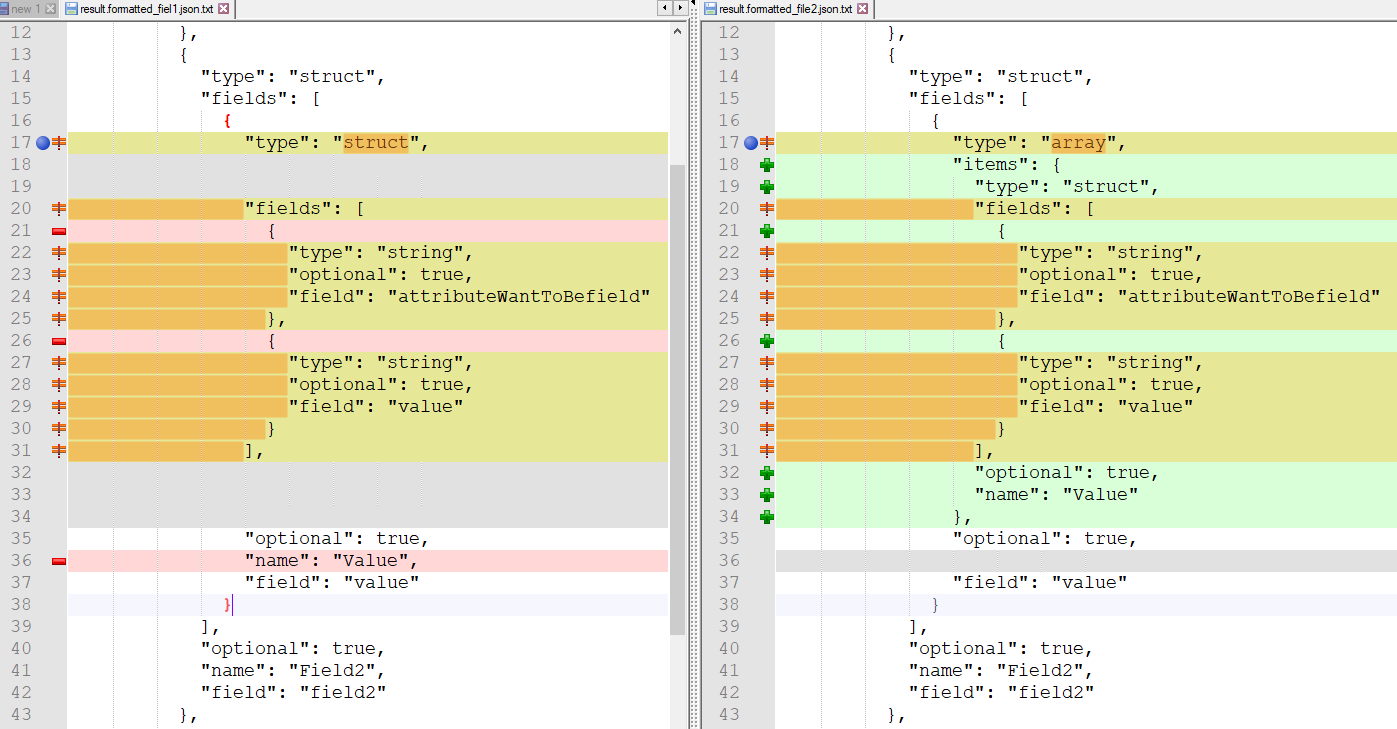

from the inferred schema you can see value is inferred to be struct type, and the other one is inferred as array.

[minnieshi]

I even tried to force "value" to be array, it did not help to force the 1st file to have the same schema/payload structure as the 2nd file.

[fhussonnois]

Hi @minnieshi, did you try to configure the property force.array.on.fields=field2. Also, this property doesn't support dot notation. So configuring data.field2 will not work.

Note that I will push a fix for adding dot notation on the force.array.on.fields.

[minnieshi]

Hi @fhussonnois , I did try to use "force.array.on.fields=field2", or by removing the setting, It did not make a difference.
and I think (i cannot remember now), I also tried to use field2.value
the problem is at the 'value' , i could not force it to be array.

[minnieshi]

Hi @fhussonnois
I can update the standalone properties and the connector properties file if that helps.

[fhussonnois]

Hi @minnieshi, please use the new bugfix release: https://github.com/streamthoughts/kafka-connect-file-pulse/releases/tag/v1.5.4

Configure your connector with: force.array.on.fields=data.field2.value

[minnieshi]

Hi @fhussonnois , I will give it a try now. and let you know.

[minnieshi]

Hi @fhussonnois I can confirm the 2 files now have the same inferred schema. Thank you very much for the fix.
