add image for specaugment docstring

[vincentqb]

Adding images to docstring to illustrate SpecAugment added in #285 as suggested by moto. This could look good online?

To regenerate:

import torchaudio

filename = "steam-train-whistle-daniel_simon.wav"
waveform, sample_rate = torchaudio.load(filename)
specgram = torchaudio.transforms.Spectrogram(n_fft=1054)(waveform)

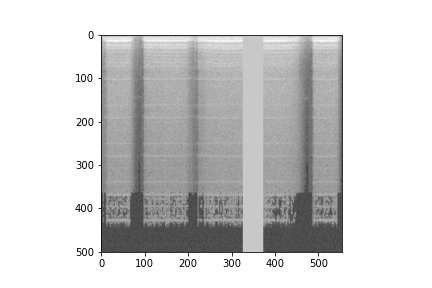

augmentations = torchaudio.transforms.TimeMasking(time_mask_param=100)
augmented = augmentations(specgram[0, ...].log())
plt.imshow(augmented.numpy(), cmap='gray');
# plt.axis('off')
plt.savefig('specaugment_time.jpg')

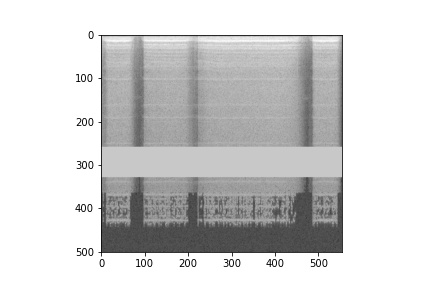

augmentations = torchaudio.transforms.FrequencyMasking(freq_mask_param=100)
augmented = augmentations(specgram[0, ...].log())
plt.imshow(augmented.numpy(), cmap='gray');
# plt.axis('off')
plt.savefig('specaugment_freq.jpg')

[cpuhrsch]

I'd add to the description a line describing the motivation behind this change.

[vincentqb]

Image in docstring in pytorch, or here

[cpuhrsch]

I think it's fine if the docstring can still stand by itself and the images are supplemental

[mthrok]

I think it would look better with a colormap other than grayscale.

https://matplotlib.org/cmocean/

[cpuhrsch]

On the color scheme: I'd play with it, but make sure it's still visible for people with color blindness and related

[facebook-github-bot]

Hi @vincentqb!

Thank you for your pull request.

We require contributors to sign our Contributor License Agreement, and yours needs attention.

You currently have a record in our system, but the CLA is no longer valid, and will need to be resubmitted.

Process

In order for us to review and merge your suggested changes, please sign at https://code.facebook.com/cla. If you are contributing on behalf of someone else (eg your employer), the individual CLA may not be sufficient and your employer may need to sign the corporate CLA.

Once the CLA is signed, our tooling will perform checks and validations. Afterwards, the pull request will be tagged with CLA signed. The tagging process may take up to 1 hour after signing. Please give it that time before contacting us about it.

If you have received this in error or have any questions, please contact us at [email protected]. Thanks!

[mthrok]

Addressed by #1887
