Spring Boot Steganography Tool

This project is a powerful and secure steganography tool built with Spring Boot 3. It allows you to hide text messages or files within images using the Least Significant Bit (LSB) technique. The application provides a RESTful API for all its operations, supports robust AES-256 encryption for hidden data, and is optimized for production with Java Virtual Threads.

Table of Contents

• What is Steganography?
• Features
• Architecture
• Demo
• Docker Hub
• How It Works
  • Encoding Process
  • Decoding Process
  • Security Model
• Technology Stack
• API Endpoints
• Getting Started
  • Prerequisites
  • Cloning the Repository
• Configuration
• Running the Application
  • 1. For Local Development (JVM)
  • 2. For Production (Docker)
• Interacting with the API
  • Example 1: Estimate Capacity
  • Example 2: Encode a Text Message
  • Example 3: Decode a Stego Image
• Project Structure
• Contributing
• License

What is Steganography?

Steganography is the practice of concealing a message or file within another file. Unlike cryptography, which obscures the content of a message, steganography conceals the very existence of the message. This tool uses the Least Significant Bit (LSB) method, which subtly alters the color data of image pixels to embed information, making the changes virtually invisible to the human eye.

Features

• Text & File Steganography: Embed both plain text and binary files within images.
• Strong Encryption: All hidden data is encrypted with AES-256 (CBC mode). The encryption key is derived from your password using PBKDF2 with 65,536 iterations and a unique salt for each encoding.
• RESTful API: A comprehensive API for encoding, decoding, capacity estimation, and managing encodings.
• Docker Support: Build and run the application as a container using the integrated Spring Boot Maven plugin and Docker Compose.
• High-Concurrency Ready: Utilizes Java 25 Virtual Threads with an embedded Jetty server to efficiently handle a large number of concurrent requests.
• Large File Streaming: Efficiently encodes and encrypts large files by streaming them, keeping memory usage low.
• Capacity Estimation: A dedicated endpoint to check if your data will fit in a given image before performing the encoding.
• Database Integration: Encoding metadata is saved to a MySQL database using Spring Data JPA.
• Scheduled Cleanup: A background task periodically cleans up orphaned stego files from storage and deletes expired extracted files.
• Robust Error Handling: A global exception handler provides detailed, structured error responses (ProblemDetail) for API clients.
• Traceability: A CorrelationIdFilter adds a unique trace ID to every request for improved logging and debugging.

Architecture

graph TD
    subgraph "User / Client"
        User[<fa:fa-user> User/API Client]
    end

    subgraph "DevOps & CI/CD Pipeline"
        GH_Repo[<fa:fa-github> GitHub Repo] -->|Push to master<br>New Release| GH_Actions[<fa:fa-cogs> GitHub Actions<br>Build, Test, & Publish]
        GH_Actions -->|Publishes Image| DockerHub[<fa:fa-docker> Docker Hub<br>noobdevsam/spring-project-steganography-tool]
    end

    subgraph "Spring Boot Application (Docker Container)"
        subgraph "Request Entry Point"
            Filter[<fa:fa-filter> CorrelationIdFilter<br><i>Adds Trace ID</i>] --> Controller
            Controller[<fa:fa-server> StegoController<br><i>REST API Endpoints</i>]
            ExceptionHandler[<fa:fa-shield-alt> GlobalExceptionHandler<br><i>Formats Error Responses</i>]
            Controller -- Catches Exceptions --> ExceptionHandler
        end

        subgraph "Core Business Logic"
            Service[<fa:fa-concierge-bell> SteganographyService<br><i>Orchestrates Workflows</i>]
        end

        subgraph "Utility Services"
            CapacitySvc[<fa:fa-calculator> CapacityUtilService<br><i>Estimates required space</i>]
            AesSvc[<fa:fa-lock> AesUtilService<br><i>PBKDF2 Key Derivation, AES Encryption</i>]
            LsbSvc[<fa:fa-magic> LsbUtilService<br><i>Hides data in image pixels</i>]
            LargeFileSvc[<fa:fa-file-import> LargeFileEncryptionService<br><i>Handles large file streams</i>]
        end

        subgraph "Data & Storage Layer"
            Repo[<fa:fa-book> StegoDataRepository<br><i>JPA interface to DB</i>]
            StorageSvc[<fa:fa-folder-open> StorageService<br><i>Manages file system I/O</i>]
        end

        subgraph "Background Processing"
            CleanupTask[<fa:fa-trash-alt> OrphanCleanupTask<br><i>Scheduled Job</i>]
        end
    end

    subgraph "External Systems"
        DB[(<fa:fa-database> MySQL Database<br><i>Stores encoding metadata</i>)]
        FS[/<fa:fa-hdd> File System<br><i>Docker Volume for stego-images</i>/]
    end

    %% --- FLOWS ---
    User -- "1. POST /encode (Image, Data, Password)" --> Filter
    Controller -->|2. Calls| Service

    Service -->|3. Early check| CapacitySvc
    Service -->|4. Encrypts data| AesSvc
    Service -- "4a. (For large files)" --> LargeFileSvc
    Service -->|5. Embeds encrypted data| LsbSvc
    Service -->|6. Saves stego-image| StorageSvc
    Service -->|7. Saves metadata| Repo

    Repo -->|JPA| DB
    StorageSvc -->|Writes/Reads| FS
    CleanupTask -->|Deletes old files| StorageSvc
    CleanupTask -->|Checks DB references| Repo

    style User fill:#D5E8D4,stroke:#82B366
    style GH_Repo fill:#f5f5f5,stroke:#333
    style DockerHub fill:#DAE8FC,stroke:#6C8EBF
    style DB fill:#DAE8FC,stroke:#6C8EBF
    style FS fill:#DAE8FC,stroke:#6C8EBF

Loading

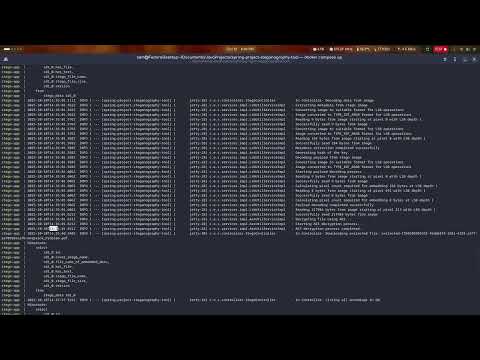

Demo

Docker Hub

The official Docker image for this project is available on Docker Hub. You can pull it directly to run the application without building it from the source.

• Repository: noobdevsam/spring-project-steganography-tool

How It Works

Encoding Process

1. Input: A user provides a cover image, the data to hide (text or a file), and a password.
2. Encryption: The data is encrypted using AES-256. A unique salt is generated for each operation.
3. Metadata Creation: A JSON metadata block is created containing details like LSB depth, data type, and a SHA-256 hash of the encryption key for password verification on decode.
4. LSB Embedding: The metadata and encrypted data are written into the least significant bits of the cover image's pixels.
5. Output: The modified image is saved as a new, lossless PNG file, and its metadata is persisted in the database.

Decoding Process

1. Input: A user provides the stego-image and the password used for encoding.
2. Metadata Extraction: The application reads the image's LSBs to find the "magic number" (STEG) and extracts the metadata.
3. Password Verification: It derives a key from the provided password, hashes it, and compares it to the hash stored in the metadata. The process fails if they don't match.
4. Payload Extraction & Decryption: The application reads the hidden data from the pixels and decrypts it using the password.
5. Output: The original text or file is returned.

Security Model

• Password Derivation: The AES key is derived from the user's password and a unique, random 16-byte salt using PBKDF2. This ensures that even identical passwords produce different keys for different encodings.
• Password Verification: During decoding, the provided password is used to derive a key, which is then hashed (SHA-256) and compared against the hash stored in the image's metadata. This prevents incorrect password attempts without decrypting the entire payload.
• Authenticated Encryption: The use of CBC mode with PKCS5Padding and a unique 16-byte Initialization Vector (IV) ensures that encrypted data is resistant to common cryptographic attacks.

Technology Stack

• Java 25 & Spring Boot 3
• Spring Framework: Web, Data JPA, Jetty (for Virtual Threads).
• Database: MySQL.
• Build & Packaging: Maven, Spring Boot Buildpacks.
• Containerization: Docker & Docker Compose.
• Utilities: Lombok, MapStruct.

API Endpoints

The base path for all endpoints is /api/v1/stego.

Method	Endpoint	Description
GET	/estimate	Estimates the data capacity of an image.
POST	/encode/text	Encodes a text message into a cover image.
POST	/encode/file	Encodes a file into a cover image.
POST	/decode	Decodes a message or file from a stego-image.
POST	/metadata	Extracts steganography metadata from an image without full decoding.
GET	/encodings	Lists all steganography encodings stored in the database.
GET	/encodings/{id}	Retrieves a specific encoding by its UUID.
DELETE	/encodings/{id}	Deletes an encoding record and its associated file.
GET	/encodings/{id}/download	Downloads the specified stego-image file.
GET	/download/extracted/{name}	Downloads a temporarily stored file after decoding.

Getting Started

Prerequisites

• JDK 25 or higher
• Maven 3.8+
• Docker and Docker Compose
• A REST client like Postman or curl.

Cloning the Repository

git clone https://github.com/noobdevsam/spring-project-steganography-tool.git
cd spring-project-steganography-tool

Configuration

The main configuration is in src/main/resources/application.yml. Key properties can be overridden with environment variables, which is the standard practice for containerized deployment.

Property	Environment Variable	Description	Default Value
spring.datasource.url	DATABASE_URL	JDBC URL for the MySQL database.	jdbc:mysql://...
spring.datasource.username	DATABASE_USER	Database username.	user
spring.datasource.password	DATABASE_PASSWORD	Database password.	password
app.storage.base-path	STORAGE_BASE_PATH	Local directory where files will be stored.	storage

• app.stream.threshold-bytes: File size (in bytes) above which streaming is used for encoding. Default: 1MB.
• app.cleanup.*: Settings for the scheduled file cleanup task.
• app.extraction.temp-ttl-ms: Time-to-live for extracted files. Default: 5 minutes.

Running the Application

There are two primary ways to run the application.

1. For Local Development (JVM)

This method is ideal for development and debugging, as it uses Spring Boot's hot-reload capabilities.

1. Start the Database: Open a terminal and run the following command to start the MySQL database service in the background.

   docker compose up -d db-mysql

2. Run the Spring Boot Application: In a separate terminal, run the application using the Maven wrapper.

   ./mvnw spring-boot:run

   The application will start on http://localhost:8080.

2. For Production (Docker)

This is the recommended approach for production. The compose.yml file is configured to use the pre-built image from Docker Hub.

1. Pull the Image (Optional): You can pull the latest image from Docker Hub before starting the services.

   docker pull noobdevsam/spring-project-steganography-tool:v1

2. Run with Docker Compose: This command will start both the application container and the database. Docker Compose will automatically pull the image if it's not available locally.

   docker compose up -d

   The application will be available on http://localhost:8080.

3. Building Locally (Alternative): If you prefer to build the image from the source code instead of using the one from Docker Hub, run the following Maven command first:

   # This requires Docker to be running.
   ./mvnw spring-boot:build-image -DskipTests

   The compose.yml file will use this locally built image (noobdevsam/spring-project-steganography-tool:v1) when you run docker compose up.

To stop all services, run docker compose down.

Interacting with the API

Example 1: Estimate Capacity

Check if a 50KB message fits in a 1024x768 image.

Request:

curl "http://localhost:8080/api/v1/stego/estimate?width=1024&height=768&lsbDepth=1&plainLength=51200"

Response:

{
    "capacityBytes": 294912,
    "overheadBytes": 137,
    "encryptedBytesEstimate": 51216,
    "requiredBytesEstimate": 51353,
    "fits": true,
    "streamThresholdBytes": 1000000
}

Example 2: Encode a Text Message

Encode the message "secret data" into cover.png with password "securepass".

Request:

curl -X POST http://localhost:8080/api/v1/stego/encode/text \
  -F "coverImage=@/path/to/your/cover.png" \
  -F "message=secret data" \
  -F "password=securepass" \
  -F "lsbDepth=1"

Example 3: Decode a Stego Image

Decode stego-image.png using the password "securepass".

Request:

curl -X POST http://localhost:8080/api/v1/stego/decode \
  -F "stegoImage=@/path/to/your/stego-image.png" \
  -F "password=securepass" \
  --output response.json

Project Structure

• configs/: Spring configuration classes (e.g., VirtualThreadConfig).
• controllers/: REST controllers for the API.
• entities/: JPA entity classes (StegoData).
• exceptions/: Custom exceptions and the global exception handler.
• filters/: Servlet filters for request processing (CorrelationIdFilter).
• mappers/: MapStruct DTO-entity converters.
• models/: API Data Transfer Objects (DTOs).
• repos/: Spring Data JPA repositories.
• services/: Business logic interfaces and implementations.
• cleanup/: Scheduled cleanup task for orphaned files.

Contributing

Contributions are welcome! Please fork the repository, create a feature branch, and open a pull request.

License

This project is licensed under the GNU Affero General Public License v3.0. See the LICENSE file for details.
