azureFunctions.pythonVenv uses wrong folder

[georged4s]

Problem: Vscode doesn't seems to recognise my python virtual environment for the azure function project.

System Specs:

OS: Ubuntu 18.04
Vscode Version: 1.44.2 (user setup)
Commit: ff915844119ce9485abfe8aa9076ec76b5300ddd
Date: 2020-04-16T16:36:23.138Z
Electron: 7.1.11
Chrome: 78.0.3904.130
Node.js: 12.8.1
V8: 7.8.279.23-electron.0
OS: Windows_NT x64 10.0.18363

Steps to Reproduce:

• follow the official documentation to create a new azure function project (except in the first command use python3 -m venv .venv instead)
• Reload Window (Ctrl + R or Developer: Reload Window in the command palette)

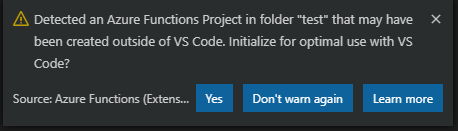

• Allow vscode to create its configuration files for the azure function project by clicking on "Yes" when you see the below pops up

• Open the __init__.py file located under LocalFunctionProj/HttpExample and add a line to import a package not installed (I have used "pandas") under the your root python site-packages folder (in my case it is /home/<my_username>/.local/lib/python3.6/site-packages)

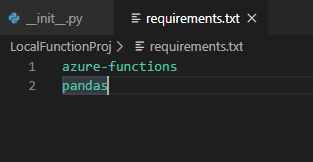

• Add this package to the requirements.txt under LocalFunctionProj

• Run source .venv/bin/activate to activate the virtual environment
• Run pip install -r ./LocalFunctionProj/requirements.txt to install all dependencies
• Press F5 key to enter into the debug mode

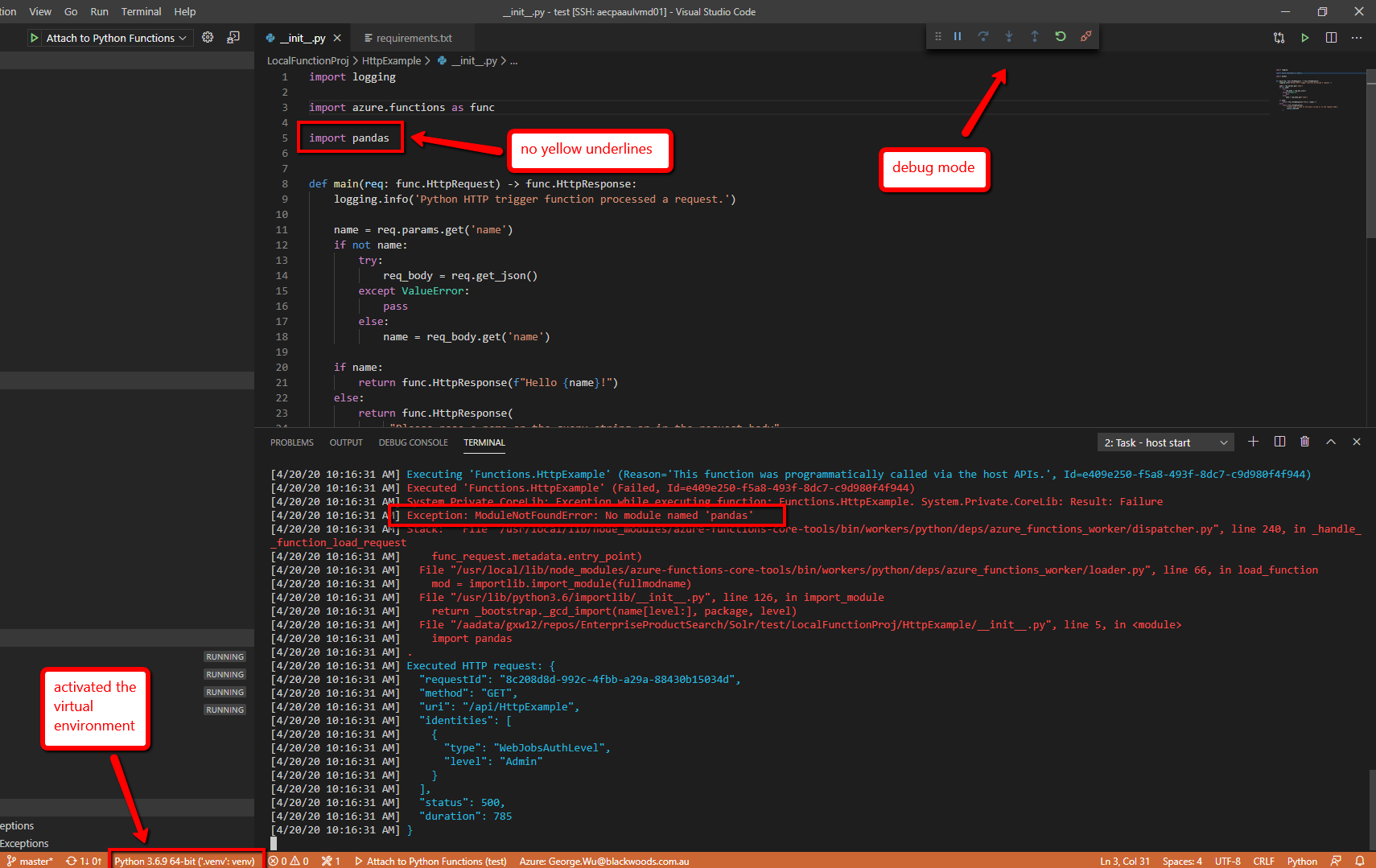

• Open up this link in your browser http://localhost:7071/api/HttpExample?name=Functions and see that it should throw an ModuleNotFoundError error about pandas not being imported


Diagnosis

After some researches I came to notices that it is not activating the virtual environment when using the debug mode. Here is how I found it out

• Delete import pandas and add import sys
• Add logging.info("Python executable path is: {}".format(sys.executable)) to log the python executable directory anywhere in the __init__.py before the function ends
• Launch the debug mode by pressing F5
• Refresh http://localhost:7071/api/HttpExample?name=Functions and it prints out this


Solution

At the end, I solved it by adding "azureFunctions.pythonVenv": "${workspaceFolder}/.venv" in the .vscode/settings.json file

Btw, I don't think this value "python.pythonPath": ".venv/bin/python3" is used at all as even I have removed it completed it doesn't seem to impact the usability of neither the debug mode nor of func start.

Here are my configuration files:
extensions.json
{ "recommendations": [ "ms-azuretools.vscode-azurefunctions", "ms-python.python" ] }

launch.json
{ "version": "0.2.0", "configurations": [ { "name": "Attach to Python Functions", "type": "python", "request": "attach", "port": 9091, "preLaunchTask": "func: host start" } ] }

settings.json
{ "azureFunctions.pythonVenv": "${workspaceFolder}/.venv", "azureFunctions.deploySubpath": "LocalFunctionProj", "azureFunctions.scmDoBuildDuringDeployment": true, "azureFunctions.projectLanguage": "Python", "azureFunctions.projectRuntime": "~2", "debug.internalConsoleOptions": "neverOpen", "python.pythonPath": ".venv/bin/python3" }

tasks.json
{ "version": "2.0.0", "tasks": [ { "type": "func", "command": "host start", "problemMatcher": "$func-watch", "isBackground": true, "options": { "cwd": "${workspaceFolder}/LocalFunctionProj" } } ] }

[ejizba]

When you hit this dialog:

It was supposed to automatically set "azureFunctions.pythonVenv" to ".venv". Did the venv already exist when you hit "Yes"? And what was the value of this setting immediately after?

[georged4s]

When you hit this dialog:

It was supposed to automatically set "azureFunctions.pythonVenv" to ".venv". Did the venv already exist when you hit "Yes"? And what was the value of this setting immediately after?

Yes, the .venv already exists when this msg pops up and my folder structure looks like this.

The the original values of settings.json has everything except the azureFunctions.pythonVenv

I have also tried using "azureFunctions.pythonVenv": ".venv" as well but then I got this error.

[georged4s]

I am guessing that the .venv should sit inside the project folder because it does make sense to merge both the .vscode, but if I follow the doc I end up having it sitting outside

[ejizba]

Oh interesting - yeah probably a bug in our code related to your file structure. I think we've got enough info to investigate. In the meantime, sounds like you're already unblocked

[georged4s]

yes i am fine for now and thanks for your attentions. I think you get the idea but I want to clarify a bit more just in case. It wasn't because that the azureFunctions.pythonVenv was added to the wrong folder but instead it was not be added at all.

[ejizba]

Note to self: Others have set "azureFunctions.pythonVenv" to "../.venv" as a workaround. Need to make sure I try out any fix with projects that already have both workarounds and make sure I don't break those people
