Calling distort(shape, 1.0, 1.0) changes path significantly

[Bersaelor]

So, I'm investigating an issue I am seeing around the distort function.

(1) findChains on my original model returns a chain of 94 paths
(2) calling distort(shape, 1.0, 1.0) on the same model
(3) findChains this time comes back with 2 chains, one with 93 links with endless: false and one with 2 links that is endless.

I'm trying to further distill it down into a test example and dive deeper why this is happening, but it's weird that distort is changing the model so much, even when the scaling shouldn't change anything.

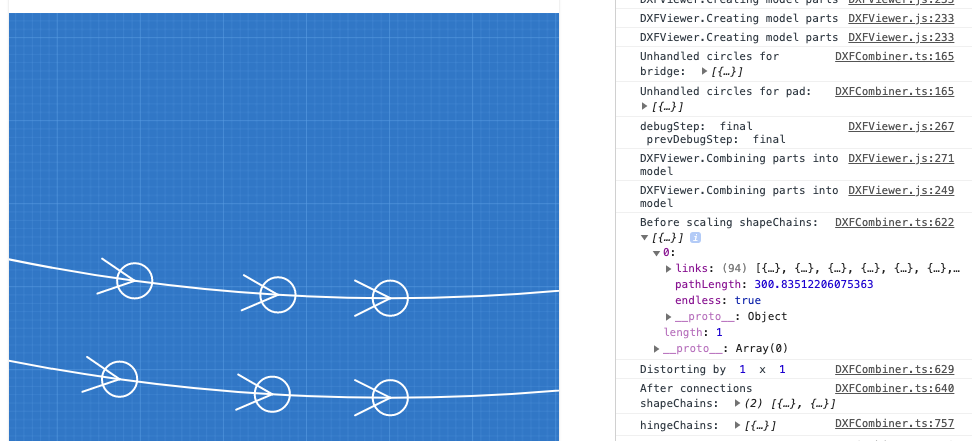

For now I have a screenshot of the part of my model before:

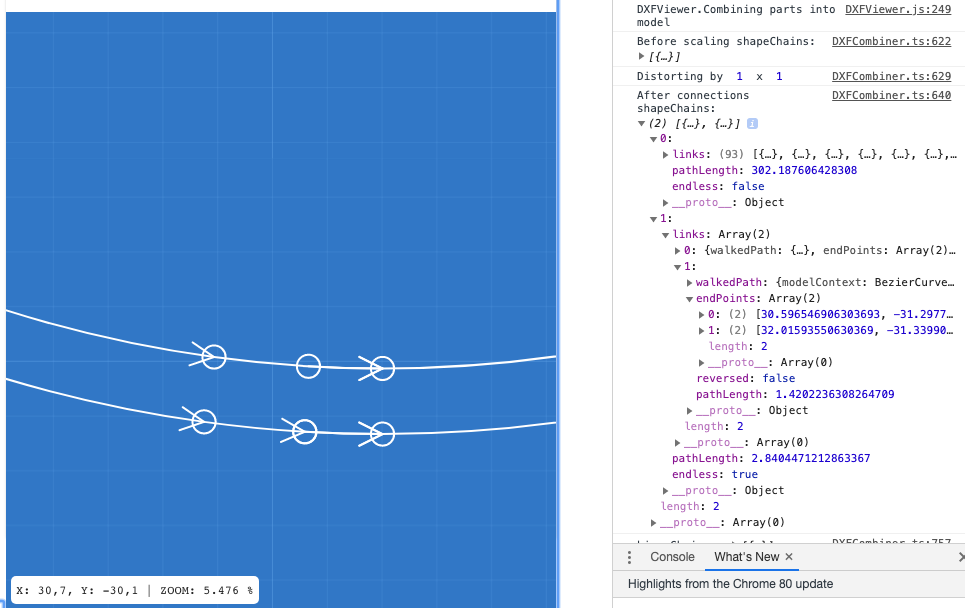

and after:

Hre's a picture of my full model:

EDIT: Changing the bezierAccuracy option did not make a difference, always the same result of these lines in the bottom curve becoming their own mini-loop.

[danmarshall]

Perhaps you can do a diff on the JSON before and after?
BTW that is a really cool application!!

[Bersaelor]

Thanks, yeah, I spent a lot of time on the application during the last year :)

So, I distilled the problem a little more, copy the following into the maker.js playground:

var makerjs = require('makerjs');

function Curve(distort, xScale, yScale) {

	var models = {"p_1":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[49.19340000912696,-23.76643519775553],"controls":[[47.54589150912696,-25.69649809775553],[45.552802009126964,-27.30229669775553]],"end":[43.31640000912696,-28.50143519775553]},"accuracy":0.07590843534674546,"paths":{"arc_0":{"type":"arc","origin":[33.67472055622203,-10.519634308631232],"radius":20.403606194938142,"startAngle":298.199807985429,"endAngle":319.5158087684108,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_2":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[43.31640000912695,-28.501435197755505],"controls":[[38.86204880912695,-30.889806897755506],[33.76550680912695,-31.805471597755503]],"end":[28.75835610912695,-31.116990397755504]},"accuracy":0.1503768023646056,"paths":{"arc_0":{"type":"arc","origin":[32.015786530778335,-7.425626328142378],"radius":23.914296654835947,"startAngle":270.0002010368226,"endAngle":298.1997126557931,"bezierData":{"startT":0,"endT":0.7834851}},"arc_1":{"type":"arc","origin":[32.01587116747963,-7.430719116331623],"radius":23.90920386009164,"startAngle":266.59658772087886,"endAngle":269.99999825709114,"bezierData":{"startT":0.7834851,"endT":0.877811}},"arc_2":{"type":"arc","origin":[32.016413171354486,-7.422937174440527],"radius":23.917004325217437,"startAngle":262.17062743761306,"endAngle":266.59639830838796,"bezierData":{"startT":0.877811,"endT":1}}},"origin":[0,0]},"Curve_2":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[28.75835610912695,-31.116990397755504],"controls":[[23.751205409126946,-30.428509197755503],[19.09093420912695,-28.171286697755505]],"end":[15.44650000912695,-24.669335197755505]},"accuracy":0.15037680217373628,"paths":{"arc_0":{"type":"arc","origin":[32.015885214648,-7.425797209967456],"radius":23.914098990645908,"startAngle":226.14219619655233,"endAngle":262.1709471254455,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_3":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[15.446500009127085,-24.66933519775545],"controls":[[11.831097509127083,-20.791131597755452],[9.265507009127091,-16.05423049775545]],"end":[7.992700009127091,-10.907235197755451]},"accuracy":0.15820534172941836,"paths":{"arc_0":{"type":"arc","origin":[38.2298715843712,-3.429847071353315],"radius":31.147999553859297,"startAngle":193.89008039829696,"endAngle":222.9914578935746,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_4":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[16.30270000912701,-23.831135197755675],"controls":[[12.82781940912701,-20.019453797755673],[10.018650609127022,-15.650570997755672]],"end":[7.992700009127006,-10.907235197755675]},"accuracy":0.1543732242958933,"paths":{"arc_0":{"type":"arc","origin":[50.301433893291865,7.163465810814486],"radius":46.00629519323109,"startAngle":203.12806187572835,"endAngle":222.3535484582318,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_5":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[42.75040000912695,-27.44593519775557],"controls":[[38.52464510912695,-29.71173109775557],[33.69030420912695,-30.58229949775557]],"end":[28.939596209126954,-29.93298559775557]},"accuracy":0.14266247815269273,"paths":{"arc_0":{"type":"arc","origin":[32.01573131323138,-7.425576418841636],"radius":22.71668720670064,"startAngle":270.0002092356444,"endAngle":298.19965880971256,"bezierData":{"startT":0,"endT":0.7844887}},"arc_1":{"type":"arc","origin":[32.015814774636404,-7.4303683107135825],"radius":22.711895111528666,"startAngle":266.5876290269404,"endAngle":269.9999987299335,"bezierData":{"startT":0.7844887,"endT":0.8791814}},"arc_2":{"type":"arc","origin":[32.01633294214731,-7.422931796790259],"radius":22.71934931206007,"startAngle":262.2168829757096,"endAngle":266.58744086010756,"bezierData":{"startT":0.8791814,"endT":1}}},"origin":[0,0]},"Curve_2":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[28.939596209126954,-29.93298559775557],"controls":[[24.18888810912695,-29.28367159775557],[19.765462509126948,-27.147776797755572]],"end":[16.30270000912695,-23.83113519775557]},"accuracy":0.14266247891400313,"paths":{"arc_0":{"type":"arc","origin":[32.01582642274163,-7.425736889849418],"radius":22.716501419160014,"startAngle":226.23474280731844,"endAngle":262.2171906281835,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_6":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[49.46580000912701,-21.451735197755667],"controls":[[47.73377880912701,-23.95356119775567],[45.43210080912701,-26.008050697755667]],"end":[42.750400009127006,-27.445935197755666]},"accuracy":0.09085994852574675,"paths":{"arc_0":{"type":"arc","origin":[33.674739706033876,-10.519538918025617],"radius":19.206001692035418,"startAngle":298.19949060405645,"endAngle":325.3050334634886,"bezierData":{"startT":0,"endT":1}}},"origin":[0,0]}},"origin":[0,0]},"p_7":{"models":{"Curve_1":{"type":"BezierCurve","seed":{"type":"bezier-seed","origin":[49.193400009127075,-23.76643519775547],"controls":[[49.06490120912708,-22.98460039775547],[49.15930860912708,-22.182379197755473]],"end":[49.46580000912708,-21.45173519775547]},"accuracy":0.02361418469417214,"paths":{"arc_0":{"type":"arc","origin":[53.35361902736453,-23.082653333089993],"radius":4.216038415165353,"startAngle":182.1997915841359,"endAngle":189.33379485323778,"bezierData":{"startT":0,"endT":0.221679}},"arc_1":{"type":"arc","origin":[53.35334392246139,-23.082673843422867],"radius":4.215762774729025,"startAngle":180.0000394116183,"endAngle":182.19965655170333,"bezierData":{"startT":0.221679,"endT":0.2902806}},"arc_2":{"type":"arc","origin":[53.35374210119602,-23.082660484148075],"radius":4.216160808402082,"startAngle":157.24278314562974,"endAngle":180.00022095459184,"bezierData":{"startT":0.2902806,"endT":1}}},"origin":[0,0]}},"origin":[0,0]}};
	var distorted = !distort ? {models: models} : makerjs.model.distort({models: models}, xScale, yScale, false, 0.05);

	this.models = distorted.models;
}

Curve.metaParameters = [
    { title: "distort", type: "bool", value: false },
    { title: "xScale", type: "range", min: 0, max: 2, step: 0.05, value: 1 },
    { title: "yScale", type: "range", min: 0, max: 2, step: 0.05, value: 1 }
];

module.exports = Curve;

I'll make it into a test and make a PR based on that test.

When "path flow" is on the problem is visible when toggling distort on/off.
