In Magento 2.2.5, Placeholder image is not setting

[saravanandscbe]

Preconditions (*)

1. Magento 2.2.5 Installed.

Steps to reproduce (*)

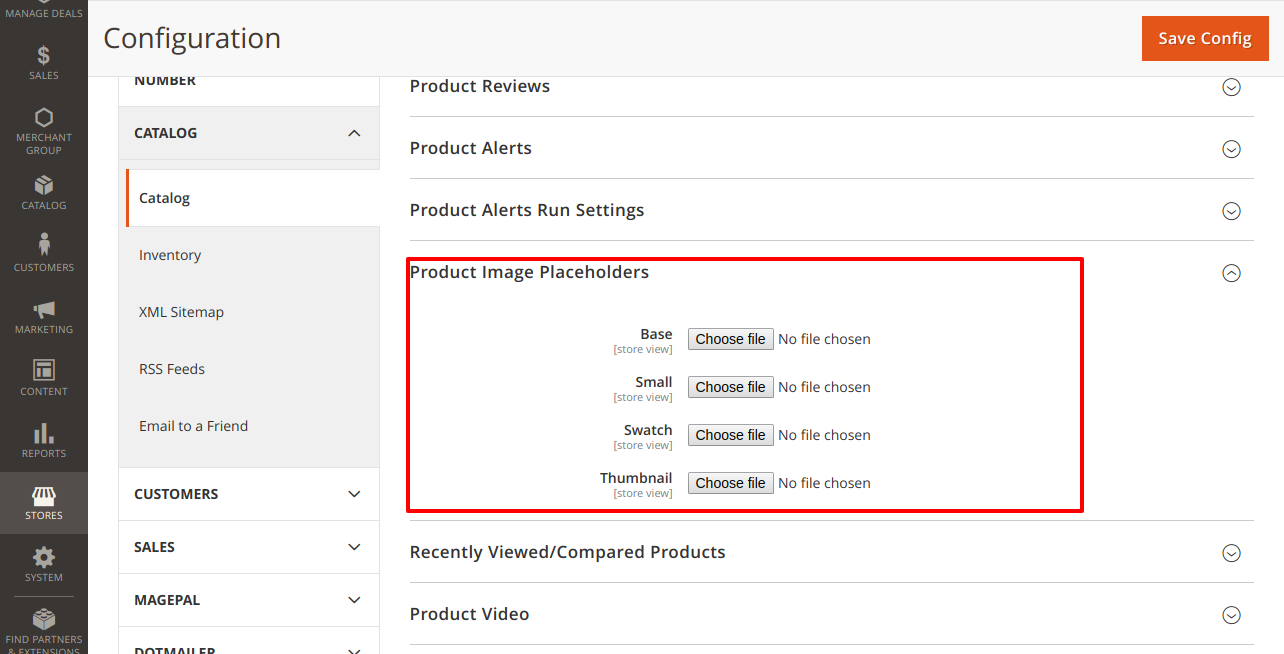

1. Go to admin panel -> Stores -> Configuration -> Product Image Placeholders
2. Set the product Placeholder image.
3. Get the product image and display wherever you need.(I Retrieved in .phtml file)

Expected result (*)

1. It should display the placeholder image if the base/small/thumb image not specified.

Actual result (*)

1. It shows the broken image.

[magento-engcom-team]

Hi @saravanandscbe. Thank you for your report.
To help us process this issue please make sure that you provided the following information:

• Summary of the issue
• Information on your environment
• Steps to reproduce
• Expected and actual results

Please make sure that the issue is reproducible on the vanilla Magento instance following Steps to reproduce. To deploy vanilla Magento instance on our environment, please, add a comment to the issue:

@magento-engcom-team give me $VERSION instance

where $VERSION is version tags (starting from 2.2.0+) or develop branches (for example: 2.3-develop).
For more details, please, review the Magento Contributor Assistant documentation.

@saravanandscbe do you confirm that you was able to reproduce the issue on vanilla Magento instance following steps to reproduce?

• yes
• no

[magento-engcom-team]

Hi @engcom-backlog-nazar. Thank you for working on this issue.
In order to make sure that issue has enough information and ready for development, please read and check the following instruction: 👇

• 1. Verify that issue has all the required information. (Preconditions, Steps to reproduce, Expected result, Actual result).

  Details

  If the issue has a valid description, the label Issue: Format is valid will be added to the issue automatically. Please, edit issue description if needed, until label Issue: Format is valid appears.

• 2. Verify that issue has a meaningful description and provides enough information to reproduce the issue. If the report is valid, add Issue: Clear Description label to the issue by yourself.

• 3. Add Component: XXXXX label(s) to the ticket, indicating the components it may be related to.

• 4. Verify that the issue is reproducible on 2.3-develop branch

  Details

  - Add the comment @magento-engcom-team give me 2.3-develop instance to deploy test instance on Magento infrastructure.
  - If the issue is reproducible on 2.3-develop branch, please, add the label Reproduced on 2.3.x.
  - If the issue is not reproducible, add your comment that issue is not reproducible and close the issue and stop verification process here!

• 5. Verify that the issue is reproducible on 2.2-develop branch.

  Details

  - Add the comment @magento-engcom-team give me 2.2-develop instance to deploy test instance on Magento infrastructure.
  - If the issue is reproducible on 2.2-develop branch, please add the label Reproduced on 2.2.x

• 6. Add label Issue: Confirmed once verification is complete.

• 7. Make sure that automatic system confirms that report has been added to the backlog.

Hi @saravanandscbe thank you for you report, this issue has already fixed in 2.3-dev and 2.2-dev branch and will available on 2.2.8 and 2.3.1 release
Related PR #18660

[saravanandscbe]

Hi @engcom-backlog-nazar . Could you please share the exact file to update in v2.2.5?

@saravanandscbe app/code/Magento/Config/Model/Config.php

<?php
/**
 * Copyright © Magento, Inc. All rights reserved.
 * See COPYING.txt for license details.
 */
namespace Magento\Config\Model;
use Magento\Config\Model\Config\Structure\Element\Group;
use Magento\Config\Model\Config\Structure\Element\Field;
/**
 * Backend config model
 * Used to save configuration
 *
 * @author     Magento Core Team <core@magentocommerce.com>
 * @SuppressWarnings(PHPMD.CouplingBetweenObjects)
 * @api
 * @since 100.0.2
 */
class Config extends \Magento\Framework\DataObject
{
    /**
     * Config data for sections
     *
     * @var array
     */
    protected $_configData;
    /**
     * Event dispatcher
     *
     * @var \Magento\Framework\Event\ManagerInterface
     */
    protected $_eventManager;
    /**
     * System configuration structure
     *
     * @var \Magento\Config\Model\Config\Structure
     */
    protected $_configStructure;
    /**
     * Application config
     *
     * @var \Magento\Framework\App\Config\ScopeConfigInterface
     */
    protected $_appConfig;
    /**
     * Global factory
     *
     * @var \Magento\Framework\App\Config\ScopeConfigInterface
     */
    protected $_objectFactory;
    /**
     * TransactionFactory
     *
     * @var \Magento\Framework\DB\TransactionFactory
     */
    protected $_transactionFactory;
    /**
     * Config data loader
     *
     * @var \Magento\Config\Model\Config\Loader
     */
    protected $_configLoader;
    /**
     * Config data factory
     *
     * @var \Magento\Framework\App\Config\ValueFactory
     */
    protected $_configValueFactory;
    /**
     * @var \Magento\Store\Model\StoreManagerInterface
     */
    protected $_storeManager;
    /**
     * @param \Magento\Framework\App\Config\ReinitableConfigInterface $config
     * @param \Magento\Framework\Event\ManagerInterface $eventManager
     * @param \Magento\Config\Model\Config\Structure $configStructure
     * @param \Magento\Framework\DB\TransactionFactory $transactionFactory
     * @param \Magento\Config\Model\Config\Loader $configLoader
     * @param \Magento\Framework\App\Config\ValueFactory $configValueFactory
     * @param \Magento\Store\Model\StoreManagerInterface $storeManager
     * @param array $data
     */
    public function __construct(
        \Magento\Framework\App\Config\ReinitableConfigInterface $config,
        \Magento\Framework\Event\ManagerInterface $eventManager,
        \Magento\Config\Model\Config\Structure $configStructure,
        \Magento\Framework\DB\TransactionFactory $transactionFactory,
        \Magento\Config\Model\Config\Loader $configLoader,
        \Magento\Framework\App\Config\ValueFactory $configValueFactory,
        \Magento\Store\Model\StoreManagerInterface $storeManager,
        array $data = []
    ) {
        parent::__construct($data);
        $this->_eventManager = $eventManager;
        $this->_configStructure = $configStructure;
        $this->_transactionFactory = $transactionFactory;
        $this->_appConfig = $config;
        $this->_configLoader = $configLoader;
        $this->_configValueFactory = $configValueFactory;
        $this->_storeManager = $storeManager;
    }
    /**
     * Save config section
     * Require set: section, website, store and groups
     *
     * @throws \Exception
     * @return $this
     */
    public function save()
    {
        $this->initScope();
        $sectionId = $this->getSection();
        $groups = $this->getGroups();
        if (empty($groups)) {
            return $this;
        }
        $oldConfig = $this->_getConfig(true);
        /** @var \Magento\Framework\DB\Transaction $deleteTransaction */
        $deleteTransaction = $this->_transactionFactory->create();
        /** @var \Magento\Framework\DB\Transaction $saveTransaction */
        $saveTransaction = $this->_transactionFactory->create();
        $changedPaths = [];
        // Extends for old config data
        $extraOldGroups = [];
        foreach ($groups as $groupId => $groupData) {
            $this->_processGroup(
                $groupId,
                $groupData,
                $groups,
                $sectionId,
                $extraOldGroups,
                $oldConfig,
                $saveTransaction,
                $deleteTransaction
            );
            $groupChangedPaths = $this->getChangedPaths($sectionId, $groupId, $groupData, $oldConfig, $extraOldGroups);
            $changedPaths = \array_merge($changedPaths, $groupChangedPaths);
        }
        try {
            $deleteTransaction->delete();
            $saveTransaction->save();
            // re-init configuration
            $this->_appConfig->reinit();
            // website and store codes can be used in event implementation, so set them as well
            $this->_eventManager->dispatch(
                "admin_system_config_changed_section_{$this->getSection()}",
                [
                    'website' => $this->getWebsite(),
                    'store' => $this->getStore(),
                    'changed_paths' => $changedPaths,
                ]
            );
        } catch (\Exception $e) {
            // re-init configuration
            $this->_appConfig->reinit();
            throw $e;
        }
        return $this;
    }
    /**
     * Map field name if they were cloned
     *
     * @param Group $group
     * @param string $fieldId
     * @return string
     */
    private function getOriginalFieldId(Group $group, string $fieldId): string
    {
        if ($group->shouldCloneFields()) {
            $cloneModel = $group->getCloneModel();
            /** @var \Magento\Config\Model\Config\Structure\Element\Field $field */
            foreach ($group->getChildren() as $field) {
                foreach ($cloneModel->getPrefixes() as $prefix) {
                    if ($prefix['field'] . $field->getId() === $fieldId) {
                        $fieldId = $field->getId();
                        break(2);
                    }
                }
            }
        }
        return $fieldId;
    }
    /**
     * Get field object
     *
     * @param string $sectionId
     * @param string $groupId
     * @param string $fieldId
     * @return Field
     */
    private function getField(string $sectionId, string $groupId, string $fieldId): Field
    {
        /** @var \Magento\Config\Model\Config\Structure\Element\Group $group */
        $group = $this->_configStructure->getElement($sectionId . '/' . $groupId);
        $fieldPath = $group->getPath() . '/' . $this->getOriginalFieldId($group, $fieldId);
        $field = $this->_configStructure->getElement($fieldPath);
        return $field;
    }
    /**
     * Get field path
     *
     * @param Field $field
     * @param string $fieldId Need for support of clone_field feature
     * @param array &$oldConfig Need for compatibility with _processGroup()
     * @param array &$extraOldGroups Need for compatibility with _processGroup()
     * @return string
     */
    private function getFieldPath(Field $field, string $fieldId, array &$oldConfig, array &$extraOldGroups): string
    {
        $path = $field->getGroupPath() . '/' . $fieldId;
        /**
         * Look for custom defined field path
         */
        $configPath = $field->getConfigPath();
        if ($configPath && strrpos($configPath, '/') > 0) {
            // Extend old data with specified section group
            $configGroupPath = substr($configPath, 0, strrpos($configPath, '/'));
            if (!isset($extraOldGroups[$configGroupPath])) {
                $oldConfig = $this->extendConfig($configGroupPath, true, $oldConfig);
                $extraOldGroups[$configGroupPath] = true;
            }
            $path = $configPath;
        }
        return $path;
    }
    /**
     * Check is config value changed
     *
     * @param array $oldConfig
     * @param string $path
     * @param array $fieldData
     * @return bool
     */
    private function isValueChanged(array $oldConfig, string $path, array $fieldData): bool
    {
        if (isset($oldConfig[$path]['value'])) {
            $result = !isset($fieldData['value']) || $oldConfig[$path]['value'] !== $fieldData['value'];
        } else {
            $result = empty($fieldData['inherit']);
        }
        return $result;
    }
    /**
     * Get changed paths
     *
     * @param string $sectionId
     * @param string $groupId
     * @param array $groupData
     * @param array &$oldConfig
     * @param array &$extraOldGroups
     * @return array
     */
    private function getChangedPaths(
        string $sectionId,
        string $groupId,
        array $groupData,
        array &$oldConfig,
        array &$extraOldGroups
    ): array {
        $changedPaths = [];
        if (isset($groupData['fields'])) {
            foreach ($groupData['fields'] as $fieldId => $fieldData) {
                $field = $this->getField($sectionId, $groupId, $fieldId);
                $path = $this->getFieldPath($field, $fieldId, $oldConfig, $extraOldGroups);
                if ($this->isValueChanged($oldConfig, $path, $fieldData)) {
                    $changedPaths[] = $path;
                }
            }
        }
        if (isset($groupData['groups'])) {
            $subSectionId = $sectionId . '/' . $groupId;
            foreach ($groupData['groups'] as $subGroupId => $subGroupData) {
                $subGroupChangedPaths = $this->getChangedPaths(
                    $subSectionId,
                    $subGroupId,
                    $subGroupData,
                    $oldConfig,
                    $extraOldGroups
                );
                $changedPaths = \array_merge($changedPaths, $subGroupChangedPaths);
            }
        }
        return $changedPaths;
    }
    /**
     * Process group data
     *
     * @param string $groupId
     * @param array $groupData
     * @param array $groups
     * @param string $sectionPath
     * @param array &$extraOldGroups
     * @param array &$oldConfig
     * @param \Magento\Framework\DB\Transaction $saveTransaction
     * @param \Magento\Framework\DB\Transaction $deleteTransaction
     * @return void
     * @SuppressWarnings(PHPMD.CyclomaticComplexity)
     */
    protected function _processGroup(
        $groupId,
        array $groupData,
        array $groups,
        $sectionPath,
        array &$extraOldGroups,
        array &$oldConfig,
        \Magento\Framework\DB\Transaction $saveTransaction,
        \Magento\Framework\DB\Transaction $deleteTransaction
    ) {
        $groupPath = $sectionPath . '/' . $groupId;
        if (isset($groupData['fields'])) {
            /** @var \Magento\Config\Model\Config\Structure\Element\Group $group */
            $group = $this->_configStructure->getElement($groupPath);
            // set value for group field entry by fieldname
            // use extra memory
            $fieldsetData = [];
            foreach ($groupData['fields'] as $fieldId => $fieldData) {
                $field = $this->getField($sectionPath, $groupId, $fieldId);
                /** @var \Magento\Framework\App\Config\ValueInterface $backendModel */
                $backendModel = $field->hasBackendModel()
                    ? $field->getBackendModel()
                    : $this->_configValueFactory->create();
                if (!isset($fieldData['value'])) {
                    $fieldData['value'] = null;
                }
                $fieldsetData[$fieldId] = $fieldData['value'];
                $data = [
                    'field' => $fieldId,
                    'groups' => $groups,
                    'group_id' => $group->getId(),
                    'scope' => $this->getScope(),
                    'scope_id' => $this->getScopeId(),
                    'scope_code' => $this->getScopeCode(),
                    'field_config' => $field->getData(),
                    'fieldset_data' => $fieldsetData,
                ];
                $backendModel->addData($data);
                $this->_checkSingleStoreMode($field, $backendModel);
                $path = $this->getFieldPath($field, $fieldId, $extraOldGroups, $oldConfig);
                $backendModel->setPath($path)->setValue($fieldData['value']);
                $inherit = !empty($fieldData['inherit']);
                if (isset($oldConfig[$path])) {
                    $backendModel->setConfigId($oldConfig[$path]['config_id']);
                    /**
                     * Delete config data if inherit
                     */
                    if (!$inherit) {
                        $saveTransaction->addObject($backendModel);
                    } else {
                        $deleteTransaction->addObject($backendModel);
                    }
                } elseif (!$inherit) {
                    $backendModel->unsConfigId();
                    $saveTransaction->addObject($backendModel);
                }
            }
        }
        if (isset($groupData['groups'])) {
            foreach ($groupData['groups'] as $subGroupId => $subGroupData) {
                $this->_processGroup(
                    $subGroupId,
                    $subGroupData,
                    $groups,
                    $groupPath,
                    $extraOldGroups,
                    $oldConfig,
                    $saveTransaction,
                    $deleteTransaction
                );
            }
        }
    }
    /**
     * Load config data for section
     *
     * @return array
     */
    public function load()
    {
        if ($this->_configData === null) {
            $this->initScope();
            $this->_configData = $this->_getConfig(false);
        }
        return $this->_configData;
    }
    /**
     * Extend config data with additional config data by specified path
     *
     * @param string $path Config path prefix
     * @param bool $full Simple config structure or not
     * @param array $oldConfig Config data to extend
     * @return array
     */
    public function extendConfig($path, $full = true, $oldConfig = [])
    {
        $extended = $this->_configLoader->getConfigByPath($path, $this->getScope(), $this->getScopeId(), $full);
        if (is_array($oldConfig) && !empty($oldConfig)) {
            return $oldConfig + $extended;
        }
        return $extended;
    }
    /**
     * Add data by path section/group/field
     *
     * @param string $path
     * @param mixed $value
     * @return void
     * @throws \UnexpectedValueException
     */
    public function setDataByPath($path, $value)
    {
        $path = trim($path);
        if ($path === '') {
            throw new \UnexpectedValueException('Path must not be empty');
        }
        $pathParts = explode('/', $path);
        $keyDepth = count($pathParts);
        if ($keyDepth !== 3) {
            throw new \UnexpectedValueException(
                "Allowed depth of configuration is 3 (<section>/<group>/<field>). Your configuration depth is "
                . $keyDepth . " for path '$path'"
            );
        }
        $data = [
            'section' => $pathParts[0],
            'groups' => [
                $pathParts[1] => [
                    'fields' => [
                        $pathParts[2] => ['value' => $value],
                    ],
                ],
            ],
        ];
        $this->addData($data);
    }
    /**
     * Get scope name and scopeId
     * @todo refactor to scope resolver
     * @return void
     */
    private function initScope()
    {
        if ($this->getSection() === null) {
            $this->setSection('');
        }
        if ($this->getWebsite() === null) {
            $this->setWebsite('');
        }
        if ($this->getStore() === null) {
            $this->setStore('');
        }
        if ($this->getStore()) {
            $scope = 'stores';
            $store = $this->_storeManager->getStore($this->getStore());
            $scopeId = (int)$store->getId();
            $scopeCode = $store->getCode();
        } elseif ($this->getWebsite()) {
            $scope = 'websites';
            $website = $this->_storeManager->getWebsite($this->getWebsite());
            $scopeId = (int)$website->getId();
            $scopeCode = $website->getCode();
        } else {
            $scope = 'default';
            $scopeId = 0;
            $scopeCode = '';
        }
        $this->setScope($scope);
        $this->setScopeId($scopeId);
        $this->setScopeCode($scopeCode);
    }
    /**
     * Return formatted config data for current section
     *
     * @param bool $full Simple config structure or not
     * @return array
     */
    protected function _getConfig($full = true)
    {
        return $this->_configLoader->getConfigByPath(
            $this->getSection(),
            $this->getScope(),
            $this->getScopeId(),
            $full
        );
    }
    /**
     * Set correct scope if isSingleStoreMode = true
     *
     * @param \Magento\Config\Model\Config\Structure\Element\Field $fieldConfig
     * @param \Magento\Framework\App\Config\ValueInterface $dataObject
     * @return void
     */
    protected function _checkSingleStoreMode(
        \Magento\Config\Model\Config\Structure\Element\Field $fieldConfig,
        $dataObject
    ) {
        $isSingleStoreMode = $this->_storeManager->isSingleStoreMode();
        if (!$isSingleStoreMode) {
            return;
        }
        if (!$fieldConfig->showInDefault()) {
            $websites = $this->_storeManager->getWebsites();
            $singleStoreWebsite = array_shift($websites);
            $dataObject->setScope('websites');
            $dataObject->setWebsiteCode($singleStoreWebsite->getCode());
            $dataObject->setScopeCode($singleStoreWebsite->getCode());
            $dataObject->setScopeId($singleStoreWebsite->getId());
        }
    }
    /**
     * Get config data value
     *
     * @param string $path
     * @param null|bool &$inherit
     * @param null|array $configData
     * @return \Magento\Framework\Simplexml\Element
     */
    public function getConfigDataValue($path, &$inherit = null, $configData = null)
    {
        $this->load();
        if ($configData === null) {
            $configData = $this->_configData;
        }
        if (isset($configData[$path])) {
            $data = $configData[$path];
            $inherit = false;
        } else {
            $data = $this->_appConfig->getValue($path, $this->getScope(), $this->getScopeCode());
            $inherit = true;
        }
        return $data;
    }
}

[saravanandscbe]

Thanks @engcom-backlog-nazar. It is working.
