New tooling for iOS 17 physical devices #131865

vashworth · 2023-08-03T16:46:18Z

This PR includes the following changes. These changes only apply to iOS 17 physical devices.

Command	Change Description	Changes to User Experience
`flutter run --release`	Uses `devicectl` to install and launch application in release mode.	No change.
`flutter run`	Uses Xcode via automation scripting to run application in debug and profile mode.	Xcode will be opened in the background. Errors/crashes may be caught in Xcode and therefore may not show in terminal.
`flutter run --use-application-binary=xxxx`	Creates temporary empty Xcode project and use Xcode to run via automation scripting in debug and profile.	Xcode will be opened in the background. Errors/crashes may be caught in Xcode and therefore may not show in terminal.
`flutter install`	Uses `devicectl` to check installed apps, install app, uninstall app.	No change.
`flutter screenshot`	Will return error.	Will return error.

Other changes include:

Using devicectl to get information about the device
Using idevicesyslog and Dart VM logging for device logs

Note:
Xcode automation scripting (used in flutter run for debug and profile) does not work in a headless (without a UI) interface. No known workaround.

Fixes #128827, #128531.

Pre-launch Checklist

I read the Contributor Guide and followed the process outlined there for submitting PRs.
I read the Tree Hygiene wiki page, which explains my responsibilities.
I read and followed the Flutter Style Guide, including Features we expect every widget to implement.
I signed the CLA.
I listed at least one issue that this PR fixes in the description above.
I updated/added relevant documentation (doc comments with ///).
I added new tests to check the change I am making, or this PR is test-exempt.
All existing and new tests are passing.

If you need help, consider asking for advice on the #hackers-new channel on Discord.

vashworth · 2023-08-04T18:52:04Z

@hellohuanlin Did you upgrade a physical device to iOS 17? Could be good to have the workflows tested on another real device other than just mine.

vashworth · 2023-08-04T18:54:38Z

@christopherfujino @hellohuanlin There is JavaScript in this PR, if neither of you are comfortable reviewing JS, do you know someone who would be? Perhaps someone on the web team?

christopherfujino · 2023-08-04T18:54:58Z

Woohoo, nice! I'll try to test this out with my mac.

vashworth · 2023-08-04T18:59:25Z

Woohoo, nice! I'll try to test this out with my mac.

@christopherfujino That'd be great! If you don't want to upgrade a device to iOS 17, you can test at least the Xcode workflows using an environment variable to force it.
Example:

flutter/dev/devicelab/bin/tasks/flutter_gallery_ios__start_up_xcode_debug.dart

Line 13 in d75a012

'FORCE_XCODE_DEBUG': 'true',

The devicectl workflows only work with physical iOS 17 devices alongside Xcode 15.

christopherfujino · 2023-08-04T21:54:36Z

@christopherfujino @hellohuanlin There is JavaScript in this PR, if neither of you are comfortable reviewing JS, do you know someone who would be? Perhaps someone on the web team?

This is fine (I'd much rather review JS than applescript :) )

packages/flutter_tools/bin/xcode_debug.js

christopherfujino · 2023-08-04T22:23:07Z

So I tested flutter run --debug on a physical iphone and it worked! For reference, I hit the following dialogs on my host macbook:

Where Alacritty is my terminal application. I'm not sure whether or not this will alarm users. For CLI usage, we could print to the terminal that they may see this prompt, but that won't help IDE users.

christopherfujino · 2023-08-04T22:38:53Z

I tried flutter install -d physicaliPhone which succeeded. Confusingly, even invoking flutter install --release apparently installed the debug version, and I had to explicitly first do flutter build ios --release for flutter install to install a release mode app I could launch from the home screen, but this seems like an unrelated bug.

christopherfujino · 2023-08-04T22:40:34Z

flutter run --release -d iPhone works.

christopherfujino · 2023-08-04T23:06:30Z

When I do:

flutter build ipa
flutter run -d iPhone --use-application-binary=./build/ios/ipa/delete_me_flutter.ipa

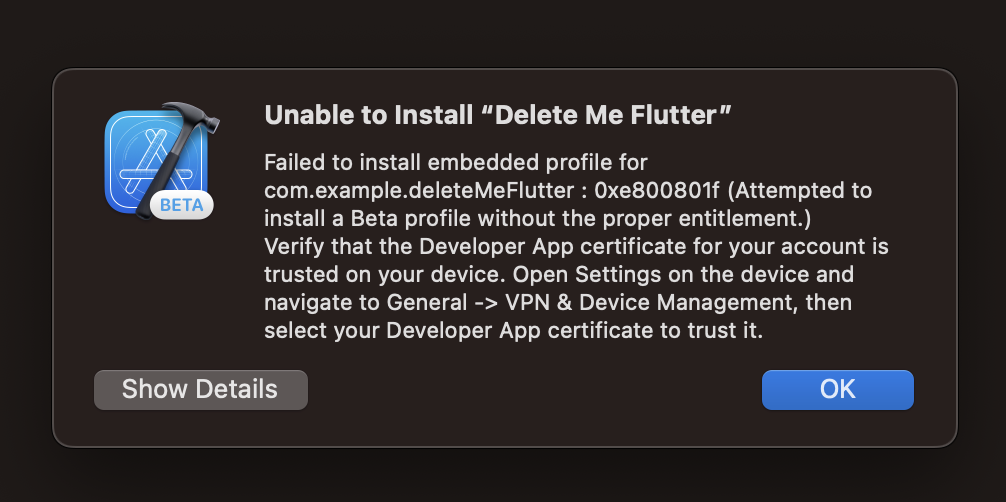

I get:

Is this user error?

I think I have codesigning configured correctly, since I can do flutter run --release -d iPhone.

vashworth · 2023-08-07T17:26:11Z

When I do:
flutter build ipa
flutter run -d iPhone --use-application-binary=./build/ios/ipa/delete_me_flutter.ipa
I get:

Is this user error?

I think I have codesigning configured correctly, since I can do flutter run --release -d iPhone.

So this I believe is user error. I got the same thing, but I also got the same thing with Xcode 14 and iOS 16. I think perhaps our developer account don't have the proper permissions -- unsure. Anyways, I think it's a non issue. I tested it by doing flutter build ios and using --use-application-binary=./build/ios/iphoneos/Runner.app. Also, I believe @chingjun doesn't have this issue with g3.

vashworth · 2023-08-07T17:28:43Z

I tried flutter install -d physicaliPhone which succeeded. Confusingly, even invoking flutter install --release apparently installed the debug version, and I had to explicitly first do flutter build ios --release for flutter install to install a release mode app I could launch from the home screen, but this seems like an unrelated bug.

Yeah flutter install doesn't build, it just installs whatever is already in the build folder. For example, if you do flutter clean and then flutter install, it'll fail because there's nothing in the build folder.
