MobSf Scan Security issue

[anda5]

#I have used the MOBSf tool for security analysis and I and I have this issues:
1.

How can I solve this errors?

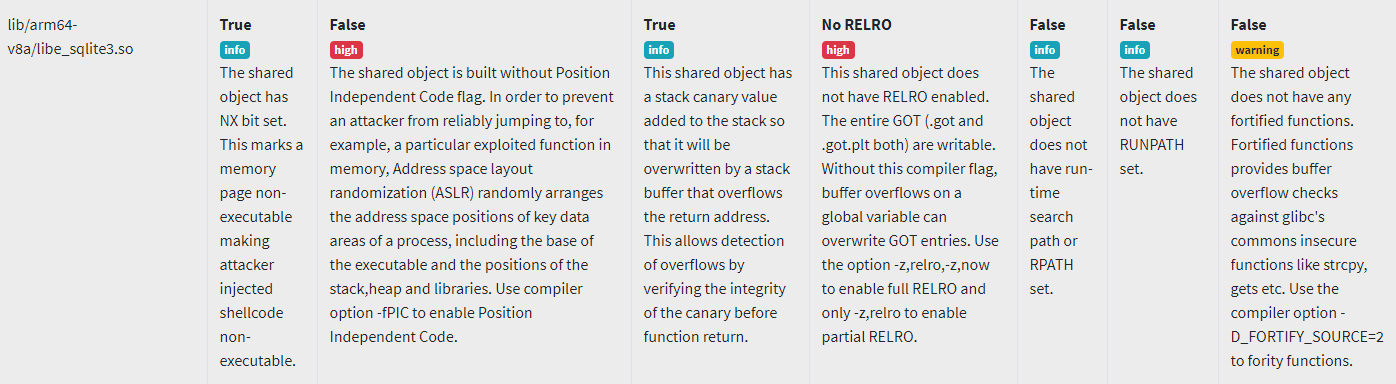

on the following binaries libs I get PIE issue:
Analyzing lib/arm64-v8a/libe_sqlite3.so
Analyzing lib/arm64-v8a/libmono-btls-shared.so
Analyzing lib/arm64-v8a/libmono-native.so
Analyzing lib/arm64-v8a/libmonodroid.so
Analyzing lib/arm64-v8a/libSkiaSharp.so
Analyzing lib/arm64-v8a/libxamarin-app.so
Analyzing lib/armeabi-v7a/libe_sqlite3.so
Analyzing lib/armeabi-v7a/libmono-btls-shared.so
Analyzing lib/armeabi-v7a/libmono-native.so
Analyzing lib/armeabi-v7a/libmonodroid.so
Analyzing lib/armeabi-v7a/libSkiaSharp.so
Analyzing lib/armeabi-v7a/libxamarin-app.so
Analyzing lib/x86/libe_sqlite3.so
Analyzing lib/x86/libmono-btls-shared.so
Analyzing lib/x86/libmono-native.so
Analyzing lib/x86/libmonodroid.so
Analyzing lib/x86/libSkiaSharp.so
Analyzing lib/x86/libxamarin-app.so
Analyzing lib/x86_64/libe_sqlite3.so
Analyzing lib/x86_64/libmono-btls-shared.so
Analyzing lib/x86_64/libmono-native.so
Analyzing lib/x86_64/libmonodroid.so
Analyzing lib/x86_64/libSkiaSharp.so
Analyzing lib/x86_64/libxamarin-app.so

How could I Use compiler option -fPIC to enable Position Independent Code. ???

[grendello]

@anda5 regarding your first set of warnings - what build of your application did you submit for scanning? Debug or Release?
Regarding the PIE issue - the diagnostics is wrong. PIE applies only when linking executables, while Xamarin.Android native runtime is all shared libraries, in which case one should use the -fPIC/-fpic options, if supported by the target architecture - Xamarin.Android uses these options.

[anda5]

I scan the release apk, and I used Target Android version 10. Also I try to do the same scan using BugSweeper app from xamarin-forms/samples and I get the same result. Initialy i tought that if I will have the last Xamarin.Forms version it will work, but not.
@grendello So you suggest that the scanning libs disgnostics are wrong?

[grendello]

@anda5 yes, and not only regarding PIE but also regarding e.g. _FORTIFY_SOURCE=2 - this flag is added automatically by Android NDK when bulding. RELRO is half right - currently we pass it only when building with g++ but that's going to change soon. The diagnostics about missing PIC is also incorrect, that option is also added automatically by the NDK (and we specify it ourselves to be certain, too)

[anda5]

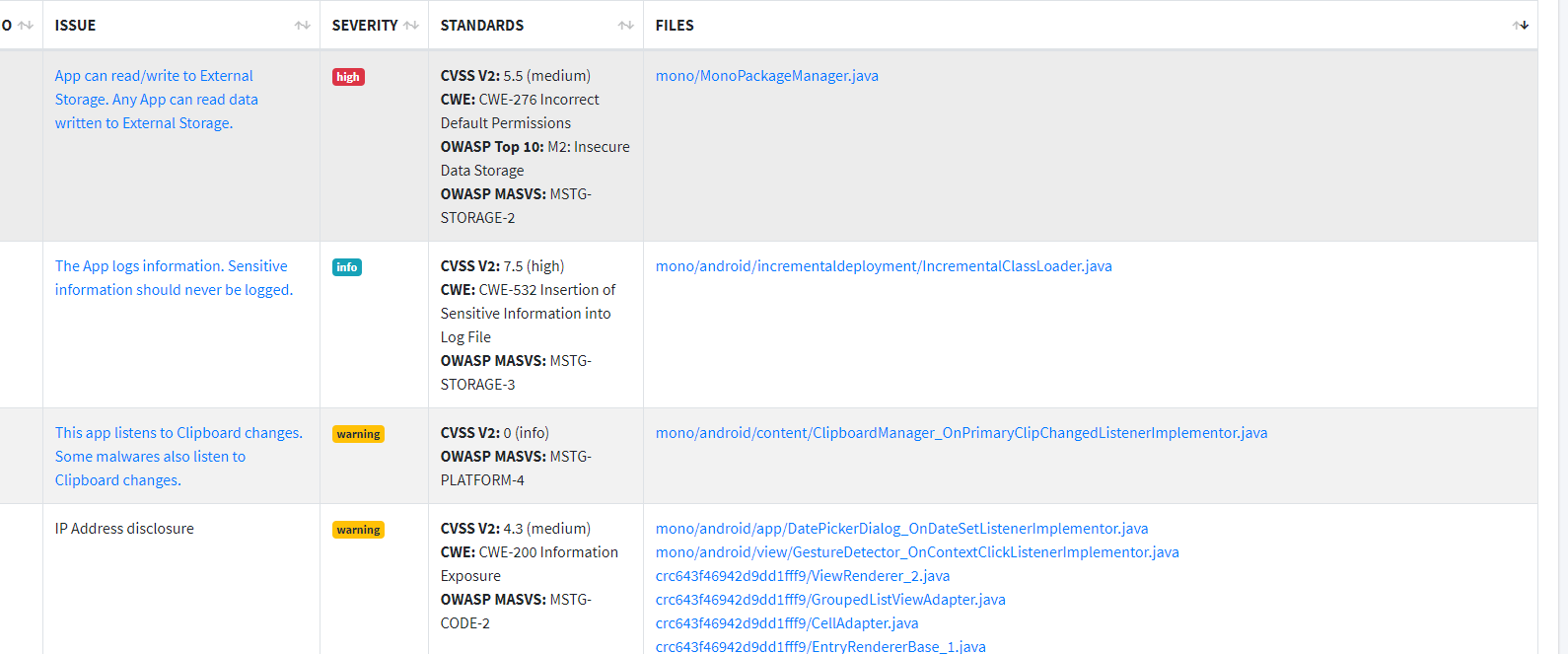

Look at this full scan report, maybe it helps:
app_scan.pdf

[grendello]

@anda5 the IP address disclosure is caused by a regexp which looks for the x.x.x.x pattern, where each x is an up to 3-digit sequence. However, in our case it matches a ... version number

[anda5]

So I should open this issue to MOBSF

[grendello]

Another diagnostics that's not correct is the lack of stack fortification, while we build with the strong stack protector. @anda5 I'm sorry, but this report is mostly wrong.

[anda5]

Do you know an better tool for scanning the security? It will be very helpful for me.

[grendello]

@anda5 Static analysis is a tricky business and all and any results you get need to be examined with a thorough understanding and analysis of the reported issue. In the past I used Coverity, it was good. Note that our native code uses built-in clang static analyzers (we don't distribute the binaries we build with these analytics built in as they are very slow, but we do build them), and such analyzers do a better job of spotting both source and runtime issues since they instrument the binary code and are able to analyze the source code as it's being compiled.

If your application builds any native code, I would strongly suggest you read up on all the sanitizers here. A good idea is to use strong stack protector when building native code and also, if possible, run it under a leak detector (like valgrind)

[anda5]

@grendello thank you so much for investigating this, and also for the clarification.

[grendello]

@anda5 you're welcome! Also, for managed code you might want to get interested in Roslyn static analyzers. Xamarin.Android recently added support for Roslyn analyzers for our own code, if you want to see how it is integrated into the build system.
