TablePress Extension: Chart.js

Create a Chart.js using TablePress as data source for WordPress

📚 Index

• About
• Install
• Usage
• Parameters
  • id
  • chart
  • label
  • data
  • color
  • height
  • first
  • last
• Donate to Developer
• ToDo
• Credits
• Changelog

📄 About

This plugin code base and idea is a modification of TablePress Extension: Chartist.

💻 Install

Prerequisite: The TablePress plugin

1. Download and extract the ZIP file.
2. Upload the folder "tablepress_chartjs" to the "wp-content/plugins/" directory of your WordPress installation, e.g. via FTP.
3. Activate the plugin "TablePress Extension: Chart.js" on the "Plugins" screen of your WordPress Dashboard.

📈 Usage

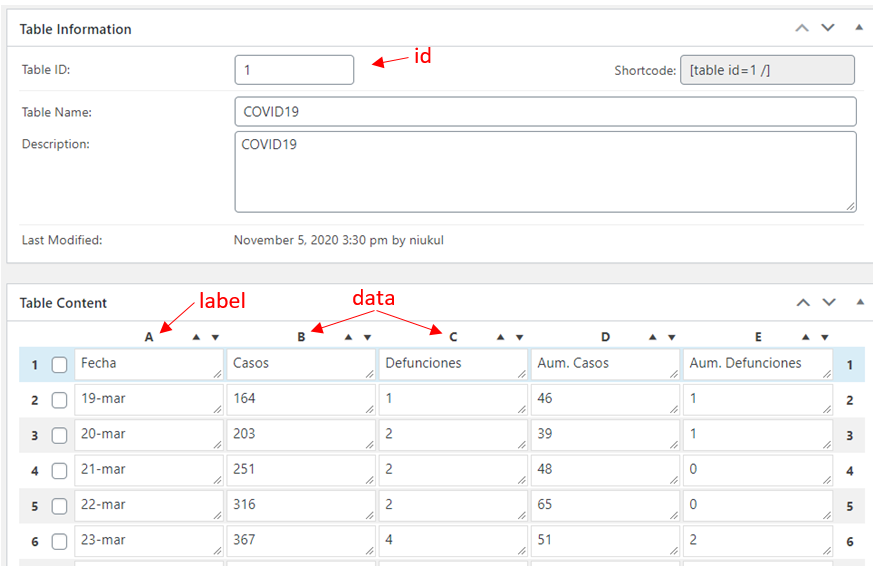

Use the Shortcode [tp-chartjs id=N /]

Example:

[tp-chartjs id=1 label=A data=B,C/]

To create a chart from the TablePress ID 1 where label are column A, and dataset points are columns B and C.

Result:

📑 Parameters

id

TablePress ID reference

• Example: [tp-chartjs id=1/]
• Value: Integer id
• Required

chart

Chart type used

• Example: [tp-chartjs id=1 label=A data=B,C chart=line/]
• Values: Select one of this
  • line: Vertical
  • bar: Vertical Bar
  • sbar: Stacked Vertical Bar
  • hbar: Horizontal Bar
  • hsbar: Horizontal Stacked Bar
• Default: line

label

Column Axis label

• Example: [tp-chartjs id=1 label=A data=B,C/]
• Value: One character from TablePress columns [A-Z]
• Default: A

data

Column(s) datasets used to populate chart

• Example: [tp-chartjs id=1 label=A data=B,C,D,E/]
• Values: One or more comma separated columns character [A-Z]
• Default: B

color

The colors you can use in populated lines or bars.

• Example: [tp-chartjs id=1 label=A data=B,C color=blue,red/]
• Values: One or more comma separated colors
  • blue
  • red
  • orange
  • yellow
  • green
  • purple
  • grey
  • black
• Default: blue,red,orange,yellow,green,purple,grey,black

On example column B draws blue and column C draws red

height

Declare height of canvas HTML object

• Example: [tp-chartjs id=1 label=A data=B,C height=300/]
• Values: Integer value transformed into pixels
• Default: Automatic

first

Declare that only use the first {n} rows of data

• Example: [tp-chartjs id=1 label=A data=B,C first=10/]
• Value: Integer value offset
• Default: All data

last

Declare that only use the last {n} rows of data

• Example: [tp-chartjs id=1 label=A data=B,C last=10/]
• Values: Integer value offset
• Default: All data

💳 Donate to Developer

If you like my work, please donate.

✅ ToDo

• Chart Title
• Vertical Bar chart support
• Pie chart support
• Stacked chart support
• Order data
• Detect Mobile devices
• Title of Chart show or not
• Modern Dark Theme

🏆 Credits

• Muriz Serifovic for creating TablePress Extension: Chartist.
• Tobias Bäthge for creating TablePress
• Alejandro García DevelopArts
