DiffEqBenchmarkServer

This is the node server behind the working of the DiffEqBot. Follow the step by step instructions for deploying your own bot.

Instructions

1. Make the configuration file config.json using the template sample.config.json. Enter the details of the admin in the admin field and name of your organization on GitHub in the org field.
2. Make an empty heroku app with name of your choice. Place the url of your app in the field homepage_url of the configuration file.
3. Make 2 accounts - one on GitHub and the other on Gitlab with the same handle. Plug the handle in the field bot_name.
4. From the GitHub account, make a personal access token with public_repo scope (you can make one here). Plug this access token in the field github_account.access_token of configuration.
5. From the Gitlab account, make a personal access token with api and read_repository scopes. Place this token in the gitlab_account.access_token field of configuration file.

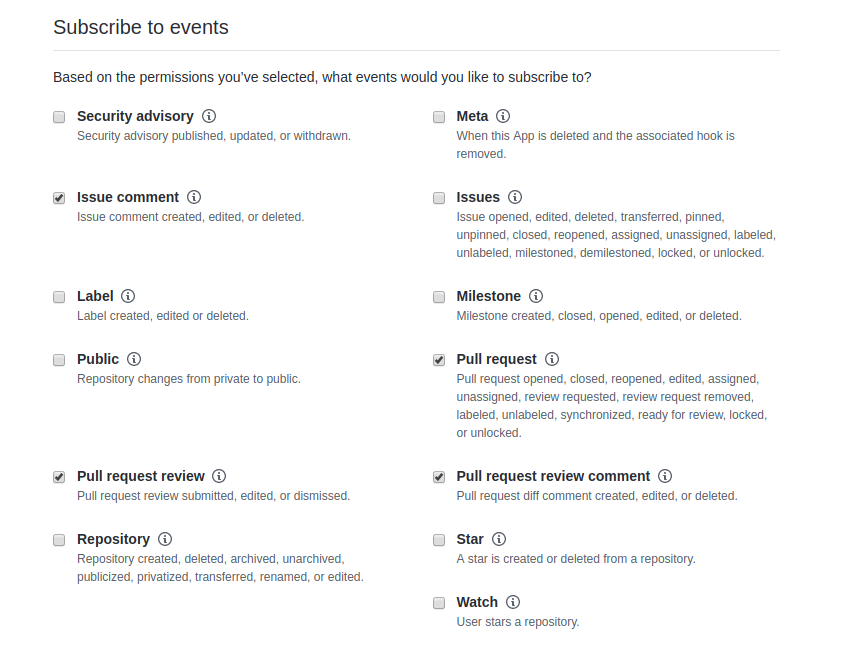

6. Under you organization, make a private GitHub App with webhook URL to some secret endpoint of the heroku app. Add that endpoint to the github_app.bot_endpoint field of config. Give read and wite permissions to Issues and Pull Requests. Subscribe to events Issue comment, Pull Request Review, Pull Request and Pull Request Review Comment. It should look like this -
7. Copy the generated client_id and client_secret to the github_app.client_id and github_app.client_secret field of config respectively. Install the app in your organization.
8. Now make an empty repository on GitHub for storing reports (can be under any owner, but the bot account should have write access to it). State that repository in the reports_repo field of config.
9. Make a private repo on Gitlab (for triggering jobs) (can be under any owner, but the bot account should have write access to it). It should have a run.jl file in it's root. This script would be passed repository name, pull request number, latest commit hash and the root of the heroku app in order when its executed. This script should do the necessary benchmarking job for your needs and send the report back to the fallback url with endpoint /report in the format as described in the Report Format section along with a secret. This secret should be placed in the gitlab_runner_secret field of config.
10. Place the handles of users to whom you want to give access to running benchmarks in benchmarkers array of config.
11. To enable the bot for a particular repository of your organization, add the name of the repository in the registered_repos field.
12. Deploy the app with this config file on heroku. Keep this config file safe and secure.

Report Format

The report should look something like this -

{
  "key": "much_secret_very_secure",
  "report": {
    "repo": "Sample",
    "pr": 1,
    "commit": "abcdefabcdefabcdefabcdefabcdefabcdefabcd",
    "items": [
      {
        "type": "table",
        "id": "regres",
        "title": "Performance Ratios for various methods",
        "data": {
          "head": [
            "Algorithm",
            "Time Ratio",
            "Memory Ratio"
          ],
          "table": [
            [
              "BS3",
              0.953891982903769,
              1
            ],
            [
              "KenCarp4",
              1.0051193674286583,
              1
            ],
            [
              "Rosenbrock23",
              1.0043137254901962,
              1
            ],
            [
              "Tsit5",
              0.9872329977903265,
              1
            ],
            [
              "Vern6",
              1.0316647705726203,
              1
            ],
            [
              "Vern7",
              0.9625197958824564,
              1
            ],
            [
              "Vern9",
              0.000001349104901926398,
              0.00005408944201892311
            ]
          ]
        }
      },
      {
        "type": "image",
        "id": "img_LotkaVolterra",
        "title": "LotkaVolterra",
        "data": "https://i.imgur.com/Crl9Ut2.png"
      }
    ]
  }
}

The field items is an array which contains objects of format

{
	"type": "",
	"id": "",
	"title": "",
	"data": ""
}

Currently there are two types of items supported - table and image. For table, data field should be an object with two arrays head and table. head is the array of column names while table is array of array of the table data. For image type, data is simply the link to the image.
