Niels9001/DocumentRender UX update pt1

[niels9001]

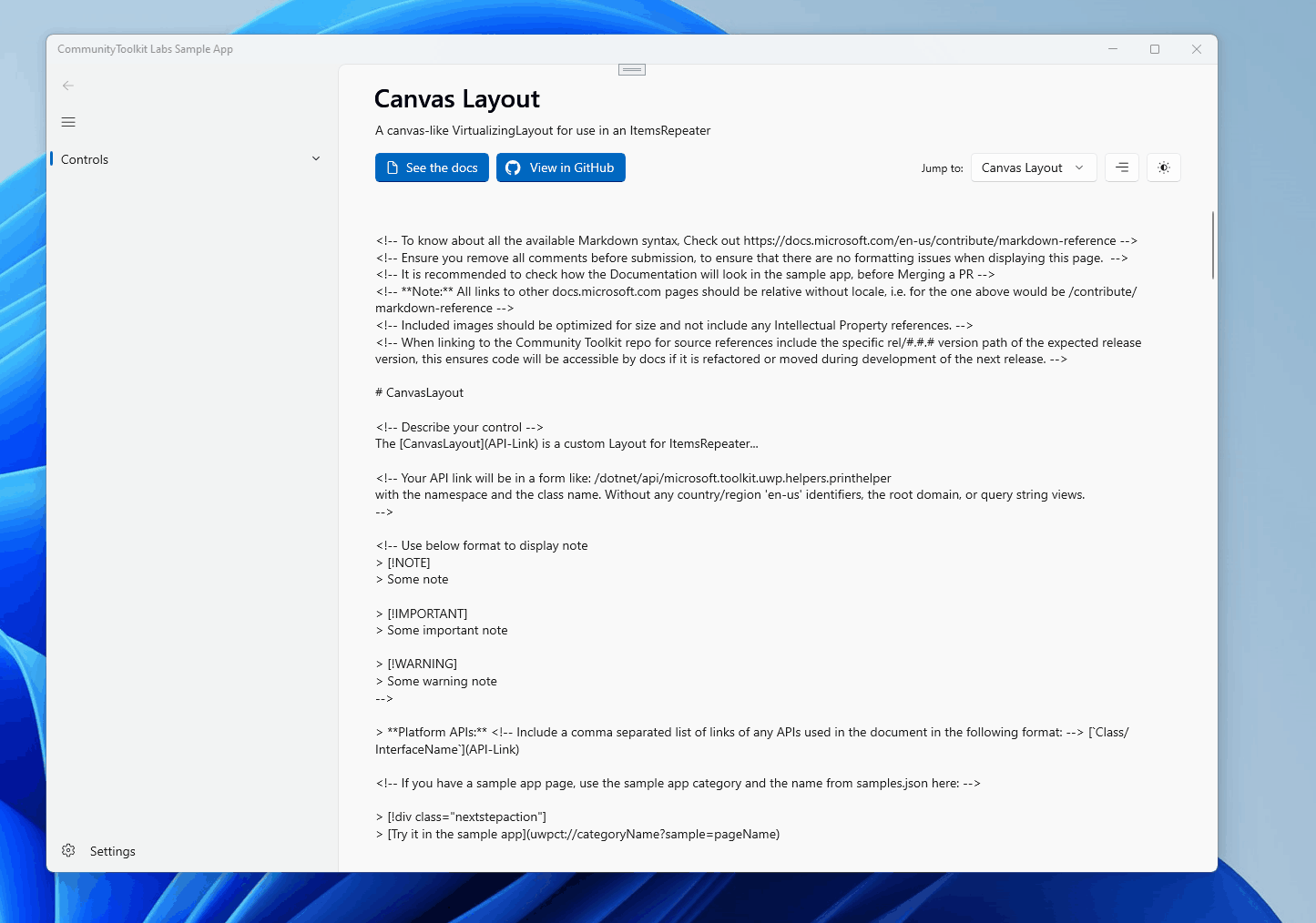

Porting over some changes from the UX exploration to the Sample Gallery.

Things to consider:

• There's now a Title and Description textblock that reads the DisplayName and Description from the Metadata.. Not sure if that is the way to go (as duplicate information might be in the .md itself)?

[net-foundation-cla]

All CLA requirements met.

[michael-hawker]

@niels9001 added comment for at least one thing causing the build to fail (unsupported property from uno, so just needs a guard prefix). Also you'll need to rebase the branch to get the header updates from main.

[michael-hawker]

@niels9001 the muxc:BackdropMaterial.ApplyToRootOrPageBackground I think is both for WinUI 2 and 3 right?

"D:\a\Labs-Windows\Labs-Windows\template\lab\ProjectTemplate.sln" (default target) (1:2) ->
"D:\a\Labs-Windows\Labs-Windows\template\lab\samples\ProjectTemplate.WinAppSdk\ProjectTemplate.WinAppSdk.csproj" (default target) (6:6) ->
(MarkupCompilePass2 target) ->
  D:\a\Labs-Windows\Labs-Windows\common\CommunityToolkit.Labs.Shared\NavigationPage.xaml(8,7): XamlCompiler error WMC0010: Unknown attachable member 'BackdropMaterial.ApplyToRootOrPageBackground' on element 'Page' [D:\a\Labs-Windows\Labs-Windows\template\lab\samples\ProjectTemplate.WinAppSdk\ProjectTemplate.WinAppSdk.csproj]
  D:\a\Labs-Windows\Labs-Windows\common\CommunityToolkit.Labs.Shared\TabbedPage.xaml(11,7): XamlCompiler error WMC0010: Unknown attachable member 'BackdropMaterial.ApplyToRootOrPageBackground' on element 'Page' [D:\a\Labs-Windows\Labs-Windows\template\lab\samples\ProjectTemplate.WinAppSdk\ProjectTemplate.WinAppSdk.csproj]

Though not supported on Uno. I know we use win: for anything in UWP.

@jeromelaban is there another special one for stuff that's specific to WinUI 2/3 from muxc? That's not called out in the doc specifically. Or could/would we use an IsType/PropertyPresent conditional, would that work? https://docs.microsoft.com/en-us/windows/uwp/debug-test-perf/conditional-xaml

[niels9001]

@michael-hawker Actually, I think with WinUI 3 this API is not supported and requires code behind (and will only work on W11, not on W10..

Shall I leave it out for now? I guess in the future we need some sort of helper class that uses the right API when on WAS vs. UWP.

[michael-hawker]

Thanks @niels9001, I did just follow-up on this, the approach with WinUI 3 is all different for now still yes: MicrosoftDocs/winui-api#121 (comment)

Let's leave the Mica out for now as you've done and we can evaluate an approach for that later either with a polyfill or helper or something else.

[michael-hawker]

Tried out on the web in Codespaces and noticed some issues:

Looks like the metadata isn't getting bound for some reason in the header? This is probably because of unoplatform/uno#2872 - So just switch the bindings to OneWay vs. OneTime you have in the header, and I think that'll resolve it for now.

Also, the C# source code is centered compared to the XAML (so switching between the C#/XAML tabs is causing the text to jump around). Not sure what that may be. The only difference is that it's in an Expander now, eh? So it may be the HorizontalContentAlignment somewhere?

[niels9001]

Tried out on the web in Codespaces and noticed some issues:

Looks like the metadata isn't getting bound for some reason in the header? This is probably because of unoplatform/uno#2872 - So just switch the bindings to OneWay vs. OneTime you have in the header, and I think that'll resolve it for now.

Also, the C# source code is centered compared to the XAML (so switching between the C#/XAML tabs is causing the text to jump around). Not sure what that may be. The only difference is that it's in an Expander now, eh? So it may be the HorizontalContentAlignment somewhere?

Fixed! Metadata now correctly loading and the Pivot not stretches, so its content is now left aligned.

There are some minor visual glitches (e.g. not all icons are correctly loading and seem to occosianlly load MDL2 instead of Fluent Icons. Also the ComboBox does not default to the first item (SelectedIndex=0, but maybe small things we can fix later on?

[michael-hawker]

@niels9001 looking good in Codespaces now (outside of Uno issue unoplatform/uno#4686)

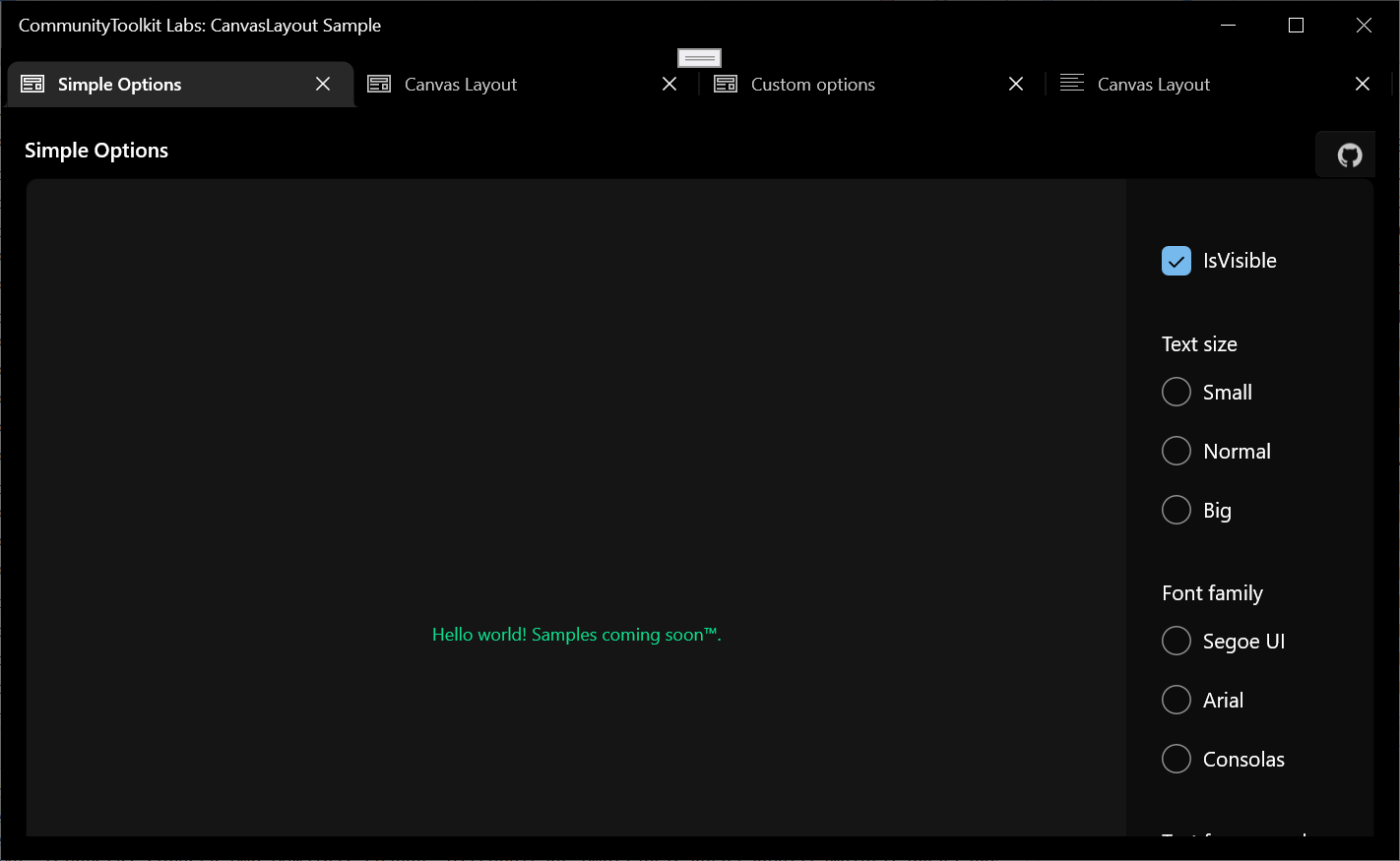

However, I noticed in the TabbedPage view when running experiments that the source code expander isn't visible:

(I like that it fills up the whole app area by default, but think we need a scrollviewer or something around it. (This was just running the UWP head from the CanvasLayout.sln.)

You can see it becomes a bit of an issue when you shrink the app window size too:

[michael-hawker]

Pointed out spots for fixing the issues with the TabbedPage experience. Let me know your thoughts and what you want to tackle now vs. opening an issue for (build conditional to hide header type thing).

Also, don't forget to rebase off main as all the global usings are resolved there.

[michael-hawker]

This seemed clipped on the right-hand side?

[niels9001]

Not seeing any clipping on my side? (Just the icon acts weird).

WASM:

UWP:

[michael-hawker]

Talking about the GitHub button here:

[michael-hawker]

Also should the samples themselves be left-aligned vs. centered?

[niels9001]

Also should the samples themselves be left-aligned vs. centered?

Yeah, good suggestion - looks a bit cleaner. Left aligned now!

[michael-hawker]

Looking good! Will merge now and we have a couple of small things to continue to improve and work on later, for instance #169.
