4x4 Matrix Keypad Interfacing with 8051 Microcontroller

📋 Project Overview

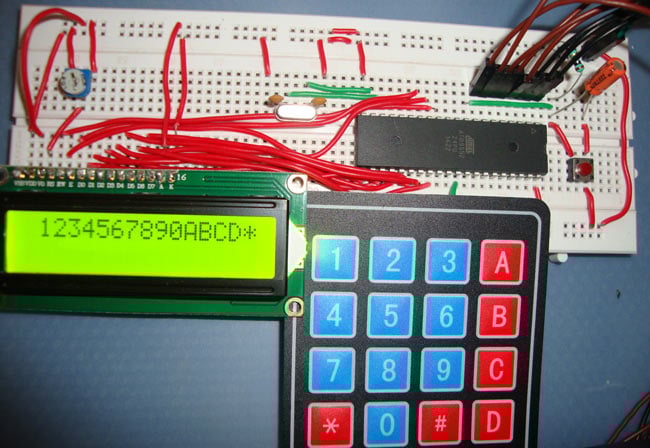

This project demonstrates professional keypad interfacing with the 8051 microcontroller (AT89S52/AT89C51), showcasing fundamental embedded systems design principles. Matrix keypads are essential input devices found in calculators, security systems, ATMs, and various industrial control panels. This implementation uses a systematic row-column scanning technique to detect key presses and display them on a 16x2 LCD.

🎯 Key Features

Efficient GPIO Usage: Interface 16 keys using only 8 GPIO pins through matrix configuration
Row-Column Scanning Algorithm: Systematic detection of key presses with location identification
LCD Display Integration: Real-time display of pressed keys on 16x2 LCD
Debouncing Implementation: Software debouncing for reliable key detection
Scalable Design: Foundation for building calculators, digital locks, and control panels

🔧 Components Required

Component	Specification
Microcontroller	8051 (AT89S52/AT89C51)
Keypad Type	4x4 Matrix (16 keys)
Display	16x2 LCD Module
GPIO Pins Required	8 pins (1 complete port)
Programming Language	Embedded C
Crystal Oscillator	11.0592 MHz
Power Supply	5V DC

📐 Circuit Connections

4x4 Keypad to 8051 Pin Mapping

Keypad Terminal	8051 Port Pin	Function	Direction
Row 1 (R1)	P1.7	Output	Row scanning
Row 2 (R2)	P1.6	Output	Row scanning
Row 3 (R3)	P1.5	Output	Row scanning
Row 4 (R4)	P1.4	Output	Row scanning
Column 1 (C1)	P1.3	Input	Key detection
Column 2 (C2)	P1.2	Input	Key detection
Column 3 (C3)	P1.1	Input	Key detection
Column 4 (C4)	P1.0	Input	Key detection

LCD to 8051 Connections

LCD Pin	8051 Pin	Function
RS	P3.2	Register Select
RW	P3.3	Read/Write
E	P3.4	Enable
D0-D7	P2.0-P2.7	Data Lines

⚙️ How It Works

Understanding 4x4 Matrix Keypad

A 4x4 matrix keypad consists of 16 push buttons arranged in 4 rows and 4 columns:

Each row has one terminal of 4 buttons connected
Each column represents the other terminals of buttons in that column
When a button is pressed, it connects its corresponding row and column

Key Detection Algorithm

The scanning process follows these systematic steps:

Initial Setup:
- Set all rows to Logic 0 (LOW)
- Set all columns to Logic 1 (HIGH)
Column Detection:
- When a button is pressed, the column becomes shorted to the row
- The column drops to Logic 0, identifying which column the button is in
Row Detection:
- Reverse the logic levels (rows = HIGH, columns = LOW)
- The pressed button's row becomes LOW due to connection with column
- Scan all rows to find which one is at Logic 0
Key Identification:
- Combine row and column information
- Display corresponding character on LCD
Continuous Monitoring:
- Loop continuously checks for button presses using while(1)

💻 Code Structure

Main Functions

void lcd_init()          // Initialize LCD in 8-bit mode
void lcd_cmd()           // Send commands to LCD
void lcd_data()          // Send data to LCD
void row_finder1()       // Find row for column 1
void row_finder2()       // Find row for column 2
void row_finder3()       // Find row for column 3
void row_finder4()       // Find row for column 4
void main()              // Main scanning loop

Keypad Layout

[1] [2] [3] [A]
[4] [5] [6] [B]
[7] [8] [9] [C]
[*] [0] [#] [D]

🚀 Applications

Application Domain	Use Cases	Benefits
Security Systems	Digital locks, access control, alarm systems	Password entry, authentication
Consumer Electronics	Calculators, microwave ovens, washing machines	Numeric input, menu navigation
Telecommunications	Landline phones, intercom systems	Dial pad functionality
Industrial Control	CNC machines, process controllers, HMI panels	Parameter input, command entry
Medical Devices	Patient monitors, diagnostic equipment	Settings configuration
Automotive	Car security systems, GPS devices	PIN entry, system configuration

📊 Technical Specifications

Scanning Performance

Crystal Frequency: 11.0592 MHz
Scan Time: 100-200 ms per complete scan
Detection Rate: 5,000-10,000 scans/second
Human Response Time: 50-100 ms (well within detection capability)

Electrical Characteristics

Internal Pull-ups: Port 1 has 10-50kΩ internal pull-ups (external resistors not required)
Port 0 Usage: Requires external 10kΩ pull-up resistors
Maximum Cable Length: 30-50 cm (without additional circuitry)
Extended Distance: Use shielded cables and termination resistors for 2-3 meters

🛠️ Implementation Tips

Software Debouncing

Add a 20-50 ms delay after detecting a keypress before re-checking:

msdelay(30);  // Software debouncing delay

Hardware Debouncing

Add a 0.1µF capacitor in parallel with each switch for cleaner signals.

Multiple Keypad Support

Method 1: Use different ports (e.g., Port 1 and Port 2 for two keypads)
Method 2: Use multiplexing with ICs like 74HC138 for multiple keypads with fewer pins

Debugging Without LCD

Use 4 LEDs to show binary representation of key press (0-15)
Send key data via UART to PC terminal
Use Proteus simulation with virtual terminal

⚠️ Important Notes

Port Selection

Port 1: Has internal pull-ups, ideal for keypad columns (no external resistors needed)
Port 0: Requires external 10kΩ pull-up resistors on column pins
If using Port 0, modify connections and add pull-up resistors

Key Ghosting

When detecting multiple simultaneous key presses:

Ghosting occurs when three corners of a rectangle are pressed
Add diodes (1N4148) in series with each row for isolation
Required for N-key rollover functionality

Power Considerations

Ensure a stable 5V power supply for both the microcontroller and LCD
Add 0.1µF decoupling capacitors near IC power pins

📚 Related Projects

Explore more keypad interfacing tutorials across different platforms:

🎓 Learning Outcomes

After completing this project, you will understand:

✅ Matrix keypad internal structure and working principle
✅ Row-column scanning algorithm implementation
✅ Efficient GPIO usage through multiplexing
✅ LCD interfacing with 8051 microcontroller
✅ Embedded C programming for input devices
✅ Debouncing techniques (software and hardware)
✅ Foundation for building interactive embedded applications

📖 Prerequisites

Before starting this project, it's recommended to complete:

LCD Interfacing with 8051 Microcontroller
Basic understanding of 8051 architecture
Familiarity with Embedded C programming
Knowledge of GPIO configuration

🔍 Troubleshooting

Issue: Keypad shows "1111111" continuously when using Port 0

Solution: Port 0 requires external pull-up resistors. Add 10kΩ resistors between each column pin and VCC.

Issue: Multiple characters displayed for single key press

Solution: Implement proper debouncing by increasing the delay in msdelay() function or adding hardware debouncing capacitors.

Issue: Inconsistent key detection

Solution:

Check all connections for loose wires
Verify proper logic levels with multimeter
Increase scan delay in main loop

Issue: No display on LCD

Solution:

Verify LCD contrast adjustment (potentiometer)
Check LCD power supply (5V)
Confirm LCD initialization code is executing

📄 License

This project is open-source and available for educational purposes. Feel free to modify and enhance according to your requirements.

🤝 Contributing

Contributions are welcome! If you have improvements or bug fixes:

Fork the repository
Create your feature branch
Commit your changes
Push to the branch
Open a Pull Request

📞 Support

For detailed explanation, circuit diagrams, and complete code, visit:
CircuitDigest - Keypad Interfacing with 8051

⭐ Acknowledgments

Tutorial and code provided by CircuitDigest
Circuit diagram and detailed explanations from the original article
Community feedback and improvements

Happy Making! 🚀

Master the fundamentals of embedded input devices with this comprehensive 4x4 matrix keypad interfacing project!
