Mbed isn't recognizing the total SRAM on TARGET_NUCLEO_WB55RG #12975
Description
Description of defect

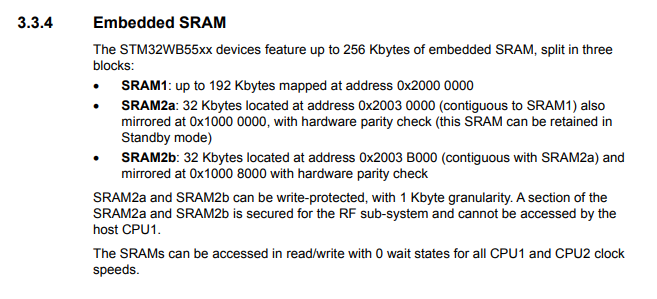

The mbed isn't recognizing the total SRAM on NUCLEO WB55RG. It has two SRAM, one of size 192kb, and other of size 64KB with parity check. But the result from compilation and system info debug results only in 192KB as total.
Result from compilation:
Total Static RAM memory (data + bss): 119272(+0) bytes
Total Flash memory (text + data): 615548(+0) bytes
Result from system info debug:
================= CPU STATS =================
Idle: 91% Usage: 9% Peak: 67%
================ HEAP STATS =================
Heap size: 54971 / 75936 bytes
================ THREAD STATS ===============
Current Thread: memory_monitor Thread: 0x2001A818 Stack size: 872 / 4096
Current Thread: rtx_idle Thread: 0x20016D08 Stack size: 280 / 768
Current Thread: shared_event_queue Thread: 0x200023E4 Stack size: 192 / 2048
Current Thread: coap_thread Thread: 0x20019AFC Stack size: 176 / 2048
Current Thread: thread1 Thread: 0x2001AF70 Stack size: 184 / 1280
Current Thread: thread2 Thread: 0x20018EE8 Stack size: 1336 / 8192
Current Thread: thread3 Thread: 0x2001944C Stack size: 848 / 4096
Current Thread: thread4 Thread: 0x2001AC14 Stack size: 744 / 2048
Current Thread: rtx_timer Thread: 0x20016CC4 Stack size: 104 / 768
Current Thread: stm_queue Thread: 0x20020F78 Stack size: 984 / 2048
Current Thread: thread5 Thread: 0x2001A484 Stack size: 1072 / 2048
Current Thread: main Thread: 0x20016BB8 Stack size: 1792 / 8192
Current Thread: ppp Thread: 0x20021B78 Stack size: 684 / 816
Current Thread: thread6 Thread: 0x20019A3C Stack size: 8224 / 16384
Current Thread: application_unnamed_thread Thread: 0x2001D690 Stack size: 464 / 1024
Current Thread: nanostack_event_thread Thread: 0x200156B8 Stack size: 1400 / 8192
Current Thread: shared_highprio_event_queue Thread: 0x20001DBC Stack size: 368 / 1024
The sum is: 75936 + 119272 = 195208
The reason for this can probably be the information on the file index.json, inside mbed-os/tools/arm_pack_manager, where is pointed that STM32WB55RGVx has only one memory bank, despite the fact that it was configured as 256kb SRAM, maybe that's the reason.
If I'm doing something wrong can someone please help?
Target(s) affected by this defect ?
NUCLEO_WB55RG
Toolchain(s) (name and version) displaying this defect ?
GCC_ARM
What version of Mbed-os are you using (tag or sha) ?
5.15.2
What version(s) of tools are you using. List all that apply (E.g. mbed-cli)
mbed-cli - version 1.10.1
How is this defect reproduced ?
Enable mbed memory stats on the mbed_app.json and program the NUCLEO_WB55RG board, sum the HEAP size and compilation size to get total
