feat(Overlay): slide away from anchor based on position #1322

dgreif · 2021-06-23T23:09:59Z

The main goal here is to prevent scrollbars from showing briefly when an AnchoredOverlay is opened. This can happen if the Overlay portion ends up slightly outside the currently visible area upon creation, or because of the slide animation. There are two main changes to correct this behavior

Pass anchorSide from useAnchoredPosition all the way into Overlay. With this information, we can infer which direction the Overlay should "slide" when it is opened. We always want to to start slightly overlapping the anchor and then move into position. Previous behavior had it always sliding "up", which is only desired if the Overlay is positioned above its anchor. If not passed an anchorSide, there will now be no slide animation.
Remove the visibility setting from Overlay. This was a bandaid to handle scenarios where the Overlay contents would briefly flash before moving into the correct position. While setting visibility removed the main visible flash, it did not prevent scrollbars from flashing if the unpositioned content happened to overflow the current frame. The more correct solution here is to replace a few useEffect with useLayoutEffect, which allows AnchoredOverlay to create the Overlay, calculate position, and re-position the Overlay before the browser paints.

Closes #1231

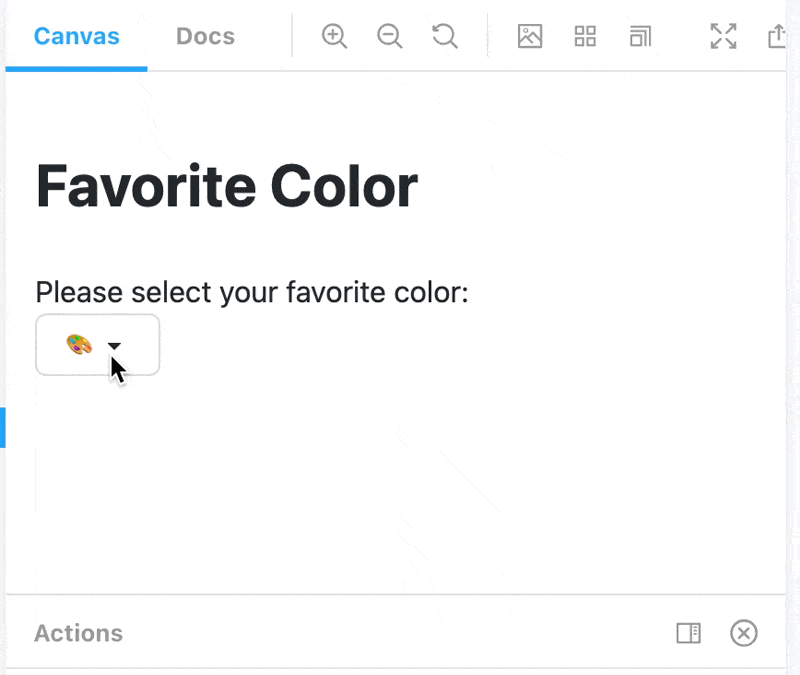

Screenshots

Side	Animation
Bottom
Right
Top
Left
No Side Provided

Merge checklist

changeset-bot · 2021-06-23T23:10:01Z

⚠️ No Changeset found

Latest commit: 39b1d63

Merging this PR will not cause a version bump for any packages. If these changes should not result in a new version, you're good to go. If these changes should result in a version bump, you need to add a changeset.

This PR includes no changesets

When changesets are added to this PR, you'll see the packages that this PR includes changesets for and the associated semver types

Click here to learn what changesets are, and how to add one.

Click here if you're a maintainer who wants to add a changeset to this PR

vercel · 2021-06-23T23:10:01Z

This pull request is being automatically deployed with Vercel (learn more).
To see the status of your deployment, click below or on the icon next to each commit.

🔍 Inspect: https://vercel.com/primer/primer-components/6tF9Rmx2gZnDZ9VzRhUvqK6EtVa7
✅ Preview: https://primer-components-git-overlay-transition-from-anchor-primer.vercel.app

smockle · 2021-06-25T03:39:24Z

From @dgreif in #1322 (comment):

The main goal here is to prevent scrollbars from showing briefly when an AnchoredOverlay is opened.

To clarify: This PR prevents the page from flashing scrollbars (as demonstrated in #1231). The scrollbar flash added via #1276 to SelectPanel is still desired and has been retained.

src/AnchoredOverlay/AnchoredOverlay.tsx

src/Overlay.tsx

- https://dequeuniversity.com/rules/axe/4.1/aria-dialog-name - https://dequeuniversity.com/rules/axe/4.2/presentation-role-conflict - https://www.w3.org/TR/wai-aria-practices-1.1/examples/menu-button/menu-button-links.html First, 'Overlay's aren’t 'listbox'es, because (when used in 'DropdownMenu' or 'ActionMenu') they contain 'menuitem's, 'menuitemradio's, or 'menuitemcheckbox'es. Second, 'Overlay's aren’t 'dialog's, because (as demonstrated in the WAI ARIA practices page linked above), 'menu's need not be contained in a 'dialog', and also (as noted in the 'aria-dialog-name' link above), 'dialog's must have an 'aria-label', 'aria-labelledby', or 'title', but neither 'DropdownMenu' nor 'ActionMenu' have any kind of header element that could be used for this. Third, if 'Overlay's are 'none', they can’t be focusable (as noted in the 'presentation-role-conflict' link above), but one of our hooks (maybe 'FocusTrap', maybe 'FocusZone') was setting 'tabIndex' to '0' (in the test component), because it did not contain a focusable child. This PR adds a focusable button child so the 'none' 'Overlay' container won’t receive 'tabIndex' '0'.

* feat(Overlay): slide away from anchor based on position * fix: handle position changes when re-opening AnchoredOverlay * refactor: use js animation for slide to fix safari * fix: Tests were failing with Axe violations - https://dequeuniversity.com/rules/axe/4.1/aria-dialog-name - https://dequeuniversity.com/rules/axe/4.2/presentation-role-conflict - https://www.w3.org/TR/wai-aria-practices-1.1/examples/menu-button/menu-button-links.html First, 'Overlay's aren’t 'listbox'es, because (when used in 'DropdownMenu' or 'ActionMenu') they contain 'menuitem's, 'menuitemradio's, or 'menuitemcheckbox'es. Second, 'Overlay's aren’t 'dialog's, because (as demonstrated in the WAI ARIA practices page linked above), 'menu's need not be contained in a 'dialog', and also (as noted in the 'aria-dialog-name' link above), 'dialog's must have an 'aria-label', 'aria-labelledby', or 'title', but neither 'DropdownMenu' nor 'ActionMenu' have any kind of header element that could be used for this. Third, if 'Overlay's are 'none', they can’t be focusable (as noted in the 'presentation-role-conflict' link above), but one of our hooks (maybe 'FocusTrap', maybe 'FocusZone') was setting 'tabIndex' to '0' (in the test component), because it did not contain a focusable child. This PR adds a focusable button child so the 'none' 'Overlay' container won’t receive 'tabIndex' '0'. * fix: Resolve lint errors Co-authored-by: Clay Miller <[email protected]>

* add utility props to Box * update box docs * export box props * update snapshots * Create green-worms-nail.md * AvatarStack story in storybook * Update .changeset/green-worms-nail.md Co-authored-by: Cole Bemis <[email protected]> * Update docs/content/Box.md Co-authored-by: Cole Bemis <[email protected]> * Remove duplicate border system prop definitions * Remove duplicate grid system props definitions * Update FlexProps definition * Remove duplicate position system prop definitions * Update Box documentation * Update BoxProps * Update Box docs * Update Box props * fix: Type 'DropdownButton' as 'button' (#1318) * fix: Type 'DropdownButton' as 'button' * chore: Update snapshots * chore: Set test directory via config rather than flag (#1319) * feat(useFocusZone): update active-descendant on mousemove (#1308) * fix: Split `<Item>` labels (#1320) * fix: Separate 'Item' content into 'label' and 'description' * fix: Only add 'aria-describedby' when 'description' exists * fix: Memoize 'id' so 'Item's and labels match * fix: Don’t rely on 'id' which is possibly not globally-unique * fix: Restore semi-full-width 'Item' dividers, without giving up the semantic nesting. By “semantic nesting”, I mean that the 'Item' label and description are now siblings, which is preferable to the previous implementation, where the description node was a child of the label node. As a general principle, we should align DOM hierarchies with information hierarchies. An analogy: If I were using a bulleted list to describe a dog, I would not indent its breed as a second-level bullet beneath the bullet for its name, because a dog’s breed is not dependent/derived data from its name. Similarly, description is not dependent/derived from label, and so should not be nested in DOM. * fix: Reduce styled-components class permutations. https://www.joshwcomeau.com/css/styled-components/ * feat(Overlay): slide away from anchor based on position (#1322) * feat(Overlay): slide away from anchor based on position * fix: handle position changes when re-opening AnchoredOverlay * refactor: use js animation for slide to fix safari * fix: Tests were failing with Axe violations - https://dequeuniversity.com/rules/axe/4.1/aria-dialog-name - https://dequeuniversity.com/rules/axe/4.2/presentation-role-conflict - https://www.w3.org/TR/wai-aria-practices-1.1/examples/menu-button/menu-button-links.html First, 'Overlay's aren’t 'listbox'es, because (when used in 'DropdownMenu' or 'ActionMenu') they contain 'menuitem's, 'menuitemradio's, or 'menuitemcheckbox'es. Second, 'Overlay's aren’t 'dialog's, because (as demonstrated in the WAI ARIA practices page linked above), 'menu's need not be contained in a 'dialog', and also (as noted in the 'aria-dialog-name' link above), 'dialog's must have an 'aria-label', 'aria-labelledby', or 'title', but neither 'DropdownMenu' nor 'ActionMenu' have any kind of header element that could be used for this. Third, if 'Overlay's are 'none', they can’t be focusable (as noted in the 'presentation-role-conflict' link above), but one of our hooks (maybe 'FocusTrap', maybe 'FocusZone') was setting 'tabIndex' to '0' (in the test component), because it did not contain a focusable child. This PR adds a focusable button child so the 'none' 'Overlay' container won’t receive 'tabIndex' '0'. * fix: Resolve lint errors Co-authored-by: Clay Miller <[email protected]> * Generate prop documentation (#1323) * Add new filesystem source * Add component metadata type * Create Props component * Update props table * Handle empty and error states * Add required label * Update required prop styles * Clean up code comments * Remove filesystem plugin * Remove extra markdown file * Add component comment Co-authored-by: Clay Miller <[email protected]> * Improve treeshaking by setting package.json sideEffects (#1332) * fix: mark sideEffects free * fix: update sideEffects delcaration in package.json to improve treeshaking * fix: update sideEffects delcaration in package.json to improve treeshaking * fix: BaseStyles doesnt use sideeffects * chore: add changeset * Update Box documentation * Update BoxProps * Update Box docs * Update Box props * Remove AvatarStack story * Update .changeset/green-worms-nail.md Co-authored-by: Cole Bemis <[email protected]> Co-authored-by: Clay Miller <[email protected]> Co-authored-by: Dusty Greif <[email protected]> Co-authored-by: Matthew Costabile <[email protected]>
