[web] Support external textures for CanvasKit renderer

[xtyxtyx]

This PR adds the ability to use the Texture widget on web when using the CanvasKit renderer.

Fixes flutter/flutter#119649

While HtmlElementView works well on the html renderer, it consumes significantly more GPU memory on the CanvasKit renderer (around 100mb per element) because the CanvasKit renderer needs to create one more surface per HtmlElementView.

Also due to the limit that browsers have on the number of WebGL contexts. It's impossible to have many HtmlElementView, for example VideoPlayers, to render at the same time. flutter/flutter#113699

Textures can also help to make images render faster on browsers that don't have ImageDecoder. flutter/flutter#113713

With textures it's also easier to render SVG images performantly on web browsers:

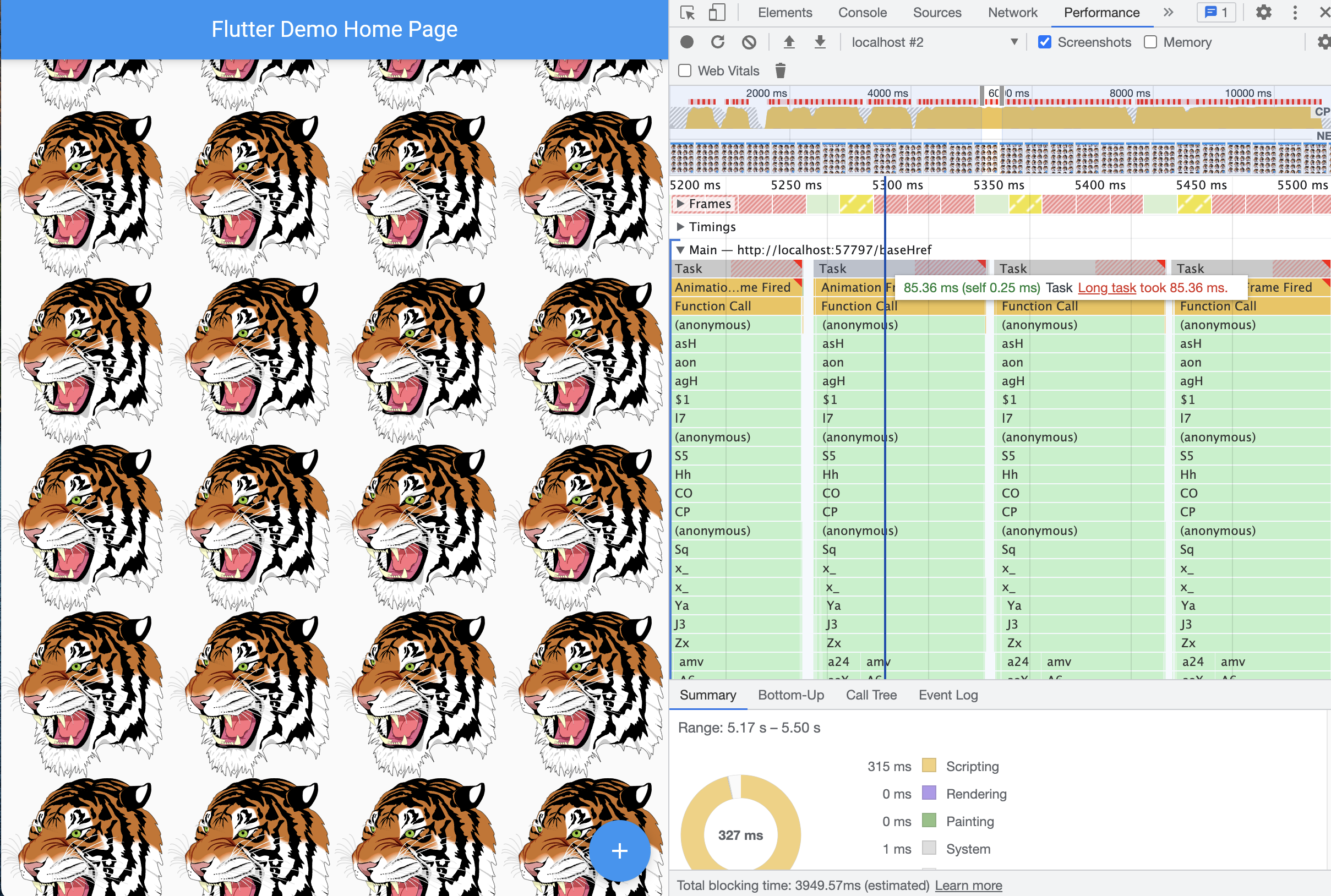

Render svgs with flutter_svg:

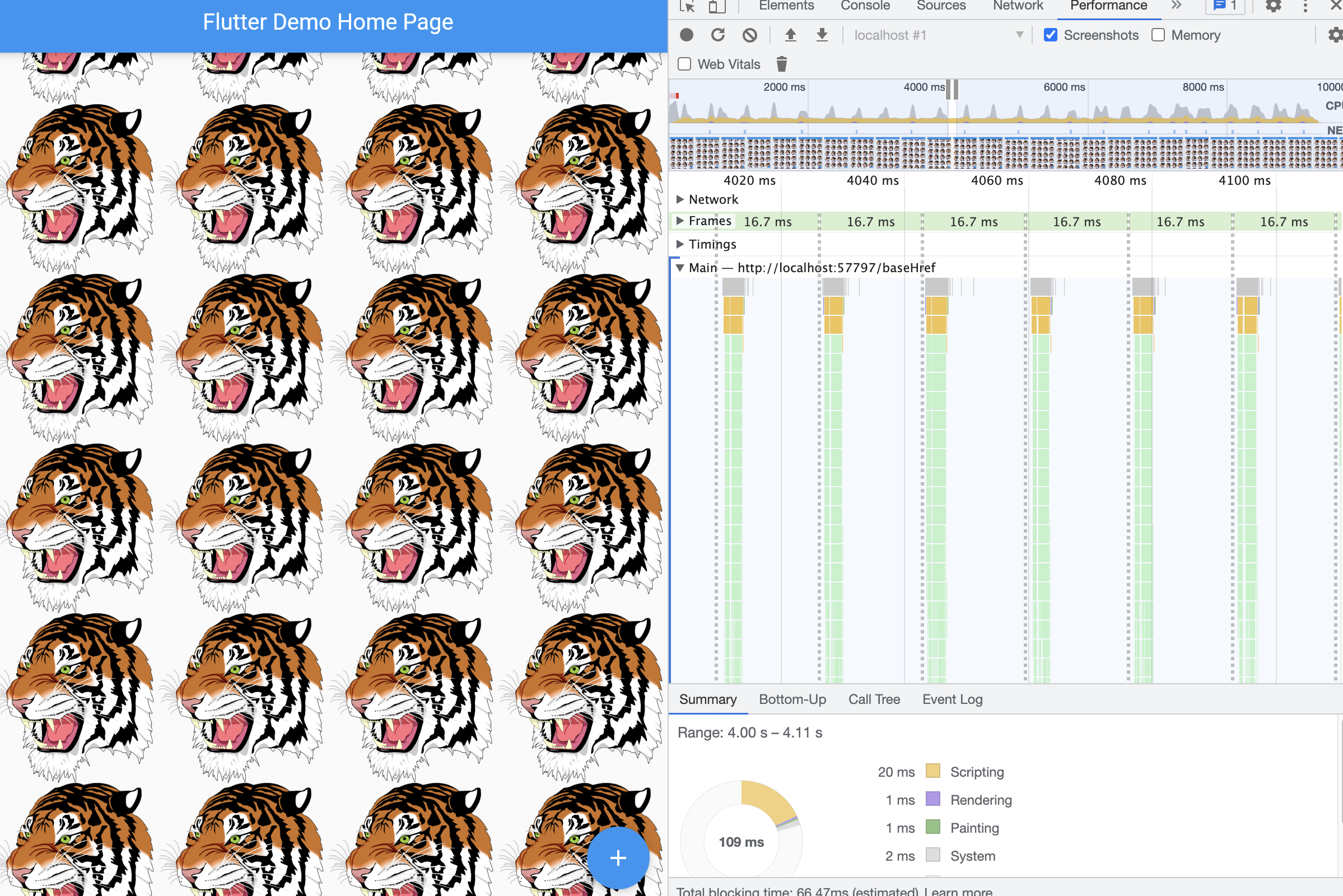

Render svgs with Texture and HTMLImageElement:

Implementing a Texture based Image widget with the new API:

import 'dart:html' as html;
import 'dart:ui' as ui;

import 'package:flutter/widgets.dart';

class TextureImage extends StatefulWidget {
  const TextureImage({super.key, required this.url});

  final String url;

  @override
  State<TextureImage> createState() => _TextureImageState();
}

class _TextureImageState extends State<TextureImage> {
  int? textureId;

  @override
  void initState() {
    final image = html.ImageElement(src: widget.url);

    image.onLoad.listen((_) {
      setState(() {
        textureId = ui.textureRegistry.registerTexture(image);
      });
    });

    super.initState();
  }

  @override
  void dispose() {
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return textureId != null ? Texture(textureId: textureId!) : const SizedBox();
  }
}

[skia-gold]

Gold has detected about 72 new digest(s) on patchset 6.
View them at https://flutter-engine-gold.skia.org/cl/github/37890

[skreborn]

I've built this on my local machine and it seems to work flawlessly so far. Great work, and something the engine has been sorely lacking for our purposes.

[flutter-dashboard]

This pull request executed golden file tests, but it has not been updated in a while (20+ days). Test results from Gold expire after as many days, so this pull request will need to be updated with a fresh commit in order to get results from Gold.

[kevmoo]

@xtyxtyx – would you rebase and push a new commit? Just to get new goldens would be great!

[yjbanov]

Sorry for the delayed review. Thank you for the contribution! This is not far from being submittable.

[yjbanov]

We are working on removing web-specific API from dart:ui because it confuses compilers and code analyzers. Instead, we expose API through JS-interop. Let's consult with @ditman on how best to do this for textures. We might want to do it in a way that's easy to expose through flutter.js API.

[ditman]

Realistically we don't have a good place to put this in a way that is ergonomic for users to use (and a workaround for the analyzer to freak out less when using these web-only APIs).

In practice, the API surface of dart:ui has barely changed in the last couple of years, and adding one more object to the mix is not too bad.

@yjbanov I think this can land in dart:ui, and whenever we come up with a better location for all these extra methods (dart:web_ui?), move them there. WDYT?

[skreborn]

@ditman Is there any way we could have two separate, clearly named libraries in the future, something like dart:native_ui and dart:web_ui? I feel like dart:ui in and of itself has been a point of confusion for too long for those working with the web platform as a target. I would assume that for backwards compatibility (if necessary) dart:ui could just re-export (certain members of) one or both - much like Rust's std re-exports (almost?) all of the core package members.

Personally, I would love for these to be named in a way that clearly shows they're building blocks for Flutter, and not really useful on their own when using pure Dart, but that might be too big a deviation from the norm at this point. I don't know, for example, if it would be possible technically to implement packages prefixed with flutter, like flutter:native and flutter:web.

Long story short, I would appreciate a clear separation between Dart and Flutter, where one ends and the other begins, and the same for native and web targets. But I'm sure this isn't the place to discuss this in detail, so I'll be looking out for issues related to this in the future, if any.

[ditman]

@skreborn you're not alone, and this is such a big change that you'll know when it's coming for sure! The decision of making the flutter engine (dart:ui) a dart library predates me, by years! I guess it's because the engine needs some extra help from the Dart compilers, but I haven't dug too deep.

(I'd be happy if we could get to a point where dart:ui does not have anything web-specific, and dart:web_ui (or whatever its final name is) has only web-specific things, so it's clear from your imports if you're calling web-only APIs. Not sure what needs to be done for that to happen, haven't looked into the structural bits of the code yet!)

[ditman]

PS: We now have a dart:ui_web package for things like this 😅

Thank @eyebrowsoffire and @mdebbar!

• https://github.com/flutter/engine/tree/main/lib/web_ui/lib/ui_web/src

[yjbanov]

I'm wondering if accepting all possible texture sources is future-proof enough. In particular, Skwasm will move to a multi-threaded rendering model where GPU work will be done through an OffscreenCanvas in a web worker. I'm not sure if in that model we can use <img> elements as texture sources since there's no DOM in web workers. Maybe there's a way to first convert <img> to something that's transferable, such as VideoFrame, and then send it to the worker? cc @eyebrowsoffire for guidance.

[eyebrowsoffire]

The issue you bring up is something that I'm going to have to work out regardless of this change, and I haven't gotten to the point with the multi-threaded rendering where I have to decide how I'm going to solve it, but I think this should be fine. A VideoFrame can be constructed from an HTMLImageElement if we end up going that route: https://developer.mozilla.org/en-US/docs/Web/API/VideoFrame/VideoFrame

[jezell]

This is cool, but I can't help but think that this isn't really what the Texture element should be mapping to. A media element can be used to create a texture, but really is not the same thing as a texture.

Shouldn't this be using makeImageFromTexture(tex: WebGLTexture, info: ImageInfo): Image | null; and accepting webGL textures directly? What if, for example, I want to integrate flutter with ThreeJS, where ThreeJS is tied to the same WebGL context and rendering into a WebGL texture?

Accepting a MediaElement in registerTexture certainly doesn't prevent this method from also accepting WebGL textures being passed to registerTexture, but it's a bit higher level than a texture and doesn't really solve the max web GL context problem, since anyone attempting to build widgets that use actual WebGL textures directly would still be forced to burn additional contexts and make more canvas elements to do so.

[xtyxtyx]

Shouldn't this be using makeImageFromTexture(tex: WebGLTexture, info: ImageInfo): Image | null; and accepting webGL textures directly? What if, for example, I want to integrate flutter with ThreeJS, where ThreeJS is tied to the same WebGL context and rendering into a WebGL texture?

Is it possible for Skia and ThreeJS to share the same WebGL context? Won't they compete to alter the WebGL state and cause rendering problems?

Also is there a way to pass a WebGL texture to makeImageFromTexture? The d.ts file says that makeImageFromTexture can only accept TypedArray | HTMLImageElement | HTMLVideoElement | ImageData | ImageBitmap.

[jezell]

It looks like makeImageFromTexture says it accepts a WebGLTexture here:

https://github.com/google/skia/blob/main/modules/canvaskit/npm_build/types/index.d.ts

It's certainly possible to share a WebGL context with multiple libraries. In this case you wouldn't want to have both rendering directly the canvas, but you could have Three.JS render into a frame buffer and then using that frame buffer as a texture that you pass to Skia. Since you can't share textures across WebGL contexts, that's really the only way you could ever really take advantage of the native textures using the Texture element.

.[resetState](https://threejs.org/docs/index.html#api/en/renderers/WebGLRenderer.resetState) () : undefined
Can be used to reset the internal WebGL state. This method is mostly relevant for applications which share a single WebGL context across multiple WebGL libraries.

https://threejs.org/docs/#api/en/renderers/WebGLRenderer

That said, Three.js was just an example. Supporting raw textures would also allow for loading of MediaElements into the textures without having to go through the internal methods like lazyMakeImageFromTextureSource (that's what lazyMakeImageFromTextureSource is doing under the covers anyway):

https://developer.mozilla.org/en-US/docs/Web/API/WebGL_API/Tutorial/Using_textures_in_WebGL

I do think it's useful for the higher level APIs to be exposed, but all the Ck stuff should probably be moved into it's own package that can be imported directly if people want to do that. Being able to cast Canvas to CkCanvas in a CustomPainter for a web specific renderer would be a cleaner way to expose that, instead of making them use the Texture element, which should be lower level.

[xtyxtyx]

It's certainly possible to share a WebGL context with multiple libraries.

That's good to know. I was under the impression that it was not possible.

There is another problem if we go this way. When HtmlElementView appears in the widget tree, the canvaskit renderer will create muliple WebGL contexts as overlays. So there is no guarantee that the WebGL context behind the current Flutter Canvas is the same one that Flutter or Three.js initially used.

It seems possible to use CanvasKit.MakeRenderTarget and Surface.makeImageSnapshot to create textures that are safe to render to arbitrary WebGL contexts. But I'm not sure if this can be used as a workaround for the problem above.

[flutter-dashboard]

Golden file changes have been found for this pull request. Click here to view and triage (e.g. because this is an intentional change).

If you are still iterating on this change and are not ready to resolve the images on the Flutter Gold dashboard, consider marking this PR as a draft pull request above. You will still be able to view image results on the dashboard, commenting will be silenced, and the check will not try to resolve itself until marked ready for review.

Changes reported for pull request #37890 at sha c726e29

[jezell]

There is another problem if we go this way. When HtmlElementView appears in the widget tree, the canvaskit renderer will create muliple WebGL contexts as overlays. So there is no guarantee that the WebGL context behind the current Flutter Canvas is the same one that Flutter or Three.js initially used.

Well I think that's actually THE problem. Because all this stuff is internal and hidden in the plugin, there is currently no way to know what canvas to use when trying to get access to the correct webGL context. But it's right there as a property of the Surface that is used to create the Canvas for the render frame. It's not that it can't be known so much as that there aren't currently any hooks to know. I think the only way to really allow a useful implementation of Texture on the web is to solve that problem, because you need access to the WebGL context if you want to do anything with native Textures on web. I don't think it's a hard problem to solve, just requires a package somewhere that can be imported and a cast. Maybe something like:

import "package:flutter_web_interop/canvas.dart";

void Paint(Canvas c) {

var glCanvas = canvas as WebGlCanvas;
var htmlCanvas = glCanvas.htmlCanvas;
// boom, you are good to go
}

[jezell]

I think the only way to really allow a useful implementation of Texture on the web is to solve that problem, because you need access to the WebGL context if you want to do anything with native Textures on web.

On iOS there is the FlutterTexture protocol which implementers can implement to be able to use the TextureRegistry (https://api.flutter.dev/objcdoc/Protocols/FlutterTexture.html). Perhaps another way to solve the problem would be to do something similar and have an abstract class that must be implemented and passed to the TextureRegistry when registering the texture?

// web_ui/texture.dart -- looks like the current idea is for this kind of thing to be in web_ui package?

class TextureContext {
     final CanvasElement canvas;
     final WebGLRenderingContext gl;
}

class ImageInfo {
    final AlphaType alphaType;
    final ColorSpace colorSpace;
    final ColorType colorType;
    final int height;
    final int width;
}

abstract class FlutterTexture {
   FlutterTexture(this.info);

   final ImageInfo info;

   void copy(TextureContext context, WebGLTexture destination);
}

From here a user could manually do whatever they need to their texture using the standard WebGL apis, and SkSurface.makeImageFromTexture can be used to get it into CanvasKit. This is probably a better mapping to how things work on the other platforms with regard to textures.

[jezell]

This is probably a better mapping to how things work on the other platforms with regard to textures.

Maybe then MediaElementTexture could be implemented on top of this FlutterTexture. This would provide an easy way to use Image/Video elements as Texture sources to make things like performant rendering of SVGs, while still providing the low level hooks needed for libraries like Three.JS or Pixi.JS to efficiently render into Texture elements without burning up those limited WebGL contexts.

[yjbanov]

Yeah, let's hold off adding texture support until we know how to deal with multiple GL contexts. I see this resolving in a few ways:

• All browsers optimize WebGL to allow virtual GL context strategies.
• WebGPU ships, which keep render pipeline resources separate from render target (canvas being one possible render target).
• We add API to Skia that would allow us to transfer resources between GL contexts when necessary.
• Skia transfers resources across GL contexts automatically (not sure how this would work with external textures, which are presumably not owned by Skia).

[jezell]

MakeLazyImageFromTextureSource can already do what's needed for SVG and VideoFrames can't it? Maybe an alternative pathway could be simply to have a helper exposed in dart:web_ui that returns a CkImage and allows it to be updated similar to CkBrowserImageDecoder, but against html.MediaElement instead of a byte array. Not being able to render things like SVG or Video without introducing new GL contexts is a serious problem for us. Texture element is one potential way to solve it, but it's not the only one. That could allow the Texture implementation to be pushed out a bit, and is probably a better match for what this pull request was attempting to do.

[jezell]

@yjbanov what do you think about exposing a helper to create / update an Image from a media element somewhere as an alternative? We are basically stuck here. Either we move off Flutter, or we just can't do video conferencing with more than a couple participants due to the same issue. Not having any way currently to stop Flutter from creating additional webGL contexts and crashing the renderer is a huge problem for so many basic scenarios. We need some kind of escape hatch.

[jezell]

@xtyxtyx I believe these changes will also address the problem with SVGs, without needing to deal with the Texture widget at all by changing the rendering engine so that it doesn't require a new WebGL context for every platform view: #41562

[kevmoo]

Has this rotted?

[jezell]

@kevmoo no real progress from flutter team on this issue yet. Put together a proof of concept pull request to work around some problems (#41562), but no feedback on it so not sure if the team cares much about the problem. It's definitely a massive problem for us and seems bad to us that it's so easy to crash the renderer doing basic things, but we can work in a fork with the proof of concept if the team doesn't want to solve it. We definitely can't ship anything into prod with flutter web that uses the official flutter bits because of this.

[yjbanov]

This is mostly waiting for the results of the single GL context investigation that @hterkelsen is doing right now. Once we have a good understanding of how to manage GL contexts we should be able to fit this in. I'm thinking we should start with supporting ImageBitmap initially, because it's transferable to worker contexts. Since skwasm is rendering into an OffscreenCanvas from a worker, we want textures to be compatible with it.

[jezell]

@yjbanov renderer with single context #41562 with the z-index moving the layers behind and clearing canvas works great in our prototype, maybe not the best fit for non rectangular elements (for instance SVG with transparent backgrounds) where you'd need a mask to do the appropriate cut in many cases. Support for dart:html ImageBitmap would be a great fit for those cases, but I'd suggest MediaElement would be a better match since that's what the browser supports. Before Flutter we were doing this with VideoElement as well to render cameras into canvas elements. Video is such a pain to deal with properly in Flutter right now due to the multiple context issue and no support for rendering it into canvas either.

[Hixie]

@harryterkelsen @yjbanov what should happen with this PR?

[yjbanov]

This is still waiting for the single GL context design to land. Other than that the overall code looks OK.

[wanjm]

This is still waiting for the single GL context design to land. Other than that the overall code looks OK.

what is the progress of the design

[ditman]

Follow progress of the Single GL Context PR here:

• Use a single OffscreenCanvas for rendering in CanvasKit #42672

[jezell]

@Hixie @yjbanov still think this PR is the wrong approach to solve the SVG problem (vs just an image constructor that takes a media element), but don't see how #42672 would impact this much since it still will blow up when you reach an overlay limit. It seems to just give a different error for the same fundamental architectural problem in the renderer.

[eyebrowsoffire]

Just so that it's mentioned here too (we were discussing it in the other PR @jezell linked) I added an API recently that allows you to create a ui.Image from an ImageBitmap: #45256

One of the unit tests I added was specifically creating one from an SVG.

[jezell]

@eyebrowsoffire I think this commit should probably be closed due to #45256 landing. This change is just another way of implementing the same thing, not really a Texture implementation.

[xtyxtyx]

@eyebrowsoffire I think this commit should probably be closed due to #45256 landing. This change is just another way of implementing the same thing, not really a Texture implementation.

Agree. I feel createImageFromImageBitmap is a much better abstraction on the existing CanvasKit api. However I still have some concern about this:

1. Since browser's createImageBitmap is asynchronous, there is no guarantee an ImageBitmap can be obtained within the time of a frame. Should we make createImageFromImageBitmap to accept all kinds of object that texImage2D can? So we don't have to deal with async function call, and can avoid the potential risk of having multiple createImageBitmap calls on the fly when playing videos.
2. Another concern is about CanvasKit. It looks like MakeLazyImageFromTextureSource creates a new webgl texture each time it's called. Since Use a single OffscreenCanvas for rendering in CanvasKit #42672 has been merged, perhaps we can use Surface.makeImageFromTextureSource and Surface.updateTextureFromSource instead to avoid the redundant webgl createTexture call?

What's your idea about these? @eyebrowsoffire

[jezell]

@xtyxtyx Even if the call were synchronous, the textures get asynchronously uploaded to the graphics card by teximage2d, so there is definitely some delay when putting frames out. The promise resolve happens pretty immediately though, not sure what the reason was behind making the value a promise. Looks to me at first glance like it's pretty much always available right on the next microtask:
https://chromium.googlesource.com/chromium/src/+/7a1fd06507b3a2e4b33b521398e08147b4185a7d/third_party/WebKit/Source/core/imagebitmap/ImageBitmapSource.cpp

teximage2d can certainly accept the dom element directly and bypass that promise resolution (maybe Skia has a more direct call that does this), but not sure if it would make any difference in practice for how long it takes the texture to get uploaded to the GPU. We used to do something similar with video elements in pixi.js with video, here's what they do for reference, which works well enough in practice:

https://github.com/pixijs/pixijs/blob/6b480827aecbacb57a6f6b162131772bb1931d55/packages/core/src/textures/resources/BaseImageResource.ts

[jezell]

@xtyxtyx also note that videos have requestVideoFrameCallback to notify when a new frame is available, so for updating a video texture, the process would be something like request a video frame callback, createImageBitmap, request video frame callback, etc. so you already do have some waiting built into the process and some time for the promise to resolve between video frames already, but yeah if you didn't have to wait for a promise to resolve because the texture was being updated with the webgl calls directly from the DOM element, the code would be a little easier to deal with and you could definitely imagine the video maybe being a frame behind where it would be otherwise due to the promise resolution and a setstate after it's ready. Maybe there is a slightly easier variation of what createImageBitmap is doing. Certainly it's possible with the current browser APIs to skip the promise and do the same thing.

[xtyxtyx]

The promise resolve happens pretty immediately though, not sure what the reason was behind making the value a promise. Looks to me at first glance like it's pretty much always available right on the next microtask:

Chromium-based browsers have a fast path for this operation, but Firefox does not. In Firefox, such operation will always involve a GPU-to-CPU-to-GPU copy if you suspect it might. Here is a demo to show this:

---

Update: After carefully looking at the picture, I realised that createImageBitmap is not blocking in Firefox either. It's texImage2D that actually blocks.

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>

<body>
    <canvas id="canvas2d" width="2048" height="2048"></canvas>
    <canvas id="canvas3d" width="2048" height="2048"></canvas>

    <script>
        const canvas2d = document.getElementById('canvas2d');
        const ctx2d = canvas2d.getContext('2d');

        const canvas3d = document.getElementById('canvas3d');
        const ctx3d = canvas3d.getContext('webgl');
        ctx3d.clearColor(0, 0, 0, 1);
        ctx3d.clear(ctx3d.COLOR_BUFFER_BIT);

        const vertexShaderSource = `
            attribute vec4 a_position;
            void main() {
                gl_Position = a_position;
            }
        `;
        const fragmentShaderSource = `
            precision mediump float;
            uniform sampler2D u_image;
            uniform vec2 u_textureSize;
            uniform vec2 u_resolution;
            void main() {
                vec2 onePixel = vec2(1.0, 1.0) / u_textureSize;
                vec2 coord = gl_FragCoord.xy / u_resolution;
                vec4 color = texture2D(u_image, coord);
                gl_FragColor = color;
            }
        `;

        const program = ctx3d.createProgram();
        const vertexShader = ctx3d.createShader(ctx3d.VERTEX_SHADER);
        const fragmentShader = ctx3d.createShader(ctx3d.FRAGMENT_SHADER);
        ctx3d.shaderSource(vertexShader, vertexShaderSource);
        ctx3d.shaderSource(fragmentShader, fragmentShaderSource);
        ctx3d.compileShader(vertexShader);
        ctx3d.compileShader(fragmentShader);
        ctx3d.attachShader(program, vertexShader);
        ctx3d.attachShader(program, fragmentShader);
        ctx3d.linkProgram(program);
        ctx3d.useProgram(program);

        var frame = 0;

        async function copy2dTo3d() {
            ctx2d.clearRect(0, 0, canvas2d.width, canvas2d.height);
            ctx2d.fillStyle = 'red';
            ctx2d.font = '30px Arial';
            ctx2d.fillText(`frame: ${frame++}`, 10, 50);


            const bitmap = await createImageBitmap(canvas2d);

            const positionLocation = ctx3d.getAttribLocation(program, 'a_position');
            const positionBuffer = ctx3d.createBuffer();
            ctx3d.bindBuffer(ctx3d.ARRAY_BUFFER, positionBuffer);
            ctx3d.bufferData(ctx3d.ARRAY_BUFFER, new Float32Array([
                -1, -1,
                -1, 1,
                1, -1,
                1, -1,
                -1, 1,
                1, 1,
            ]), ctx3d.STATIC_DRAW);
            ctx3d.enableVertexAttribArray(positionLocation);
            ctx3d.vertexAttribPointer(positionLocation, 2, ctx3d.FLOAT, false, 0, 0);
            const texture = ctx3d.createTexture();
            ctx3d.bindTexture(ctx3d.TEXTURE_2D, texture);
            ctx3d.texImage2D(ctx3d.TEXTURE_2D, 0, ctx3d.RGBA, ctx3d.RGBA, ctx3d.UNSIGNED_BYTE, bitmap);
            ctx3d.texParameteri(ctx3d.TEXTURE_2D, ctx3d.TEXTURE_WRAP_S, ctx3d.CLAMP_TO_EDGE);
            ctx3d.texParameteri(ctx3d.TEXTURE_2D, ctx3d.TEXTURE_WRAP_T, ctx3d.CLAMP_TO_EDGE);
            ctx3d.texParameteri(ctx3d.TEXTURE_2D, ctx3d.TEXTURE_MIN_FILTER, ctx3d.NEAREST);
            ctx3d.texParameteri(ctx3d.TEXTURE_2D, ctx3d.TEXTURE_MAG_FILTER, ctx3d.NEAREST);
            const textureSizeLocation = ctx3d.getUniformLocation(program, 'u_textureSize');
            ctx3d.uniform2f(textureSizeLocation, bitmap.width, bitmap.height);
            const resolutionLocation = ctx3d.getUniformLocation(program, 'u_resolution');
            ctx3d.uniform2f(resolutionLocation, canvas3d.width, canvas3d.height);
            ctx3d.drawArrays(ctx3d.TRIANGLES, 0, 6);

            requestAnimationFrame(copy2dTo3d)
        }

        requestAnimationFrame(copy2dTo3d);
    </script>
</body>

</html>

[eyebrowsoffire]

This is good discussion. I will say I don't have all the answers here off the top of my head. I considered allowing types other than an ImageBitmap in the new API, and I'm still open to the idea actually, but I went with the most conservative route first to avoid complications.

ImageBitmap is always immutable, so the contract with the API is straightforward and obvious. The data that you pass becomes the ui.Image and there is no temporal relationship to worry about. Conversely, something like a HTMLVideoElement may have content that changes over time. With a lazy image, the actual call to texImage2d happens the first time the image is drawn or when we try to get the pixels of the image. This feels like weird behavior that the user probably doesn't want.

We could (for other non-ImageBitmap sources) call createImageBitmap ourselves at the moment the user passes the source into the API, but that also might not be what the user expects or wants. So basically for simplicity, I'm basically pushing this concern to the clients (for better or worse). We can of course revisit this, but I wanted to make an API that at least works for people right now who have static sources of image data they want to be able make into a ui.Image.

This is actually may be an argument for why the new createImageFromImageBitmap API doesn't completely cover all use cases that addTexture does. There is some notion of mutability with the freeze parameter of addTexture. If freeze is false, there is an expectation that any changes to the underlying image source will be reflected in the scene. As @xtyxtyx pointed out in #37890 (comment), the new createImageFromImageBitmap API creates a new texture every single time an image is created, but it could be more efficient to simply update the existing texture. This doesn't really work for ui.Image since it is basically inherently immutable, whereas addTexture seems to be structured in a way that might allow us to honor this optimization.

Another reason to actually support addTexture is for cross-platform support. Code from native platforms that already uses addTexture and relies on its semantics could be more easily ported over to the web, rather than rolling a completely separate implementation that deals in the web-specific API. There would still have to be some web-specific entry points for creating the textures from browser image sources, but it there may be more opportunity for shared code if they both use addTexture.

Another argument is simply convenience. While this isn't strictly necessary, having the engine deal with the mutability of the underlying image source for you and refreshing the contents of the texture is less work for clients, so I can see why it might be desirable.

On the other hand, I am hesitant to add a complex system for updating textures to the web engine unless there is a real concrete reason to do so. Code that is in the engine is likely to ship with everyone's apps whether they need it or not. Dart's tree-shaking helps with this, but in many cases (and I suspect in this case) it won't insightful enough to remove a lot of the machinery that deals with this updating. So all users end up paying the price (in binary size at least) for a feature that few will use. Conversely, if this can actually be done with a package, then the price is basically opt-in.

The other thing that concerns me is that I'm not sure that the engine will be able to know whether a texture needs to be updated, which will lead to redundant updates of the texture object. In contrast, the client code may have a higher level understanding of when the image source might actually need updating. Perhaps there is a way to special-case this in the engine for things like video elements, but again that's more complicated logic that people are paying for that most may not use.

The last complication I will mention is that in the Skwasm renderer, we are using a multi-threaded rendering strategy, which means the actual texImage2D call and all other subsequent WebGL calls that actually use the data happen on a web worker. For ImageBitmap, this is simple, because it's a transferable object. I can send it over to the web worker and then the web worker owns that ImageBitmap forever. This is not the case for all image sources, and it certainly isn't the case for an HTMLVideoElement. I can begin to imagine a sort of system that might deal with this and create ImageBitmap objects repeatedly under the hood that can transfer and update the texture objects on the web worker side, but it's definitely a big complication.

My general takeaway personally is that I'd like to see some experimentation with the simple ImageBitmap-based API first and see if it is effective enough for most people's use-cases. If we do find that there are still gaps that need the addTexture API, I think we could consider adding it, but we should do so in a way that actually bring tangible benefits over the ImageBitmap-based API. Specifically, I think we'd need to address the updating vs creating new WebGL textures issue. This PR doesn't address this, and in general I don't think this PR actually does anything that the client themselves could not do with the new API (since under the hood, this creates a new image on every update anyway).

Anyway, sorry for the mountain of text, this is just a brain dump of all my thoughts on the subject. I hope some of it is useful!

[jezell]

Updating the video_player package to use the new API could be a good test to see whether the new API is sufficient enough. I don't think it's a bad idea to support textures, but I do think that if textures are to be supported then it seems like the texture ID should map directly to a webGL texture, not some DOM object that can be used to create a texture. Why create a complicated system for managing and updating textures instead of just letting people use the APIs that already exist for creating and updating textures. Isn't that the real point of having Texture support?

[eyebrowsoffire]

I filed a follow on issue about the possibility of some way to have textures that can be updated: flutter/flutter#139271

But I think the work in this PR is superseded by the addition of the createImageFromImageBitmap, so I am going to go ahead and close it.
